INSTALLATION INSTRUCTION

Impulse 23W LEDme® Track Luminaires

H-LED820, L-LED820, J-LED820

CAUTION

• For Use with WAC “J”, “J2”,”L”, & ”H” track systems. Fixture may also be used on other manufacturers’ brands of track.

(Consult factory for compatibility)

• Read all instructions before installing.

Installation On Track:

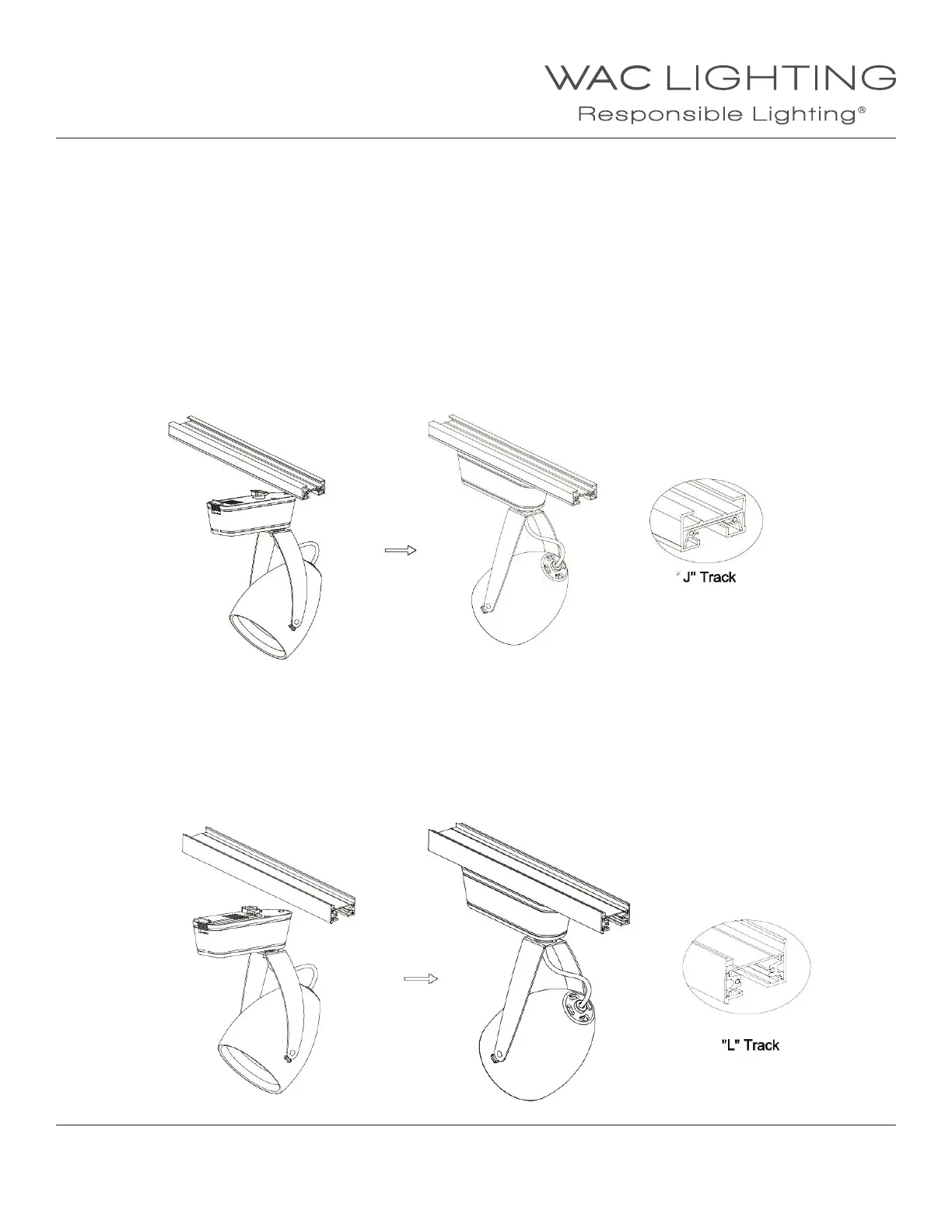

Fixture Installation for J-LED820

1. Fixtures are designed for use on “J” series WAC Lighting track only. They may also be used on other manufacturers’ brands of

track. (Consult factory for compatibility)

Note: The track has a groove running its length to indicate polarity, and the locking tab has an arrow

indicating locking direction.

2. Insert adapter into track slot and rotate it 90°. The arrow should point to the grooved side of the tack.

3. Make sure the locking tab seats properly on the track slot.

4. Reverse procedure to remove. Track heads may be positioned anywhere along the track.

FIXTURE INSTALLATION FOR LLED820

1. Fixtures are designed for use on “L” series WAC Lighting track only. They may also be used on other manufacturers’ brands of

track. (Consult factory for compatibility)

Note: The track has a ridge running its length to indicate polarity, and the locking tab has a slant for easy installation.

2. Insert adapter into track slot and rotate it 90° so that the low side of the locking tab faces the ridged side of the track.

3. Make sure the locking tabs seat properly in the track slot.

4. Reverse procedure to remove. Track heads may be positioned anywhere along the track.
