WAC Lighting

www.waclighting.com

Phone (800) 526.2588 • Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050

Phone (516) 515.5000 • Fax (516) 515.5050

Western Distribution Center

1750 Archibald Ave • Ontario, CA 91761

Phone (800) 526.2588 • Fax (800) 526.2585

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2014

INSTALLATION INSTRUCTION

2.5” Low Voltage - Metal Trim

HR-836

SAFETY INSTRUCTION

IMPORTANT: NEVER attempt any work without shutting o the electricity.

• Read all instructions before installing.

• This product must be installed in accordance with the applicable installation code by a person familiar with the construction

and operation of the product and the hazards involved.

• System is intended for installation in accordance with National Electric Code, and local regulations.

• Consult with local inspector to assure compliance.

• To reduce the risk of re, electrical shock and injuries to persons,turn o power at main switch before installing or modifying

the system.

• Warning: (Risk of re) do not install insulation within 3 inches of xture sides, or junction box, or in a manner to entrap heat.

• Retain instructions for future maintenance reference.

OVERVIEW

Trims t housings from the HR-800 series. Housing type and trim selection will determine maximum wattage;

consult catalog or spec sheet for compatibility

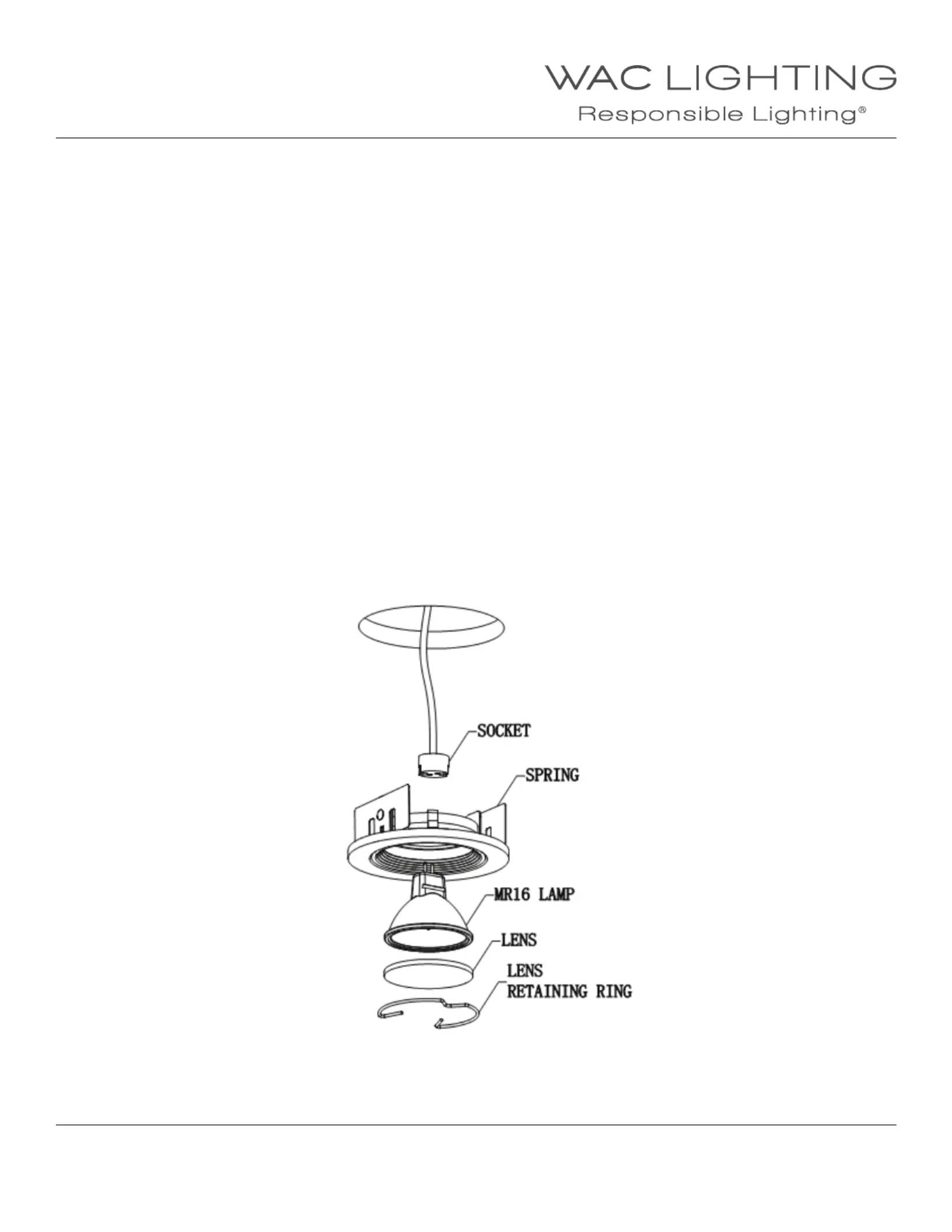

INSTALLING LAMP AND TRIM:

1. From the front of trim, insert the MR16 lamp followed by the clear glass lens, and secure with the lens retaining ring.

2. Push socket on to lamp pins.

3. Pressing the springs into the hole, until the trim ring is ush against the ceiling.
