INSTALLATION INSTRUCTION

4” Low Voltage - Non-IC New Construction

ElectronicHR-8402E

SAFETY INSTRUCTION

IMPORTANT: NEVER attempt any work without shutting o the electricity.

• Read all instructions before installing.

• For installation by a qualied electrician.

• System is intended for installation in accordance with National Electric Code, and local regulations.

Consult with local inspector to assure compliance.

• To reduce the risk of re, electrical shock and injuries to persons, turn o power at main switch before installing

or modifying the system.

• Warning: (Risk of re) do not install insulation within 3 inches of xture sides, or junction box, or in a manner to entrap heat.

• Retain instructions for future maintenance reference.

OVERVIEW

Housing is non-insulation, new construction type, and

50 watts maximum. Trim and housing combination will

determine maximum trim wattage. Housing requires a

trim from the HR-D8400 series, and lamp to be complete

(ordered separately). Supplied with an electronic transformer,

which may generally be used with an electronic

low voltage dimmer.

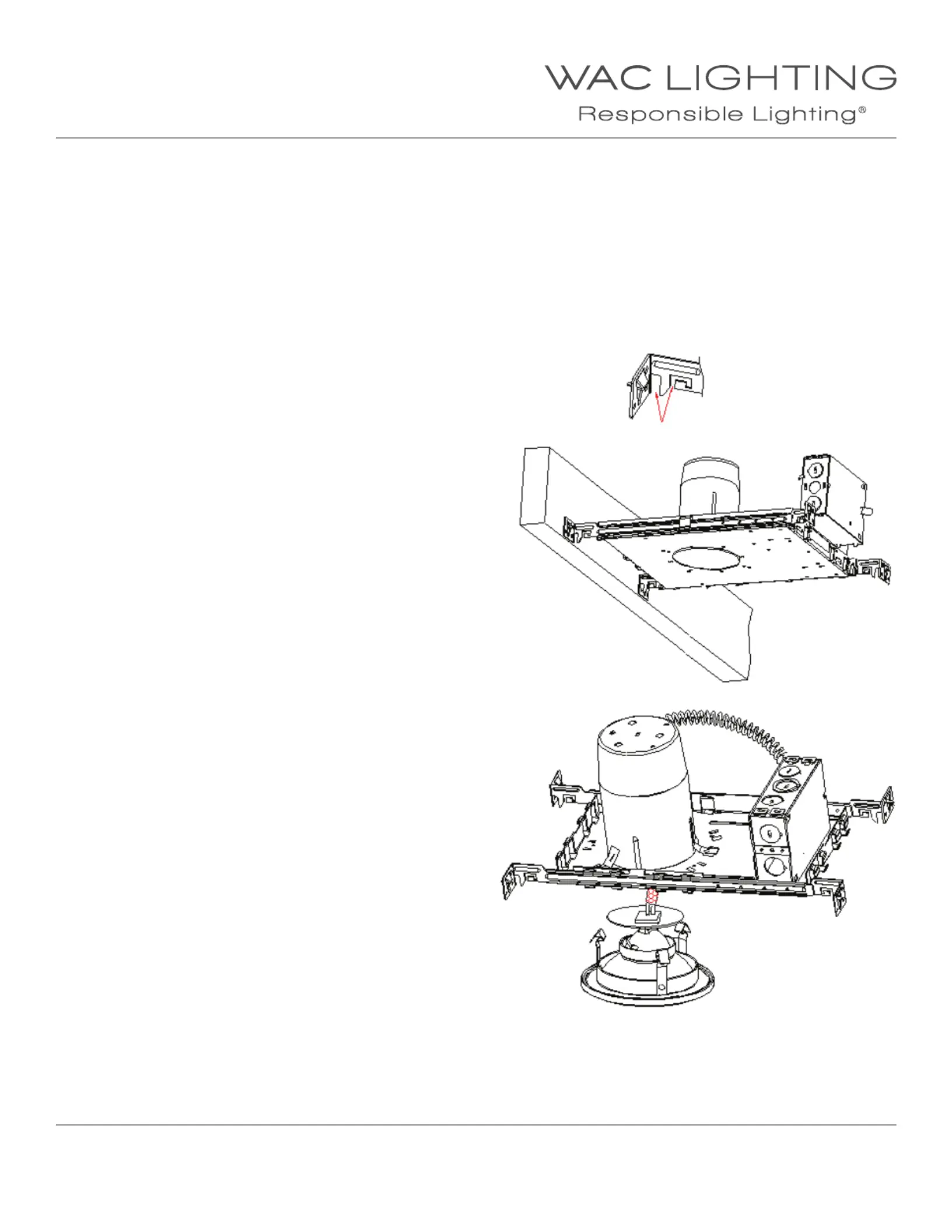

MOUNTING:

1. Housing is supplied with two hanger bars, (25” max).

Bars mount on all four sides, and are ruled for convenience.

Hanger bars are notched on the ends to t over “T” bars in

suspended ceilings. A locking tab may be bent under

the lip of the “T” bar or it can be secured with screws.

2. Align the bottom of the hanger bar with the bottom

of the wood joist.

3. Use mounting spikes to temporarily hold the housing,

then secure with screws or nails.

4. Junction box is suitable for branch wiring and is supplied

with trade size knockouts and integral Romex® connectors.

5. For Romex, pry open the knock out and push the wire

through the clamp plate inside.

6. Wire connections must be installed in a manner that does

no interfere with the strain relief action of the clamp.

WIRING:

1. Remove spring latched junction box door and connect xture

wires to building wires: Green ground wire to bare copper or

green building wire, white xture wire to white neutral wire,

black xture wire to (hot) black wire. Use wire nuts (supplied).

2. Replace junction box door.

FINISHING:

1. Socket wire is sucient in length to be attached to

the pins of the lamp before it is inserted.

2. Push the trim assembly up until the trim ring is ush to the ceiling.

Plain or locking slots for “T” bars
