INSTALLATION INSTRUCTION

703rack LuminairesLineVoltage T

H-, L-, J-TK703TK703TK703

CAUTION:

Read all instructions before installing.

Switch o power before installing or re-lamping.

Do not attempt to energize anything other than a track light xture.

All installation shall be in accordance with NEC and all local codes

OVERVIEW:

Fixtures are designed for use on WA“L” C , “H, ”“J” series track.

They may also be used on other manufacturers brand of track ’

(consult factory for compatibility).

LAMPING:

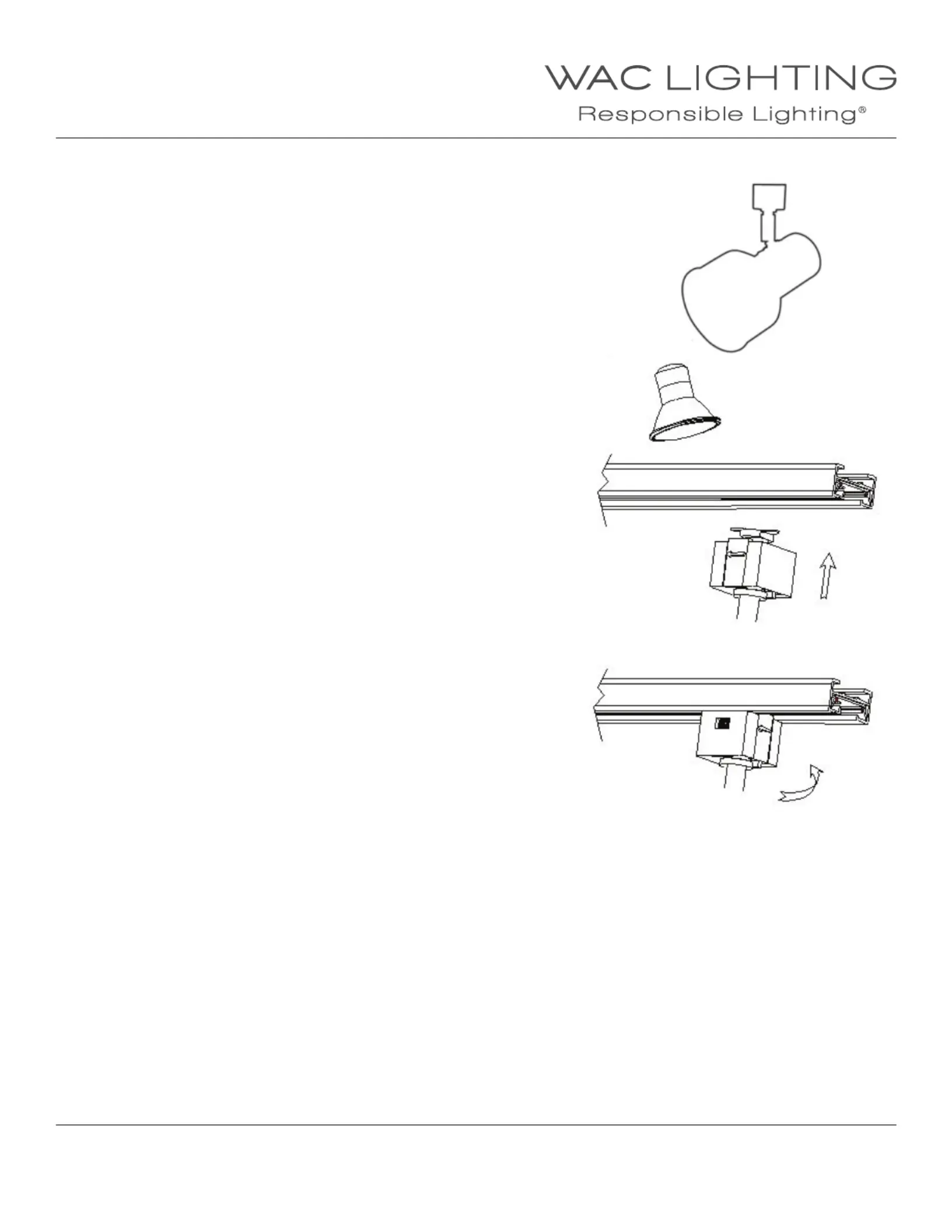

1.Install Lamp. See Specification sheet for compatible lamps.

2.Insert lamp into the shade so the lamp pins protrude

through the back.

3.Place pins in the socket holes and twist 1/4” to the right.

The lamp should feel rmly seated.

FIXTURE INSTALLATION

1.Note the track has a groove running it’s length to indicate polarity.

2.Note the arrow on the locking tab.

3.Insert adapter into track slot and rotate it 90 .The arrow should

point to the grooved side of the track.

4.Make sure the locking tab seats in the track slot.

5.Removal is the reverse procedure. Track heads may be positioned

anywhere along the track length.

Push, then twist lamp
