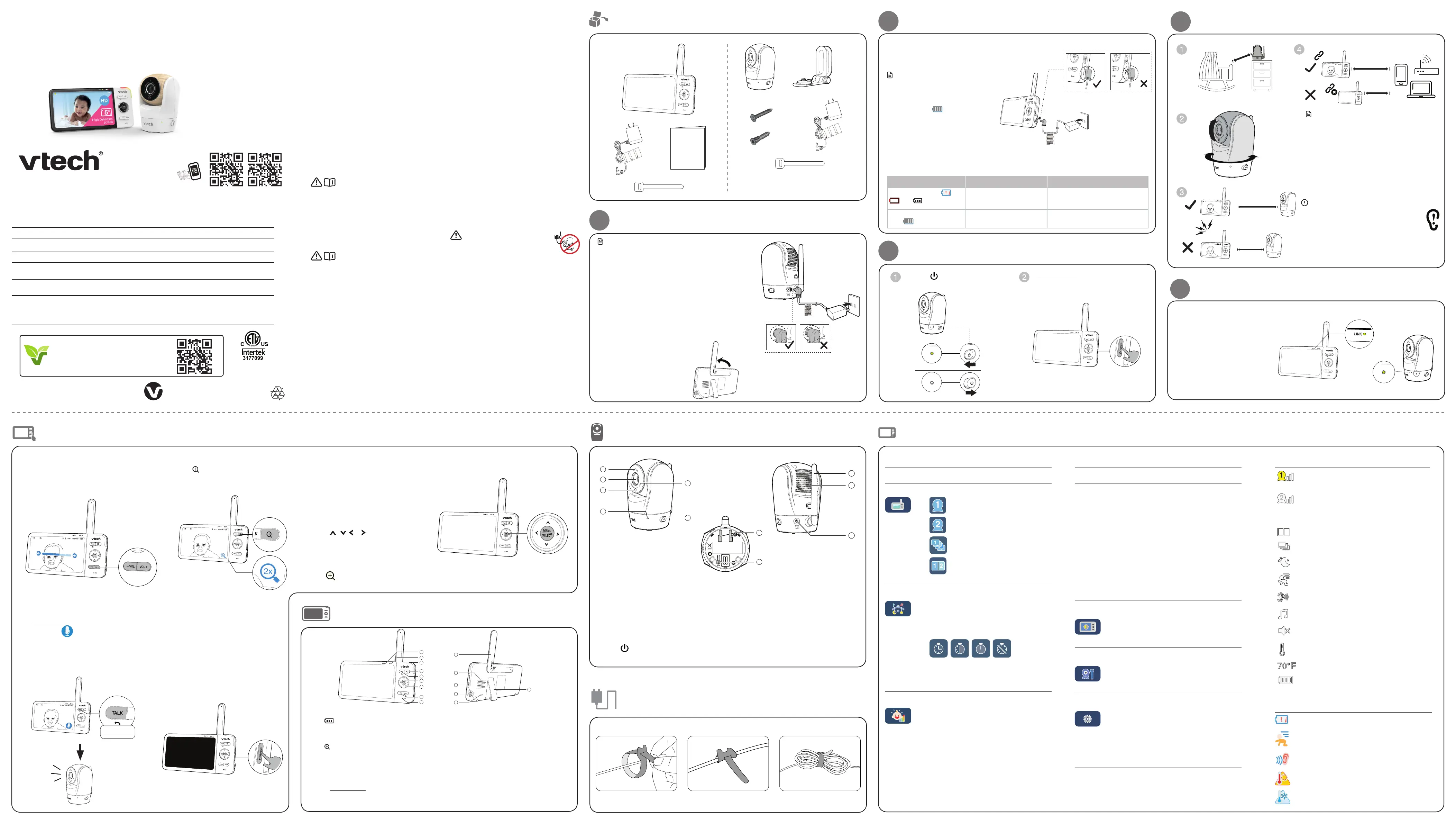

NOTESNOTE

• The rechargeable battery in the parent unit is built-in.

• Use only the power adapters supplied with this product.

• Make sure the parent unit and the baby unit are not connected

to the switch controlled electric outlets.

• Connect the power adapters in a vertical or floor mount position

only. The adapters’ prongs are not designed to hold the weight

of the parent unit and the baby unit, so do not connect them to

any ceiling, under-the-table, or cabinet outlets. Otherwise, the

adapters may not properly connect to the outlets.

• Make sure the parent unit, the baby unit and the power adapter

cords are out of reach of children.

• To maintain compliance with the FCC’s RF exposure guidelines,

place the baby unit at least 20cm from nearby persons.

Specifications are subject to change without notice.

© 2024 VTech Communications, Inc. All rights reserved.

07/24. VM928-XHD_QSG_V4.

VM928HD

VM928-2HD

Full Color Pan and Tilt

HD Video Monitor

Go to www.vtechphones.com

to register your product for enhanced

warranty support and the latest VTech

product news.

1

Connect the baby monitor

2

Power on or off the baby monitor

What’s in the box

4

Status check

Once you power on both your

baby unit and parent unit, your

parent unit displays image from

the baby unit, and the LINK LED

light turns on.

The green LED light of the

baby unit turns on.

3

Positioning the baby monitor

Caution

• The default volume of your parent unit is level

3, and the maximum volume is level 5. If you

experience feedback noise from your baby

monitor while positioning:

-Make sure your baby unit and parent unit are

more than 3 feet (1 meter) apart, OR

-Lower the volume of your parent unit.

NOTESNOTE

Note

• To avoid interference from other electronic

devices, place your baby monitor at least 3 feet

(1 meter) away from devices such as wireless

routers, microwave ovens, mobile phones and

computers.

Use the menu

Press MENUto enter the menu, choose a

menu item, or save a setting. You can use

the parent unit for advanced settings or

operations, such as to play or stop the baby

unit lullaby, or to adjust the baby unit sound

sensitivity.

While in the menu:

• Press , , or to scroll among the

menu options.

• Press SELECT to select an item, or to save

a setting.

• Press TALK to return to the live video.

• Press to go to the Help & info page.

Basic operation - Parent unit

Overview - Parent unit

Overview - Baby unit

Frequency controlCrystal controlled PLL synthesizer

Transmit frequencyBaby unit: 2.405-2.475GHz

Channels32

LCD5’’ Color LCD

(IPS 1280x720 pixels)

Nominal effective rangeMaximum power allowed by FCC and IC. Actual operating range may vary

according to environmental conditions at the time of use.

Power requirementsParent unit: 3.7V 5000mAh, 18.5Wh Lithium-ion battery

Baby unit power adapter: Output: 5V DC @ 1A

Parent unit power adapter: Output: 5V DC @ 2A

Technical specications

Important safety instructions

1LINK LED light

2

Battery LED light

33- level sound indicator

light

4

• Press to zoom in/out.

• When in the main menu,

press to go to the

Help & Info page.

5TALK

• Press and hold to talk to

the baby unit.

• While in a submenu,

press to exit.

6Arrow keys

7MENU/SELECT

• Press to enter the main

menu.

• While in a menu, press to

choose an item, or save a

setting.

8- VOL/ VOL +

• Increase or decrease

parent unit’s volume.

9Microphone

10Antenna

11Speaker

12POWER key

13Power jack

14RESET

• Force reboot the parent

unit.

15Stand

1Microphone

2Camera lens

3Light sensor

4LED indicator

5Infrared LEDs

6

Power switch

7Antenna

8Speaker

9Power jack

10Wall mount slots

11Pair button

1 set for VM928HD

2 sets for VM928-2HD

Parent unit icons

Main menu

Monitoring mode (For VM928-2HD only)

• Baby unit 1 in Single mode

• Baby unit 2 in Single mode

• Patrol mode

• Split mode

Melodies and soothing sounds

Melodies and Soothing Sounds

• Select play all melodies, or play one of the

five melodies and four soothing sounds.

Timer

• You can also set the timer to stop playing

after 15, 30 or 60 minutes, or playing non-

stop.

Alerts - Sound, motion and temperature

Sound

• Select sound Sensitivity level.

• Turn on/off Sound Detection Alert.

• Turn on/off Auto Wake Up function.

(See Sound Detection and Auto Wake Up

section)

Motion

• Turn on/off Motion Alert.

• Select motion Sensitivity level.

(See Motion Detection section)

Main menu

Temperature

• Turn on/off Temperature Alert.

Set the parent unit to beep whenever the

room temperature detected by the baby

unit falls outside of the set temperature

range.

• Select Minimum temperature for alert

range.

• Select Maximum temperature for alert

range.

• Select temperature Format.

Set temperature display in Fahrenheit (

o

F)

or Celsius (

o

C

).

Parent unit settings

• Adjust parent unit screen Brightness.

• Turn on/off Dim Mode.

Baby unit settings

• Turn on/off baby unit’s Status LED.

• Adjust baby unit’s speaker Volume.

General settings

• Turn on/off Low Battery Alert Tone.

Set the parent unit to beep when the

battery is low.

• Turn on/off No Link Alert Tone.

Set the parent unit to beep when the link

between the parent unit and the baby unit

is lost.

Main menu icons

Quick start guide

VM928HD

VM928-2HD

For more support information

S

m

x 2

x 2

Quick start guide

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least three feet

away from the child at all times. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’utilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

Charge the parent unit battery before use

When you have connected and

turned on the parent unit, the battery

will be charged automatically.

NOTESNOTE

Notes

• Before using the baby monitor for the

first time, charge the parent unit battery

for 12 hours. When the parent unit

battery is fully charged, the battery icon

becomes solid .

• It takes longer to charge the battery

when the parent unit is turned on. To

shorten the charging time, turn the

parent unit off while charging.

• The standby time varies depending on

the sensitivity level you set, your actual

use and the age of the battery.

The battery icon indicates the battery status (see the following table).

Battery indicatorsBattery statusAction

The screen displays and

. The light flashes.

The battery has very little

charge and may be used for

only a short time.

Charge

without interruption

(about

30 minutes).

The battery icon becomes

solid .

The battery is fully charged.To keep the battery charged, connect

it to AC power when in use.

Slide the power switch to power

on or off your baby unit.

Press and hold

POWER

to turn it on

or off.

Raise the parent unit antenna

for better reception

1

Connect the baby monitor (Cont’d)

> 3ft (1m)

≥

<

3ft (1m)

3ft (1m)

﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏

﹏﹏﹏

﹏﹏﹏﹏

﹏﹏﹏﹏

﹏﹏﹏﹏

﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏

Adjust speaker volume

Press - VOL/ VOL + to adjust your parent unit

speaker volume. It determines the volume of

sound transmitted from your baby unit.

Zoom

Press to zoom in or out.

Talk to your baby via the baby unit

1. Press and hold the TALK key.

2. When the icon displays on screen,

speak to your parent unit. Your voice is

transmitted to the baby unit.

3. When finish talking, release

the TALK key and hear your baby again.

Press and hold

Turn on/off the parent unit screen

You can turn on or off the parent unit

screen without powering off the parent

unit. You can still hear sound from the

baby unit.

• Press POWER on the parent unit to

turn off the screen.

• Press any keys on the parent unit to

turn on the screen again.

2

1

3

4

5

6

7

8

9

15

12

11

10

13

14

1

6

2

3

5

7

8

9

4

11

10

1

6

2

3

5

7

8

9

4

11

10

or

Current view status

• The baby unit number that is being viewed

when in:

-Single CAM mode.

-Patrol mode (* For VM928-2HD only).

-Split mode (* For VM928-2HD only).

Split mode (* For VM928-2HD only)

Patrol mode (* For VM928-2HD only)

Night vision feature is activated automatically.

Motion alert is turned on.

Sound detection alert is turned on.

Melodies or soothing sound are turned on.

Parent unit speaker is muted.

Temperature alert is turned on.

Real-time temperature indicator

Battery status indicator

Status icons

Alert icons

• Displays when parent unit’s battery is low

and needs charging.

• Displays when motion is detected at a baby

unit.

• Displays when sound is detected at a baby

unit.

• Baby unit detects temperature exceeds the

set maximum.

• Baby unit detects temperature is lower than

the set minimum.

The applied nameplate is located at the bottom of the baby unit base.

When in use, basic safety precautions should always be followed

to reduce the risk of fire, electric shock and injury, including the

following:

1. Follow all warnings and instructions marked on the product.

2. Adult setup is required.

3. CAUTION: Do not install the baby unit at a height above 6.5 feet

(2 meters).

4. This product is intended as an aid. It is not a substitute for

responsible and proper adult supervision and should not be

used as such.

5. This product is not intended for use as a medical monitor.

6. Do not use this product near water, for example, near to a bath,

sink, swimming pool or shower.

7. CAUTION: Use only the internally, non-user replaceable battery

fitted to the parent unit. There may be a risk of explosion if a

wrong type of battery is used for the parent unit. The battery

cannot be subjected to high or low extreme temperature and

low air pressure at high altitude during use, storage or transpor-

tation. Disposal of batteries in fire or a hot oven, mechanically

crushing or cutting the battery can result in an explosion. Sub-

jecting products or batteries to an extremely high temperture

environment can result in explosion or leakage of flammable

liquids, or gas. Products or batteries subjected to extremely low

air pressures may result in explosion or leakage of flammable

liquids, or gas. Dispose of used batteries according to the infor-

mation in The RBRC seal.

8. Use only the power adapters supplied with this product. Incor-

rect power adapter polarity or voltage can seriously damage

the product.

Power adapter information:

Baby Unit Output: 5V DC 1A

VTech Telecommunications Ltd.

Model: VT05EUS05100

-OR-

Jiangxi Jian Aohai Technology Co., Ltd.

Model: A318-050100W-US2

Parent Unit Output: 5V DC 2A

VTech Telecommunications Ltd.

Model: VT07EUS05200

-OR-

Jiangxi Jian Aohai Technology Co., Ltd.

Model: A938-050200W-US1

Rechargeable battery information:

3.7V 5000mAh, 18.5Wh Lithium-ion Battery

Zhuhai Great Power Energy Co., Ltd.

Model: GSP806090-5Ah-3.7V-1S1P

9. The power adapter is intended to be correctly oriented in a

vertical or floor mount position. The prongs are not designed

to hold the plug in place if it is plugged into a ceiling, un-

der-the-table or cabinet outlet.

10. For pluggable equipment, the socket-outlet (power adapter)

should be installed near the equipment and should be easily

accessible.

11. Unplug this product from the wall outlet before cleaning.

Do not use liquid or aerosol cleaners. Use a damp cloth for

cleaning.

12. Do not modify the power adaptors or replace with other

third-party adaptors.

13. Do not allow anything to rest on the power cords. Do not install

this product where the cords may be walked on or damaged.

14. The product should only be operated from a power source indi-

cated on the power adaptor label or marking. If you are unsure

of the type of power supply in your home, consult your dealer

or electricity supply provider.

15. Do not overload wall outlets or use an extension cord.

16. Do not place this product on an unstable table, shelf, stand or

other unstable surfaces.

17. This product should not be placed in any area where proper

ventilation is not provided. Any slots or openings in the back or

bottom of this product are provided for ventilation. To protect

from overheating, openings must not be blocked by placing

the product on a soft surface such as a bed, sofa or rug. This

product should never be placed near or over a radiator or heat

source.

18. Never insert any objects through any aperatures or slots in the

product as this can be dangerous and cause damage to the battery

or other internal parts. Never spill any liquids on the product.

19. To reduce the risk of electric shock, do not disassemble this

product, but take it to an authorized service facility. Disas-

sembling or removing parts of the product other than battery

replacement via a battery door (if applicable) may expose

dangerous voltages or other risks.

20. You should test the sound reception every time you turn on the

units or move one of the components.

21. Periodically examine all components for damage.

22. There is a very low risk of privacy loss when using certain elec-

tronic devices, such as baby monitors, cordless telephones, etc.

To protect your privacy, make sure the product has never been

used before purchase, reset the baby monitor periodically by

powering off and then powering on the units, and power off

the baby monitor if you are not intending to use it for some

time.

23. Children should be supervised to ensure that they do not play

with the product.

24. The small parts of this monitor can be swallowed by babies or

small children. Keep these parts out of reach of children.

25. The product is not intended for use by persons (including chil-

dren) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a

person responsible for their safety.

SAVE THESE INSTRUCTIONS

Cautions

• Use and store the product at a temperature between 32

o

F (0

o

C)

and 104

o

F (40

o

C).

• Mishandling batteries can cause burn, fire or explosion hazards.

• Batteries should not be exposed to excessive heat such as bright

sunshine or fire.

• Do not expose the product to extreme cold, heat or direct sun-

light. Do not place the product close to a heating source.

• Warning—Strangulation Hazard—Children

have STRANGLED in cords. Keep this cord out of

the reach of children (more than 3 ft (0.9m) away).

Do not remove warning label on the adapter cord.

• Never place the camera unit(s) inside the baby’s crib or playpen.

Never cover the camera unit(s) or parent unit with anything such

as a towel or a blanket.

• Other electronic products can cause interference to your parent

unit and baby unit. Try installing your baby unit as far away as

possible from the following electronic devices: wireless routers,

radios, mobile telephones, intercoms, room monitors, televi-

sions, personal computers, kitchen appliances (e.g. microwave

ovens) and cordless telephones.

Precautions for users of implanted cardiac pacemakers

Cardiac pacemakers (applies only to digital cordless devices):

Wireless Technology Research, LLC (WTR), an independent

research entity, led a multidisciplinary evaluation of the

interference between portable wireless devices and implanted

cardiac pacemakers. Supported by the U.S. Food and Drug

Administration, WTR recommends to physicians that:

Pacemaker patients

• Should keep wireless devices at least six inches from the

pacemaker.

• Should NOT place wireless devices directly over the pacemaker,

such as in a breast pocket, when it is turned ON.

WTR’s evaluation did not identify any risk to bystanders with

pacemakers from other persons using wireless devices.

Electromagnetic elds (EMF)

This VTech product complies with all standards regarding

electromagnetic fields (EMF). If handled properly and according to

the instructions in this user’s manual, the product is safe to be used

based on scientific evidence available today.

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least three feet

away from the child at all times. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’utilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

1

6

11

10

2

3

5

7

8

9

4

< 1m

> 1m

> 3ft (1m)

< 3ft (1m)

UL STD.

62368-1

CERTIFIED TO

CSA STD.

C22.2 NO.62368-1

CONFORMS TO

Product Recycling

Recycle this product when you are done with it.

For more information, scan the QR code

or visit vtechphones.com/recycle.

CABLE MANAGEMENT

123

Product specificaties
