Revison History:

Rev. 1.0: Initial release

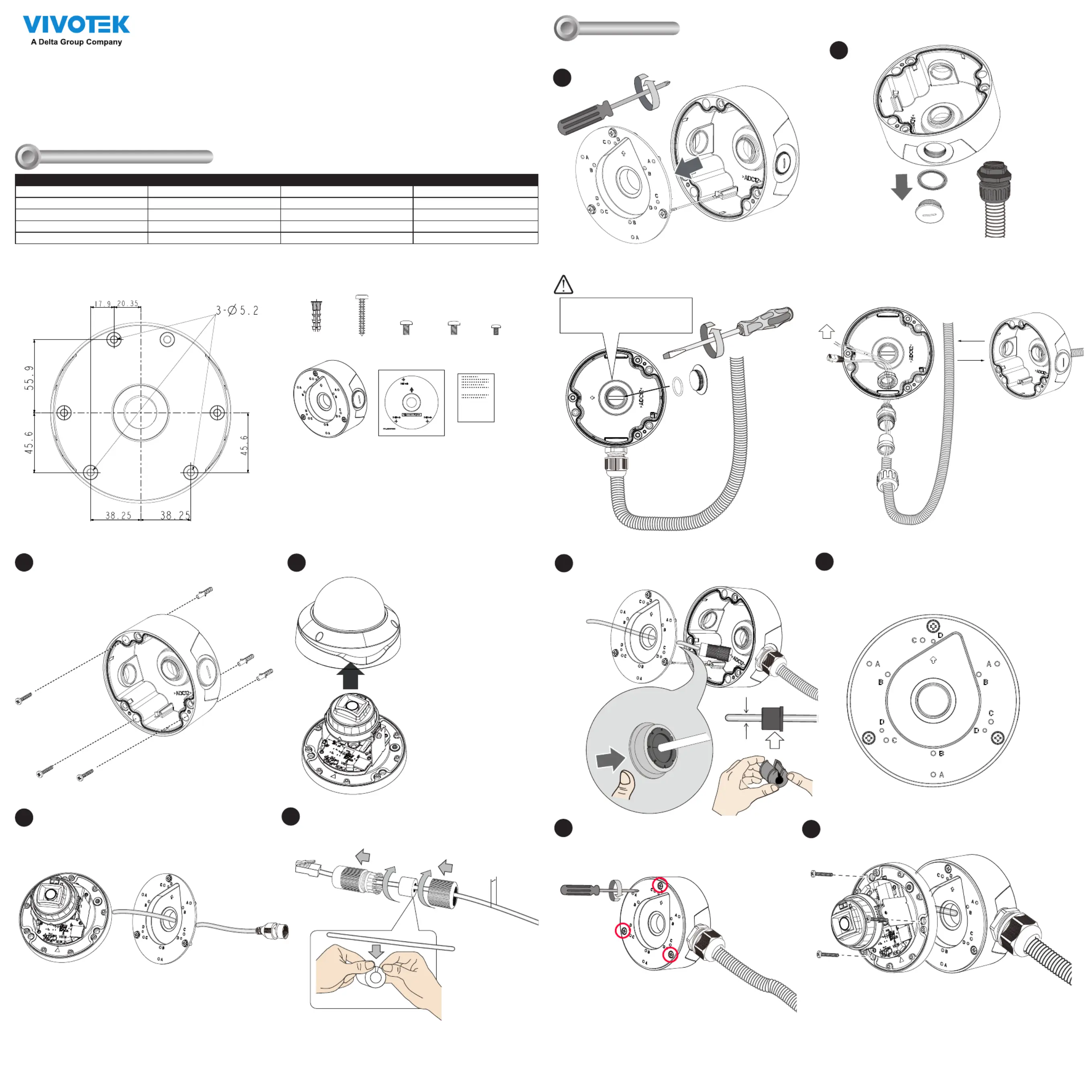

VIVOTEK Mounting Accessories

AM-71B_V02 Conduit Box

Installation Guide

Mounting Dimensions

Installation

II

Compatible VIVOTEK Cameras

I

A 3/4" conduit is required for routing the cables with waterproof

connection.

Remove the top cover.

Install the cable gland and pass cables through it.

Loosen and remove the camera top cover. (Using one of

the supported cameras as an example)

Pass the camera's Ethernet cable through the center hole of

the box and the rubber seal.

1

2

4

5

6

7

8

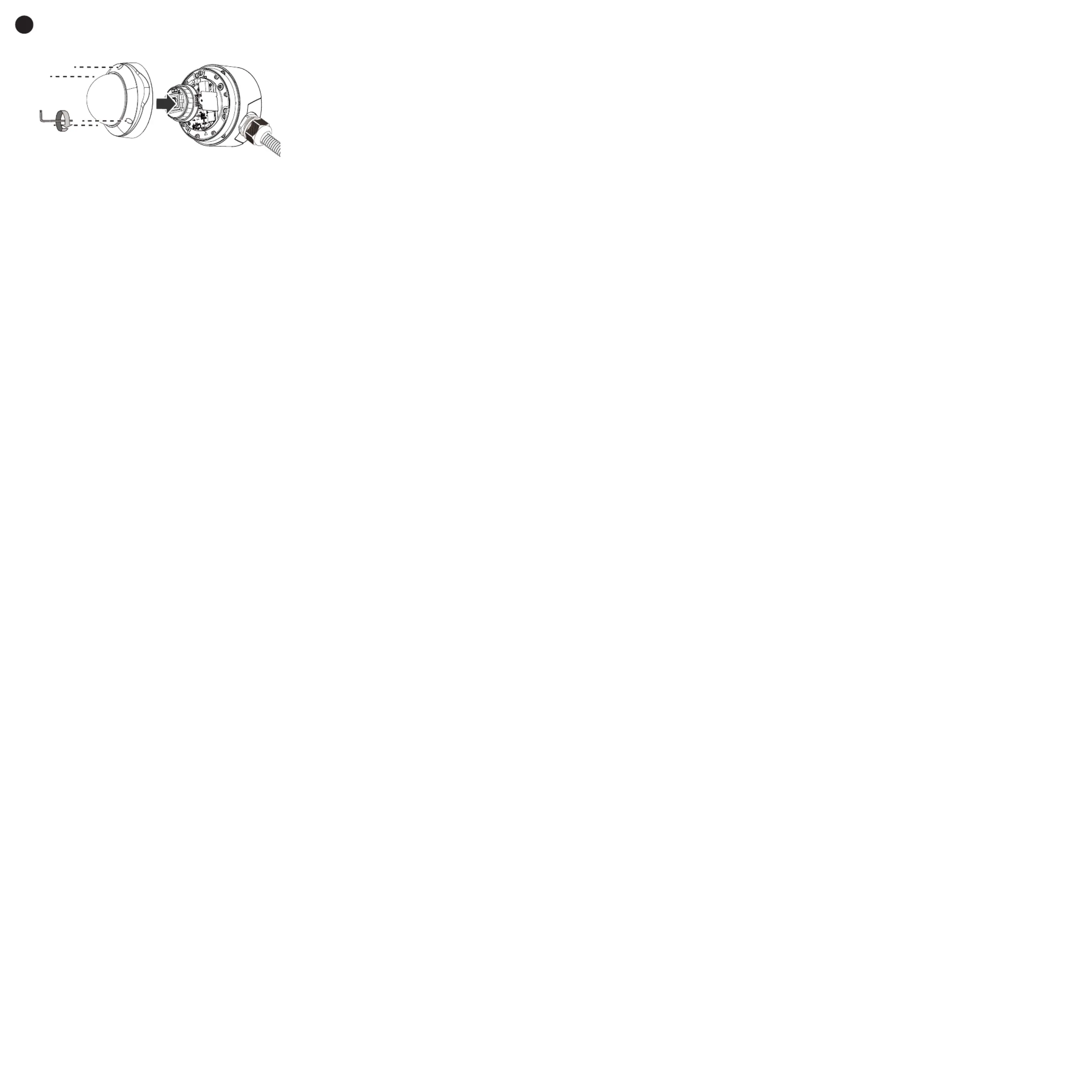

Install the camera using the corresponding mounting holes.

Part no.: 5019042700

Accessory Ordering part no.: VIO100220401

Package Contents

A

: FD9389 series, FD9368-HTV, FD9388-HTV

B

: IT9388-HT

C

: FD9360-H, FD9380-H

D:

IT9389-H-V2

5.5 ~ 6.4mm

5 ~ 6.3mm

Make sure the rubber seal is properly installed to the center

hole. The outer rim of the seal must be through and cover the

edge of the hole.

10

Install the waterproof components of the cable gland to your

Ethernet cable following the QIG of your camera. The cable

gland will be placed within the protection of the box.

If using the bottom hole,

seal the center hole.

OR

3/4”

9

Secure the top cover by fastening 3 cross-head screws.

Attach the included alignment sticker to a preferred position.

Drill holes on the wall and install the junction box. If space

behind the wall allows, you may also pass cables through the

wall.

3

Hole TypeApplicable CamerasScrewNo. of Screws

AFD9368-HTV, FD9388-HTVM4x103

AFD9389 seriesM4x83

BIT9388-HTM4x83

CFD9360-H, FD9380-HM4x83

DIT9389-H-V2M3x73

x3x3x3x3x3
