1. Install the switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.

2. Make sure the ventilation openings on the switch are not blocked.

3. DC input (24V~56VDC). Follow the printed polarity for V+, V-, and Ground.

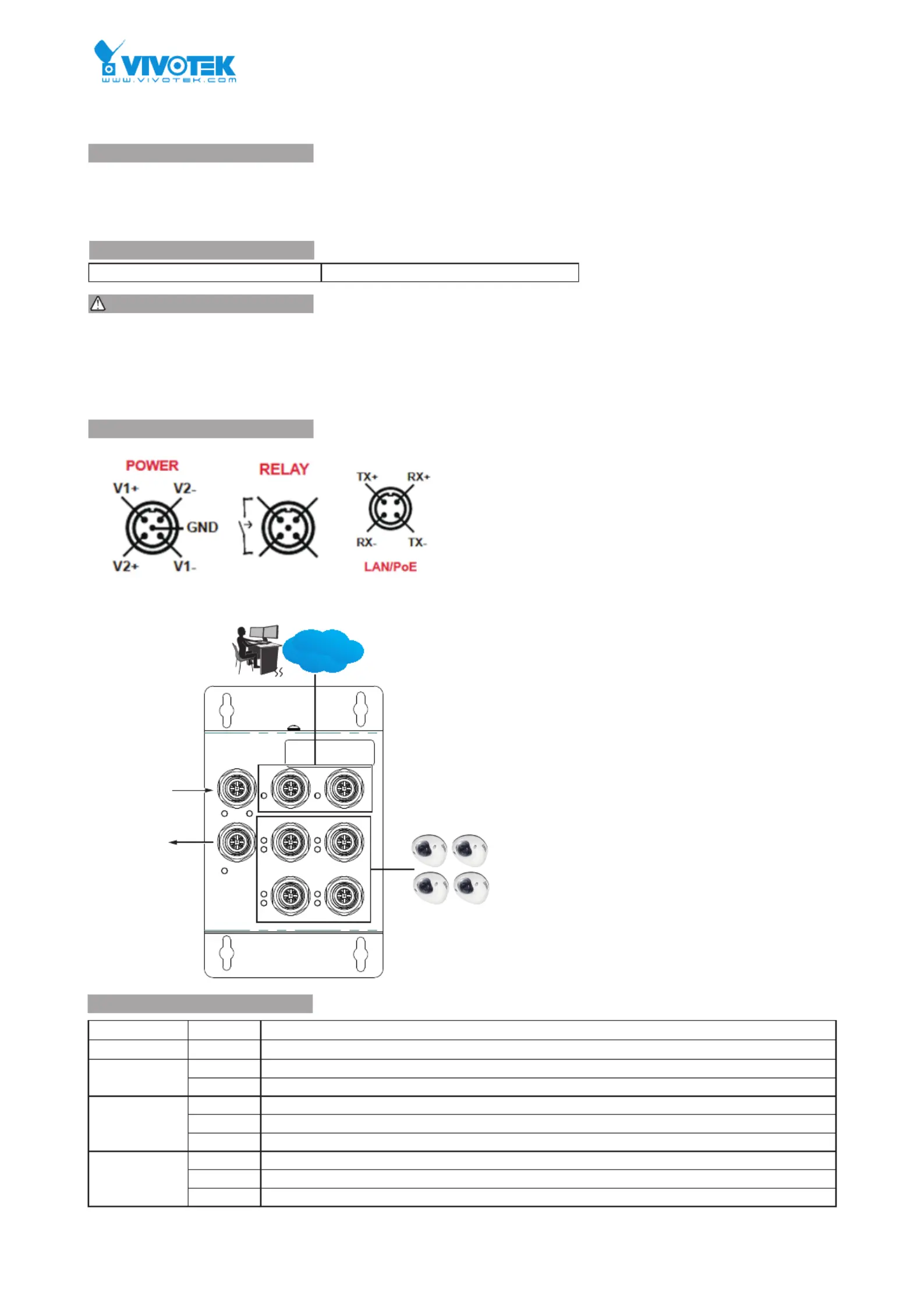

AW-IHT-0602 Industrial EN50155 M12 PoE Switch

Quick Installation Guide

The AW-IHT-0602 is a rugged M12 PoE switch designed for delivering a max. of 30 watts to powered devices. The uplink

port can be used to extend the connection to a remote site. With ruggedized and M12 connection design, it is t for IP

surveillance in transportation applications in critical environments. The machine features a total budget of 126 watts and

a wide range of operating temperatures ranging from -40°C to 75°C.

IMPORTANT:

INTRODUCTION

CONNECTION

* 1x PoE switch* 1x Quick Installation Guide

PACKAGE CONTENTS

WARNING - Always ground the power source to maintain a clean power input.

LAN/WAN

VDC 24~56

Alarm output

PW1 ONWhen V1+ and V1- are connected.

PW2ONWhen V2+ and V2- are connected.

PW-FAIL

(Relay LED)

ONEither PW1 or PW2 is conncted.

OFFBoth PW1 or PW2 are connected.

LAN

(Data LED)

ONLink port is detected.

OFFLink port is not detected.

FlashingData is being transmitted or received.

PoE LED

- Green

ONPD is detected.

OFFPD is not detected.

FlashingPort is active, or current is over-loading.

LED DEFINITIONS
