VITEKCCTV.COM

(888) VITEK-70

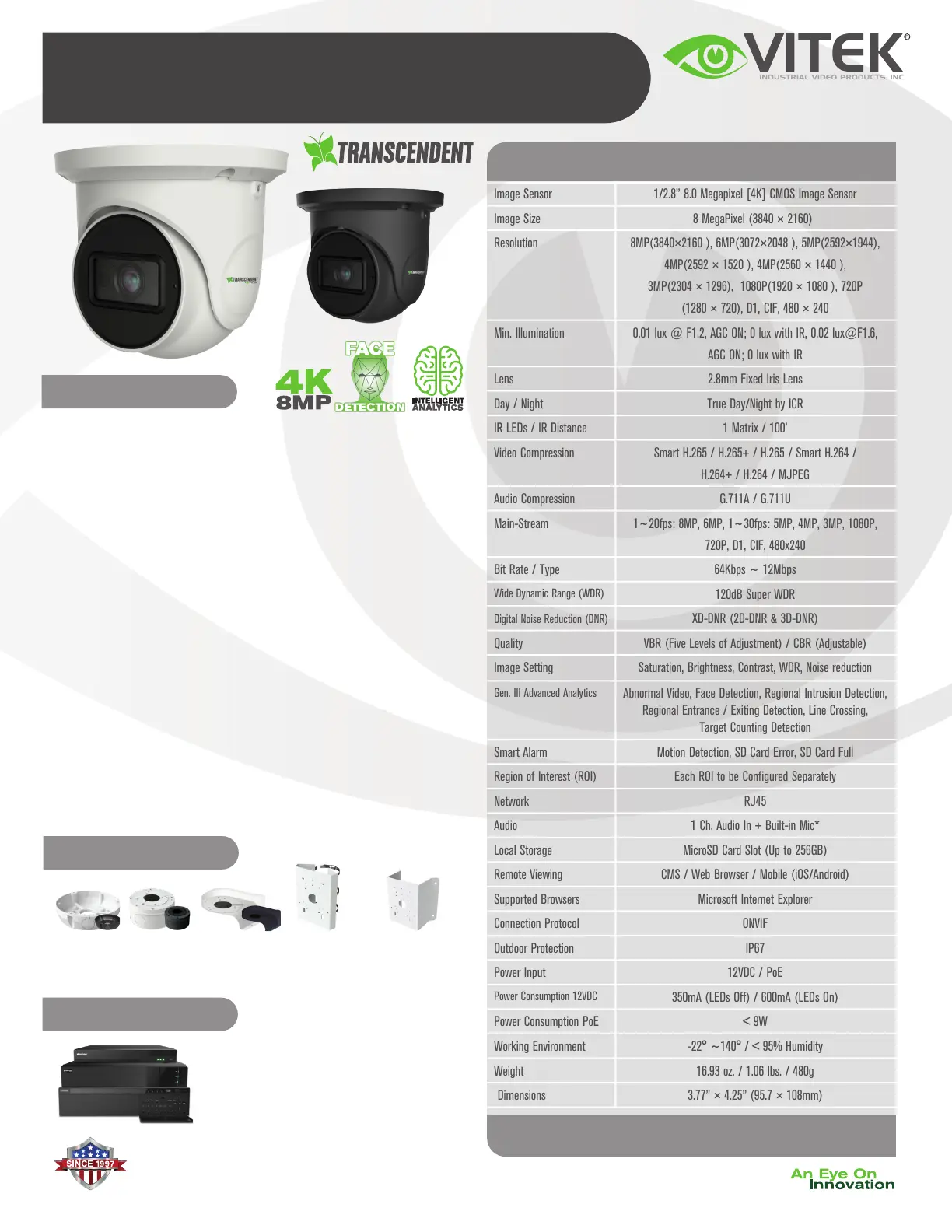

VTC-TNT8RFA3-2

Transcendent Series 8 MegaPixel [4K] Generation III Advanced A.I.

Fixed IP Turret Camera

KEY FEATURES

• 1/2.8” 8.0 Megapixel [4K] CMOS Image Sensor

• Up to 20fps live view @ 8 MegaPixel (3840 × 2160), 30fps @

5/4/3MP/1080/720p/D1/CIF/480x240

• 2.8mm Fixed Iris Lens

• Supports Still Image Recording Function

• Available with 2.8mm Fixed Lens in Ivory or Charcoal:

VTC-TNT8RFA3-2 (Ivory w/ 2.8mm)

VTC-TNT8RFA3B-2 (Charcoal w/ 2.8mm)

• Matrix IR (up to 100’ IR Range)

• True Wide Dynamic Range (120dB)

• True Mechanical Day/Night function by ICR

• XD-DNR (3D & 2D-DNR) Noise Reduction

• Gen. III Advanced Analytics: Abnormal Video, Face Detection, Regional

Intrusion Detection, Regional Entrance / Exiting Detection, Line

Crossing, Target Counting Detection

• 1 Ch. Audio In + Built-in Mic*

• Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG

• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps

• ONVIF Compliant

• MicroSD Card Slot for Local Recording (Up to 256GB)

• IP67 Weather Resistance

• Optional Junction Boxes (VT-TJB08, VT-TJB01), and Wall Mount

(VT-TWMT3) [See Other Mounting Options Below]

• 12VDC & PoE (Power over Ethernet) Operation

• 3-Year Warranty

MOUNTS

RECORDERS

Pair with VITEK Transcendent Series

Network Recorders VT-TNR818PF,

VT-TNR1646PF, and VT-TNR3216PF

with Built-in PoE and Advanced

Analytics including Face Detection.

SPECIFICATIONS

Image Sensor 1/2.8” 8.0 Megapixel [4K] CMOS Image Sensor

Image Size 8 MegaPixel (3840 × 2160)

Resolution 8MP(3840×2160 ), 6MP(3072×2048 ), 5MP(2592×1944),

4MP(2592 × 1520 ), 4MP(2560 × 1440 ),

3MP(2304 × 1296), 1080P(1920 × 1080 ), 720P

(1280 × 720), D1, CIF, 480 × 240

Min. Illumination0.01 lux @ F1.2, AGC ON; 0 lux with IR, 0.02 [email protected],

AGC ON; 0 lux with IR

Lens 2.8mm Fixed Iris Lens

Day / Night True Day/Night by ICR

IR LEDs / IR Distance1 Matrix / 100’

Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 /

H.264+ / H.264 / MJPEG

Audio Compression G.711A / G.711U

Main-Stream 1~20fps: 8MP, 6MP, 1~30fps: 5MP, 4MP, 3MP, 1080P,

720P, D1, CIF, 480x240

Bit Rate / Type64Kbps ~ 12Mbps

Wide Dynamic Range (WDR)

120dB Super WDR

Digital Noise Reduction (DNR)XD-DNR (2D-DNR & 3D-DNR)

Quality VBR (Five Levels of Adjustment) / CBR (Adjustable)

Image Setting Saturation, Brightness, Contrast, WDR, Noise reduction

Gen. III Advanced Analytics

Abnormal Video, Face Detection, Regional Intrusion Detection,

Regional Entrance / Exiting Detection, Line Crossing,

Target Counting Detection

Smart Alarm Motion Detection, SD Card Error, SD Card Full

Region of Interest (ROI)Each ROI to be Configured Separately

NetworkRJ45

Audio 1 Ch. Audio In + Built-in Mic*

Local StorageMicroSD Card Slot (Up to 256GB)

Remote ViewingCMS / Web Browser / Mobile (iOS/Android)

Supported BrowsersMicrosoft Internet Explorer

Connection Protocol ONVIF

Outdoor ProtectionIP67

Power Input12VDC / PoE

Power Consumption 12VDC

350mA (LEDs Off) / 600mA (LEDs On)

Power Consumption PoE< 9W

Working Environment-22° ~140° / < 95% Humidity

Weight 16.93 oz. / 1.06 lbs. / 480g

Dimensions3.77” × 4.25” (95.7 × 108mm)

*Please research local, state and federal laws regarding the implementation

of audio surveillance.

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

VT-TJB01/B

Optional

Junction Box

for Cable

Management

VT-TJB08/B

Optional

Junction Box

for Cable

Management

VT-TWMT3/B

Optional Wall

Mount

VT-TPLMT

Universal Pole

Mount Adapter

Ivory, reqs.

VT-TJB08

VT-TCNMT

Universal

Corner Mount

Adapter

Ivory, reqs.

VT-TJB08
