Pagina 1/48

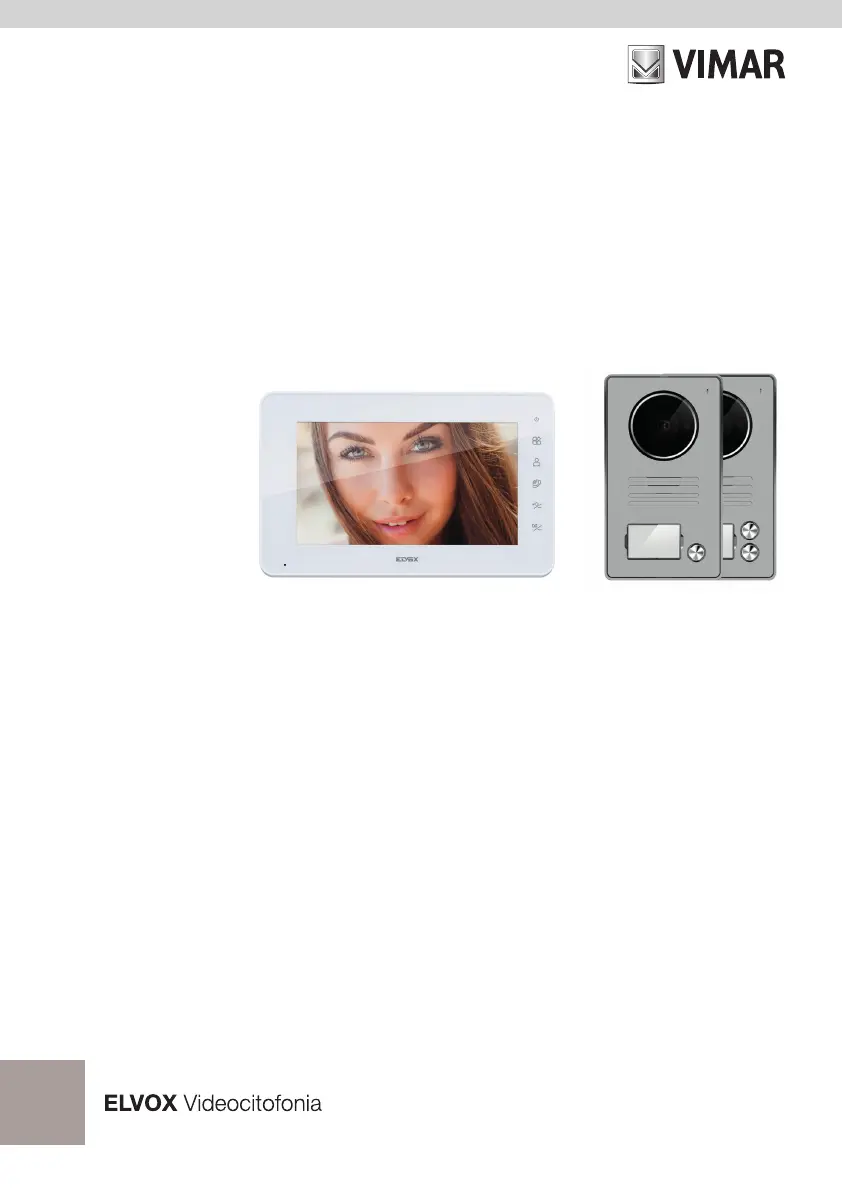

Manuale utente - User Manual - Manuel de l'utilisateur
Bedienungsanleitung - Manual de usuario - Manual do utilizador
Εγχειρίδιο χρήστη
K40910 - K40911 - K40930 - K40931
Kit videocitofonico con monitor 7" vivavoce
Video door entryphone kit with 7" open voice monitor
Kit portier-vidéo mains libres avec moniteur 7 pouces
Set Freisprech-Videohaustelefon mit 7"-Monitor
Kit de videoportero con monitor 7" manos libres
Kit de videoporteiro com monitor 7" alta-voz
Κιτ θυροτηλεόρασης με οθόνη ανοικτής ακρόασης 7"
2
K40910 - K40911 - K40930 - K40931
Caratteristiche e funzioni
Sistema
Il sistema supporta sino a due posti esterni, una telecamera
TVCC per ogni posto esterno e tre posti interni per famiglia per
un massimo di due famiglie.
In un sistema possono essere collegati videocitofoni dello
stesso tipo oppure misti:
• monitor, versione con tasti a soramento, disponibile nei Kit
K40910, K40911, K40912, K40930, K40931, K40932
• monitor, versione touch-screen, disponibile nei Kit K40915,
K40916, K40917, K40935, K40936, K40937 e
• monitor, versione touch-screen Wi-Fi, disponibile nei Kit
K40945, K40946, K40947, K40955, K40956, K40957.
Videocitofono
• Monitor 7“
• 5 tasti capacitivi a soramento retroilluminati
• Intercomunicante tra posti interni (della stessa famiglia).
• Luminosità, colore e contrasto regolabili
• Volume suoneria e volume di conversazione regolabili
• 6 melodie selezionabili
Dati tecnici:
- Ingresso DC: 24V
- Schermo LCD TFT da 7"
- Risoluzione LCD 800 (RGB) x 480
- Dimensioni (mm) 205 (L) x 128 (A) x 18 (P) (senza supporto
a parete) 205 (L) x 128 (A) x 21,5 (P) (con supporto a parete)
Targa esterna
• Unità audio-video Due Fili con telecamera grandangolare
• Grandangolo orizzontale 120 °, 1000TVL
• LED di illuminazione bianchi per visione notturna
• Grado di protezione: IP44
• Grado di protezione contro gli impatti: IK07
• Alloggiamento in alluminio, resistente agli atti vandalici
• Regolazione del volume dell’altoparlante
• Targhetta portanomi e pulsante di chiamata retroilluminati
• Cornice parapioggia
• Comando serratura elettrica e/o porta automatica
• Installazione da esterno parete
Dati tecnici:
- Temperatura di funzionamento: (-25 °C; +55 °C)
- Dimensioni (mm) 90 (L) x 160 (H) x 20 (D) (senza cornice
parapioggia) 94,4 (L) x 162,4 (H) x 34,3 (D) (con cornice
parapioggia)
Characteristics & functions
System
The system supports up to two speech units, one CCTV camera
for each speech unit and three indoor units per family, up to a
maximum of two families.
The video entryphones in a system may be all of the same
type or of dierent types:
• monitor, version with touch sensitive keys, available in kits
K40910, K40911, K40912, K40930, K40931, K40932
• monitor touch-screen version, available in kits K40915,
K40916, K40917, K40935, K40936, K40937 and
• monitor, Wi-Fi touch-screen version, available in kits K40945,
K40946, K40947, K40955, K40956, K40957.
Video entryphone
• 7" Monitor
• 5 backlit capacitive soft buttons
• Intercom function between indoor units (of the same family)
• Adjustable brightness, colour and contrast
• Adjustable ringtone volume and conversation volume
• 6 selectable ringtones
Technical data:
- DC input: 24V
- 7" LCD TFT screen
- LCD resolution 800 (RGB) x 480
- Dimensions (mm) 205 (L) x 128 (H) x 18 (D) (without wall
support) 205 (L) x 128 (H) x 21.5 (D) (with wall support)
Entrance panel
• Two-Wire audio-video unit with wide-angle camera
• 120° horizontal wide angle, 1000TVL
• White LEDs for night-time illumination
• Ingress protection rating: IP44
• Protection rating against impact: IK07
• Aluminium housing, vandal-resistant
• Speaker volume adjustment
• Name plate with backlit call buttons
• Rainproof cover
• Electric door lock and/or automatic door control
• Surface-wall mount installation
Technical data:
- Operating temperature: (-25 °C; +55 °C)
- Dimensions (mm) 90 (L) x 160 (H) x 20 (D) (without rainproof
cover) 94.4 (L) x 162.4 (H) x 34.3 (D) (with rainproof cover)
