Issue 1

744 1947

V-2976

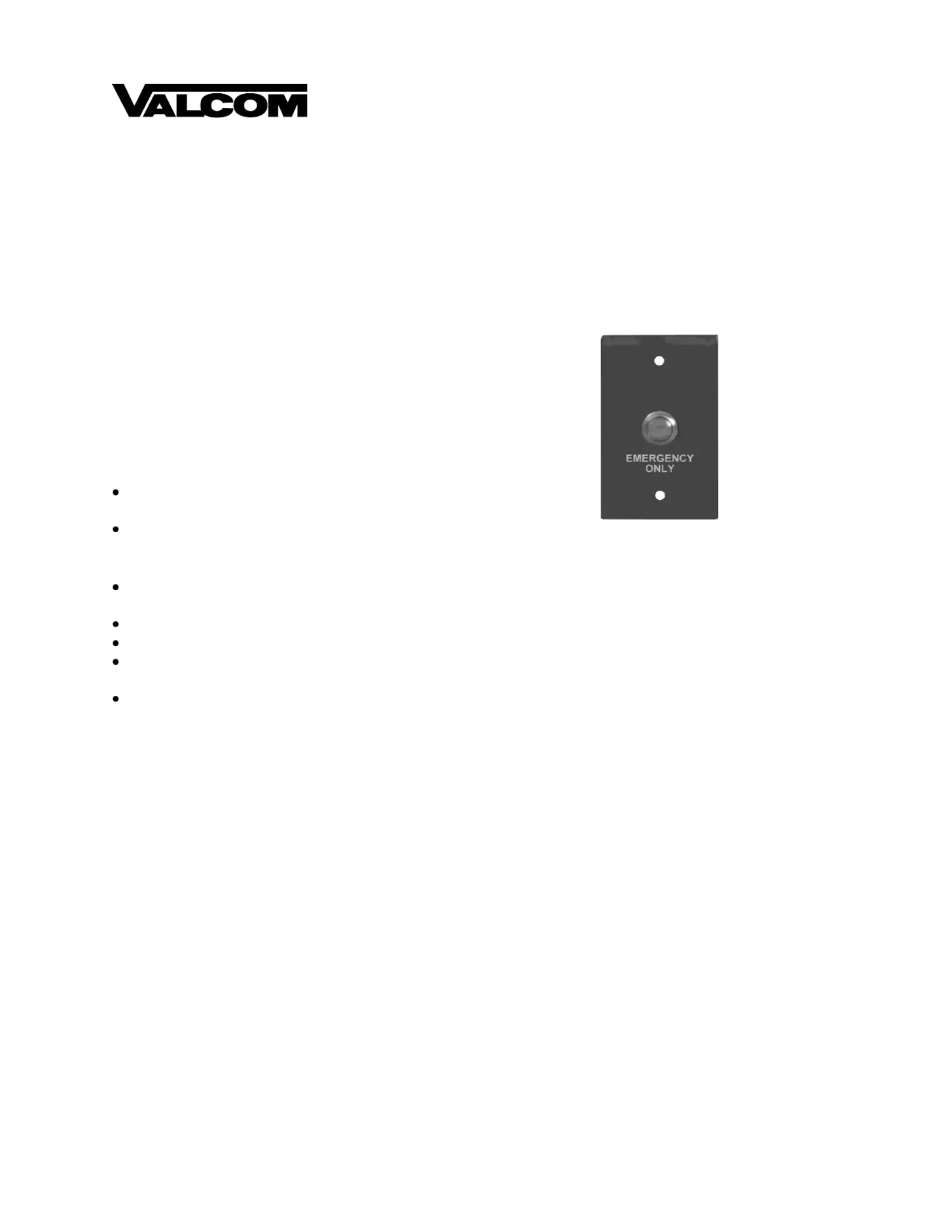

RED EMERGENCY CALL SWITCH

INTRODUCTION

The V- Red Emergency Call Switch 2976is

designed to be used with Talkback Page Control

Units with the remote calling feature. The

V-2976 provides a vandal resistant momentary

spring return switch for connection to customer

provided signaling equipment.

DIMENSIONS/WEIGHT

4.50" H x 2.75" W x 1.50" D

(11.43cm H x 6.99cm W x 3.81cm D)

0.2 lbs. (0.09 kg)

FEATURES

Designed to t in a standard single-gang

electrical box.

No external power source required.

Stainless steel vandal resistant call button.

18 gauge steel plate finished in high-gloss

red enamel.

“EMERGENCY ONLY” screened in white

lettering below the call button.

CONNECTIONS/SETUP

1. Connect switch leads from paging control

unit to the two screw terminals on the rear of

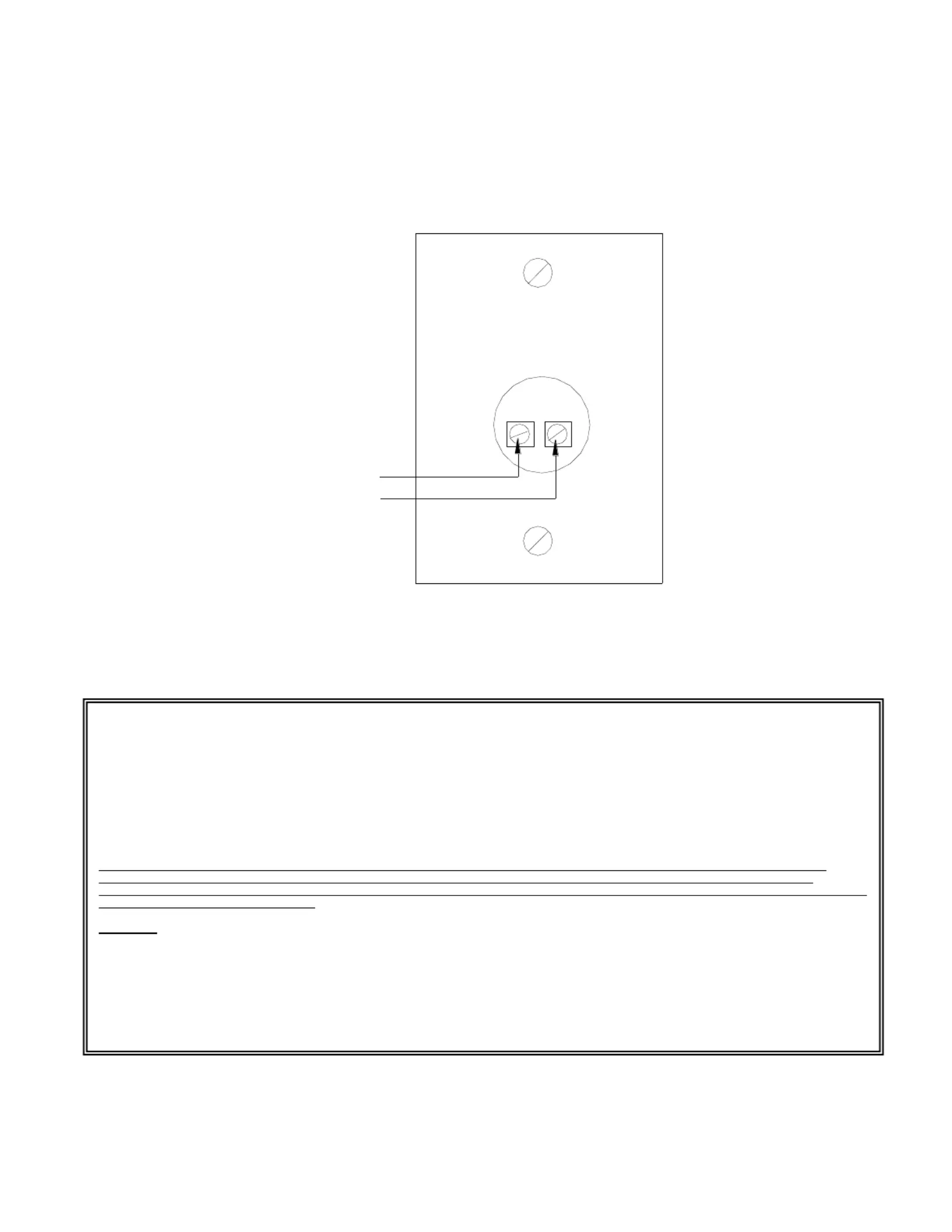

the V-26, as shown in the connection 97

diagram.

2. Place V-2976 over standard single-gang

electrical box with minimum depth of

2 inches and fasten in place using the two

#6-32 screws provided.

TECHNICAL ASSISTANCE

When trouble is reported, verify that there are no

shorts or grounds on cabling.

Assistance in troubleshooting is available from

the factory. When calling, you should have a

VOM, a telephone test set available and call

from the job site. Call (540) 563-2000 and press

1 for Technical Support or visit our website at

http://www.valcom.com.

Valcom equipment is not eld repairable.

Valcom, Inc. maintains service facilities in

Roanoke, VA. Should repairs be necessary,

attach a tag to the unit clearly stating company

name, address, phone number, contact person

and the nature of the problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056
