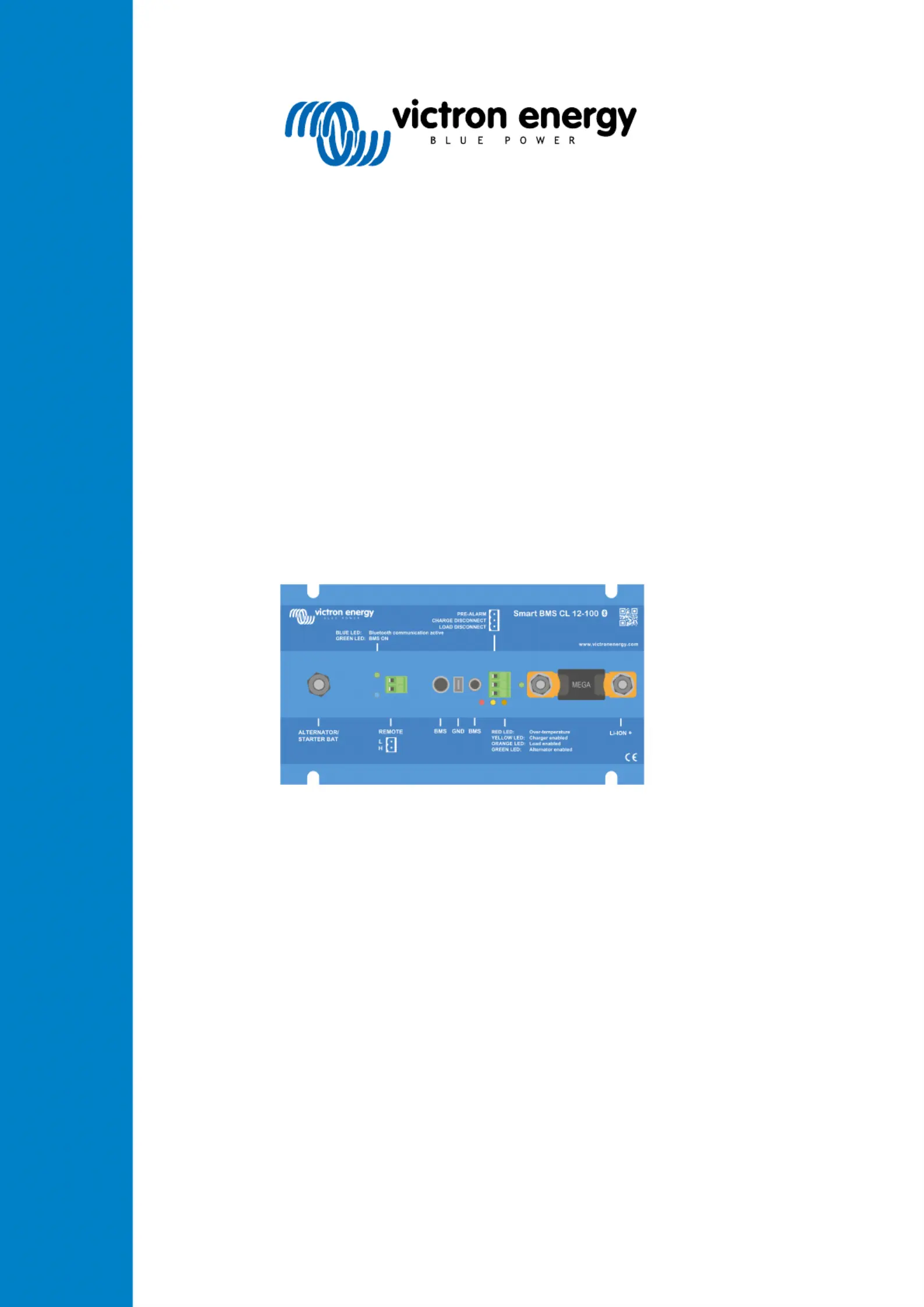

Smart BMS CL 12-100
Battery Management System
Rev 10 - 06/2023
This manual is also available in .HTML5
ENGLISH
Table of Contents
1. Safety precautions ................................................................................................................... 1
2. Introduction ........................................................................................................................... 2
2.1. General description ......................................................................................................... 2
2.2. Features and functionality .................................................................................................. 2
2.3. What's in the box ............................................................................................................ 4
3. Installation and configuration ..................................................................................................... 5
3.1. Important warning and note ................................................................................................ 5
3.2. Things to consider ........................................................................................................... 5
3.2.1. Controlling DC loads via Load disconnect ......... ...... ................. ................. ...... ........... .... 5
3.2.2. Controlling DC loads with a BatteryProtect ......... ...... ................. ................. ...... ........... ... 5
3.2.3. Controlling a battery charger via Charge disconnect ......... ...... ................. ................. ...... ... 6
3.2.4. Multiple batteries in parallel configuration . ........... ...... ................. ................. ...... ............ 6
3.3. System examples ............................................................................................................ 7
3.4. Installation .................................................................................................................... 9
3.5. Configuration 10...............................................................................................................
3.5.1. Smart BMS settings 10.............................................................................................
3.5.2. VictronConnect status display 11......... ...... ................. ................. ...... ........... ...... .........
4. Specifications 12.......................................................................................................................
5. Appendix 13.............................................................................................................................
5.1. Appendix A 13.................................................................................................................
5.2. Appendix B 15.................................................................................................................
5.3. Appendix C 17.................................................................................................................
5.4. Dimensions Smart BMS CL 12-100 18......... ...... ................. ................. ...... ........... ...... .............
Smart BMS CL 12-100
1. Safety precautions
• Installation must strictly follow the national safety regulations in compliance with the enclosure, installation,
creepage, clearance, casualty, markings and segregation requirements of the end-use application.
• Installation must be performed by qualified and trained installers only.
• Carefully study the product manuals of all connected devices before installing them.
• Switch off the system and check for hazardous voltages before altering any connection.
• Do not open the lithium battery.
• Do not discharge a new lithium battery before it has been fully charged first.
• Charge a lithium battery only within the specified limits.
• Do not mount the lithium battery upside down or on its sides.
• Check if the lithium battery has been damaged during transport.
Smart BMS CL 12-100
Page 1 Safety precautions
