Rev. 4/24/2017 PAL, MANUAL
Copyright 2017 Vestil Manufacturing Co. Page 1 of 5

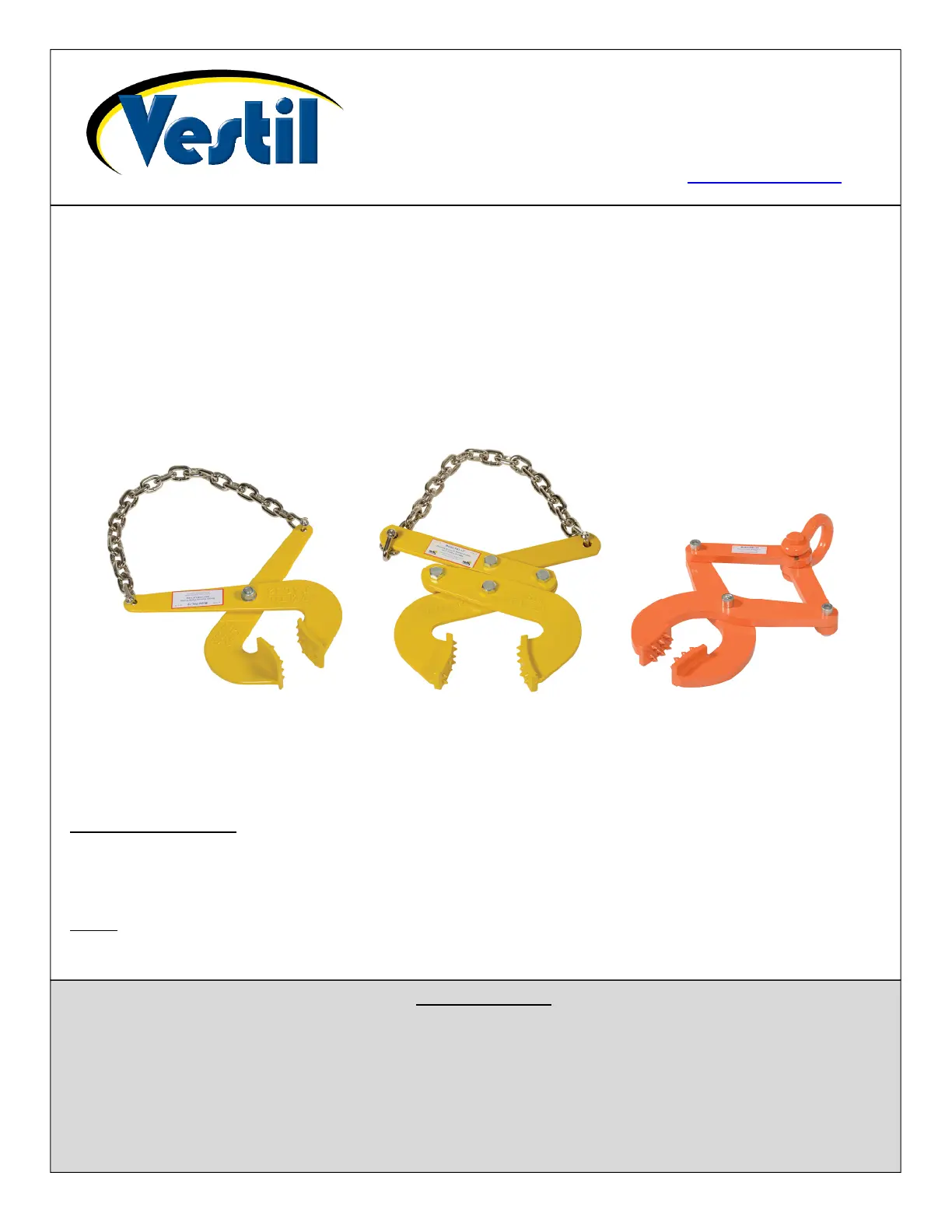

PAL Series Pallet Pullers
Instruction Manual
PAL-12 PAL-LP PAL-16
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product closely to determine whether
it sustained damage during transport. If damage is discovered, record a complete description of it on the
bill of lading. If the product is undamaged, discard the packaging.
NOTE:
The end-user is solely responsible for confirming that product design, installation, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Table of Contents
Product specifications.……………………………………………………….………………………………………….. 2
Safety Principles…………………….................................................................................................................... 2
Safety Considerations….……………………………………………..………………………………………………… 2
Use instructions………………………………………………………………………………………………………….. 2
Diagram of Components…….............................................................................................................................. 3
Inspections and Maintenance ……………………………………..…………………………………………………… 3
Label placement diagram……………………………………………………………………….………………………. 4
Limited Warranty………………………………………………………………………..………………….................... 5
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail: info@vestil.com
NOTE: PAL-series pallet pullers are NOT below-the-hook lifting devices! DO NOT use these products
for any other purpose than to pull pallets and skids across smooth surfaces.
Rev. 4/24/2017 PAL, MANUAL
Copyright 2017 Vestil Manufacturing Co. Page 2 of 5
Product specifications
The standard GR-series system is NOT designed for installation on public streets or highways.
[Guard rail systems that comply with Department of Transportation requirements are available as
special orders.] Rail-mounting hardware is included with each post. Concrete anchor kits are sold
separately. Dimensions and other product specifications appear in the following table:
Model Description
Pulling
capacity
Jaw
height
Jaw
opening
Net weight
PAL-12 Single scissor 5,000 lb. 2¾”
7”
14 lb.
PAL-16 Single Scissor (heavy duty) 6,000 lb. 2”
5”
16 lb.
PAL-LP Double Scissor (low profile) 5,000 lb.
2in.
(~5cm)
3¼in.
(~8.3cm)
24lb.
(10.9cm)
Safety Principles:
This manual uses SIGNAL WORDS to classify personal injury risks and situations that might lead to
property damage, as well as to draw attention to safety messages. Signal words also indicate the
seriousness of the injury that might result from specified actions. Definitions appear below.
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or
SERIOUS INJURY. Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or
SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or
MODERATE injury.
Identifies practices likely to result in product/property damage, such as assembly,
installation, etc. that might unnecessarily damage the guard rail.
Employers are responsible for training employees to use the product properly. If you do not
understand an instruction, ask your supervisor or employer for assistance, because failure to follow the
directions in this manual might result in serious personal injury or even death. Vestil is not liable for any
injury or property damage that occurs as a consequence of failing to apply either: 1) the instructions in
this manual; or 2) the information provided on labels affixed to the product (if applicable).
Safety Considerations:
Improper use might result in death or serious personal injury.
ONLY use this device to PULL pallets. NEVER use a pallet puller as a below-the-hook lifting device.
DO NOT exceed the capacity of the puller.
DO NOT use to pull top-heavy or unstable loads.
DO NOT pull broken or damaged pallets.
Pull ONLY 1 pallet at a time.
Make sure both shackle pins are securely fastened to their shackles BEFORE using the puller.
Use Instructions:
1. Grip the stringer (not the deck boards) of a pallet/skid with the jaws of the puller.
2. Attach the chain to a fork truck and slowly drive the truck in reverse. As force is applied, the jaws
tightly grip the stringer. Drag the pallet slowly and steadily.
3. When the pallet is in the desired position, i.e. where it can be picked up with your forklift, reverse
direction momentarily to produce slack in the chain. Then, open the jaws to release the pallet
.
