080124

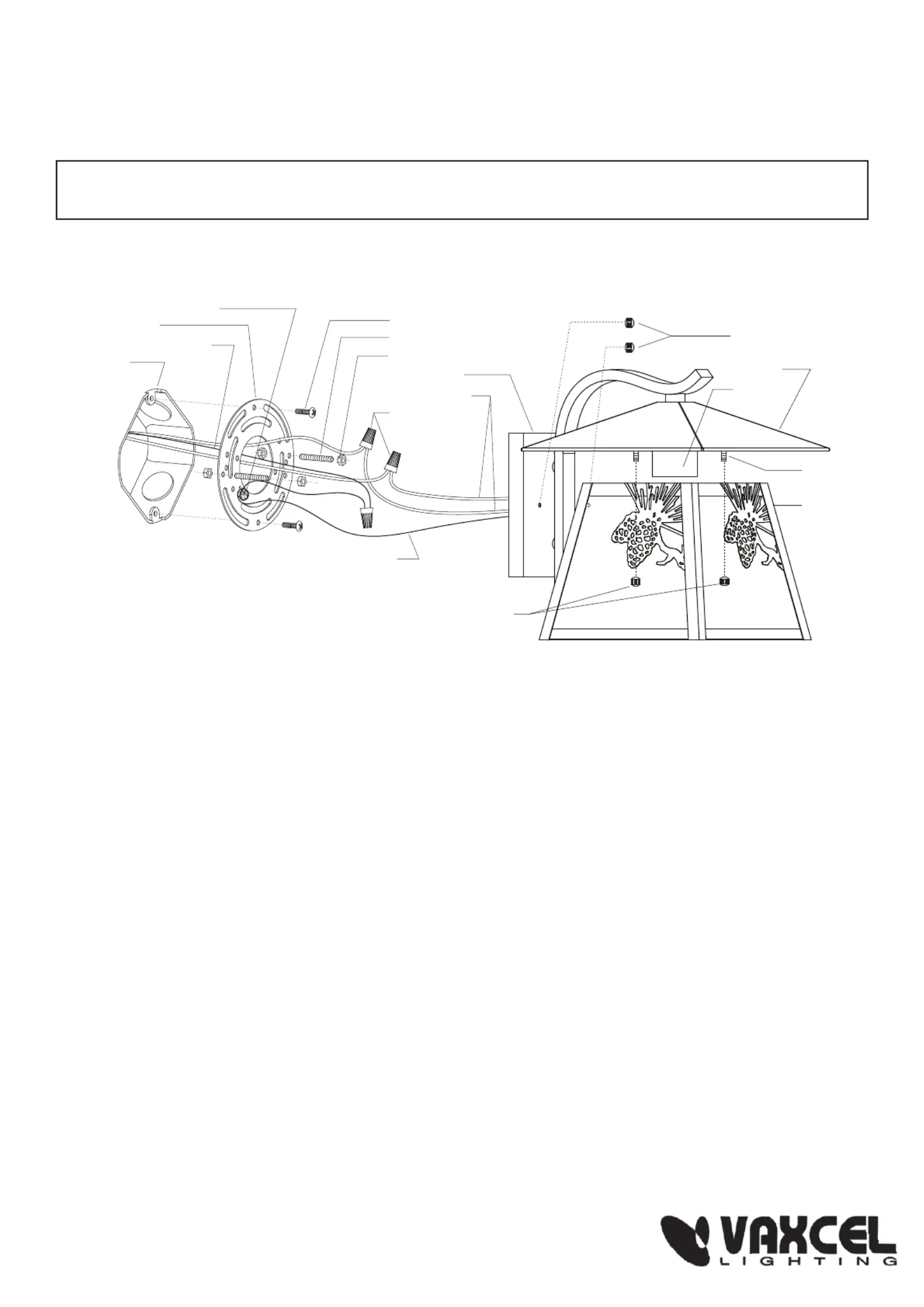

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT

BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTION.

OW50573 / OW50593 / OW50513

1. Thread two headless screws to the mounting plate, and secure them with four lock nuts (two on

each side of the mounting plate). Adjust the length of the headless screws if necessary.

Note: Make sure that the headless screws are lined up horizontally, to ensure that the fixture will

be level.

2. Attach the mounting plate to the outlet box by using two mounting screws.

3. Line up the holes in the frame to the set screws of the fixture, secure the frame onto the fixture

using bolt nuts.

4. Pull out the outlet wires and the house grounding wire from the outlet box. Make wire connections

using the wire nuts:

---Connect the black wire from the fixture to the black wire from the power source.

---Connect the white wire from the fixture to the white wire from the power source.

---Attach the fixture grounding wire to the mounting plate with the green grounding screw. Then

connect it to the house grounding wire with a wire nut.

Carefully put the wires back into the outlet box.

5. Attach the back plate to the mounting plate by inserting the headless screws, then secure it with

two bolt nuts.

CAUTION: With silicone caulking compound, caulk completely around where the back

plate meets with the wall surface to prevent water from seeping into the outlet box.

6. Install a bulb (not included). See relamping label at socket area or packaging for maximum

allowed wattage.

7. Turn on the power at the main fuse or circuit breaker box.

House Grounding Wire

Green Grounding Screw

Fixture Grounding Wire

Wire Nut

Mounting Screw

Headless Screw

Mounting Plate

Outlet Box

Fixture Wire

Lock Nut

Back Plate

Bolt Nut

Fixture

Set Screw

Socket

Frame

Bolt Nut
