ASSEMBLY AND INSTALLATION

INSTRUCTIONS

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)

Bolt Nut (D)

Crossbar Unit (A)

OW37051BBZ / OW37051TB

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

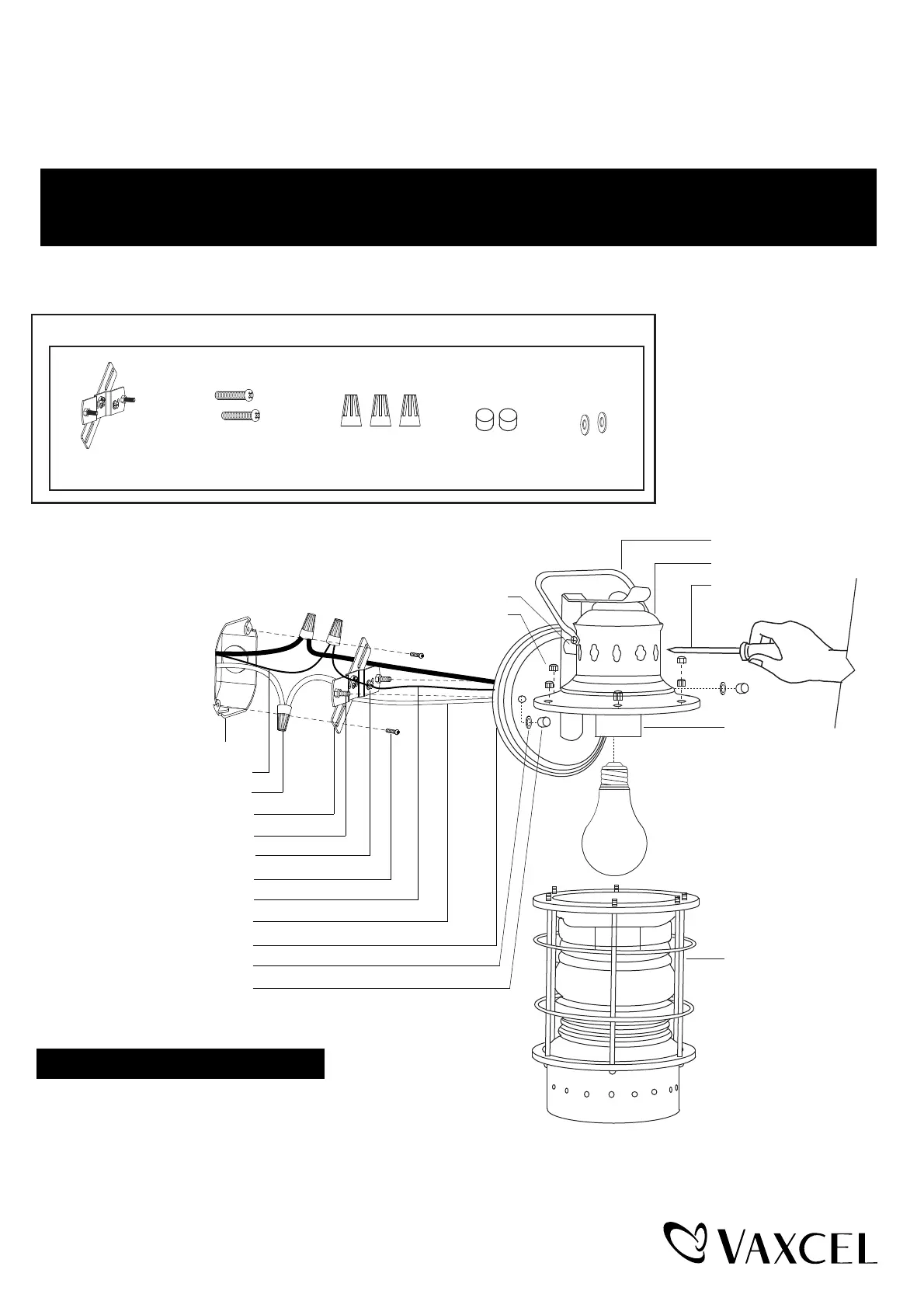

1. Unscrew the two bolt nuts (D), remove the crossbar unit (A)

from the backplate.

2. Attach the crossbar unit (A) to the outlet box by using two mounting screws (B).

Adjust the length of the preinstalled headless screws if necessary.

Note: Make sure that the headless screws are lined up horizontally to

make the fixture level.

Turn off the power at fuse or circuit box

Installation Steps

Rubber Pad (E)

Wire Connector (C)

House Ground Wire

Outlet Box

Mounting Screw (B)

Green Ground Screw

Headless Screw

Crossbar Unit (A)

Fixture Wire

Fixture Ground Wire

Backplate

Bolt Nut (D)

Rubber Pad (E)

Handle

Screwdriver

Max. 60W Medium Base Bulb

(not included)

Bolt Nut

Socket

Frame

Fixture

Set Screw
