ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
T0209
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
151024
Turn off the power at fuse or circuit box.
Installation Steps
Back Plate
Rubber Pad (H)
Bolt Nut (G)
Rubber Pad (H)
Cross Bar (A)
Socket
Metal Frame
Clip
Metal Frame
Glass Panel
Clip
Glass Panel

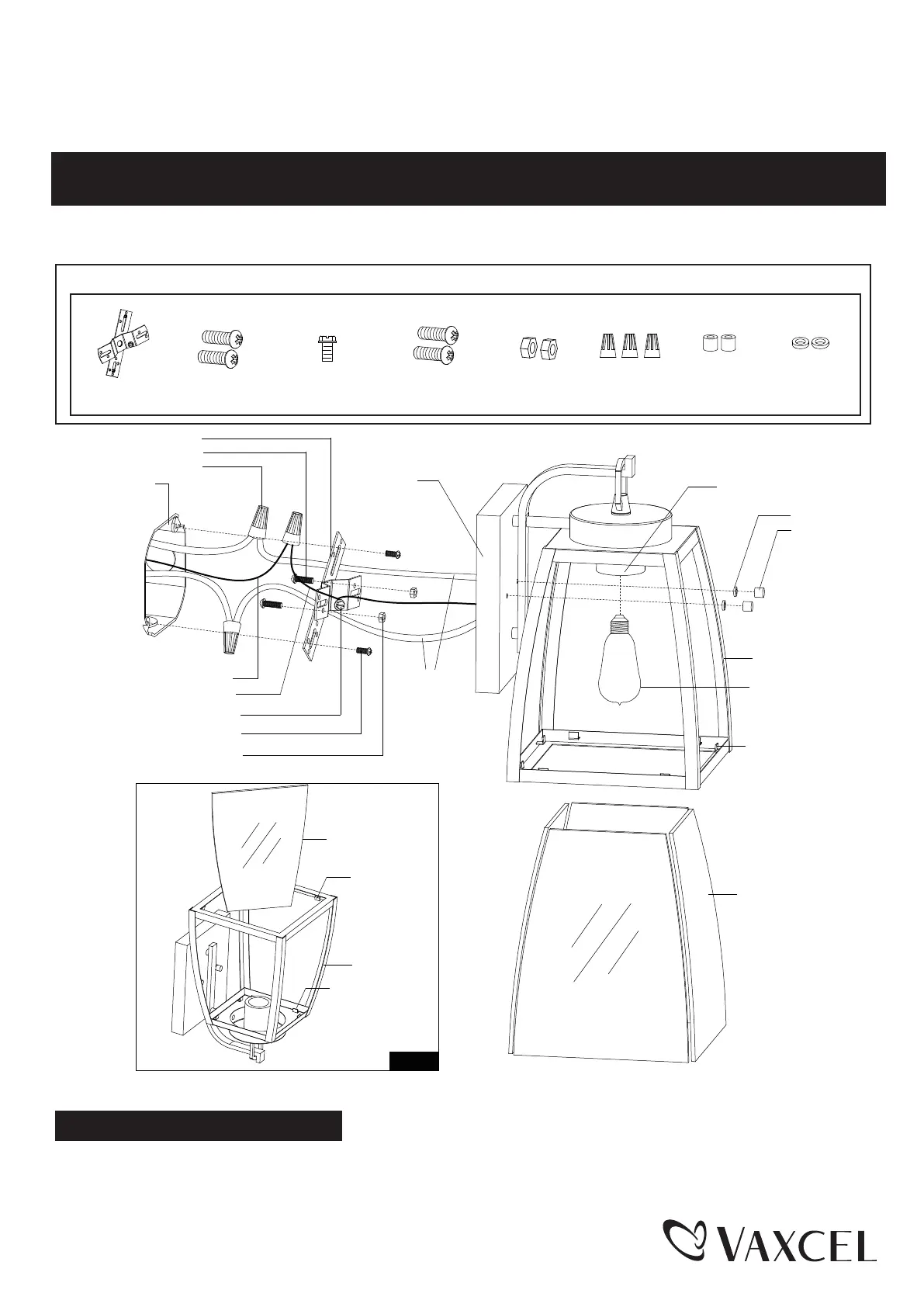

Fig.1
Slot
Green Grounding Screw (C)
Outlet Box
Wire Nut (F)
Fixture Mounting Screw (D)
Cross Bar (A)
Mounting Screw (B)
Lock Nut
(E)
House Grounding Wire
Fixture Grounding Wire
Fixture Wire
Mounting Screw (B)
Wire Nut (F)
Bolt Nut (G)
Lock Nut (E)
Green Grounding
Screw (C)
1. Thread two fixture mounting screws through the cross bar, and then secure them with two lock nuts. Adjust the
length of the fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined up horizontally to make the fixture level.
Vintage Bulb Max.60W
(not included)
Fixture Mounting
Screw (D)
