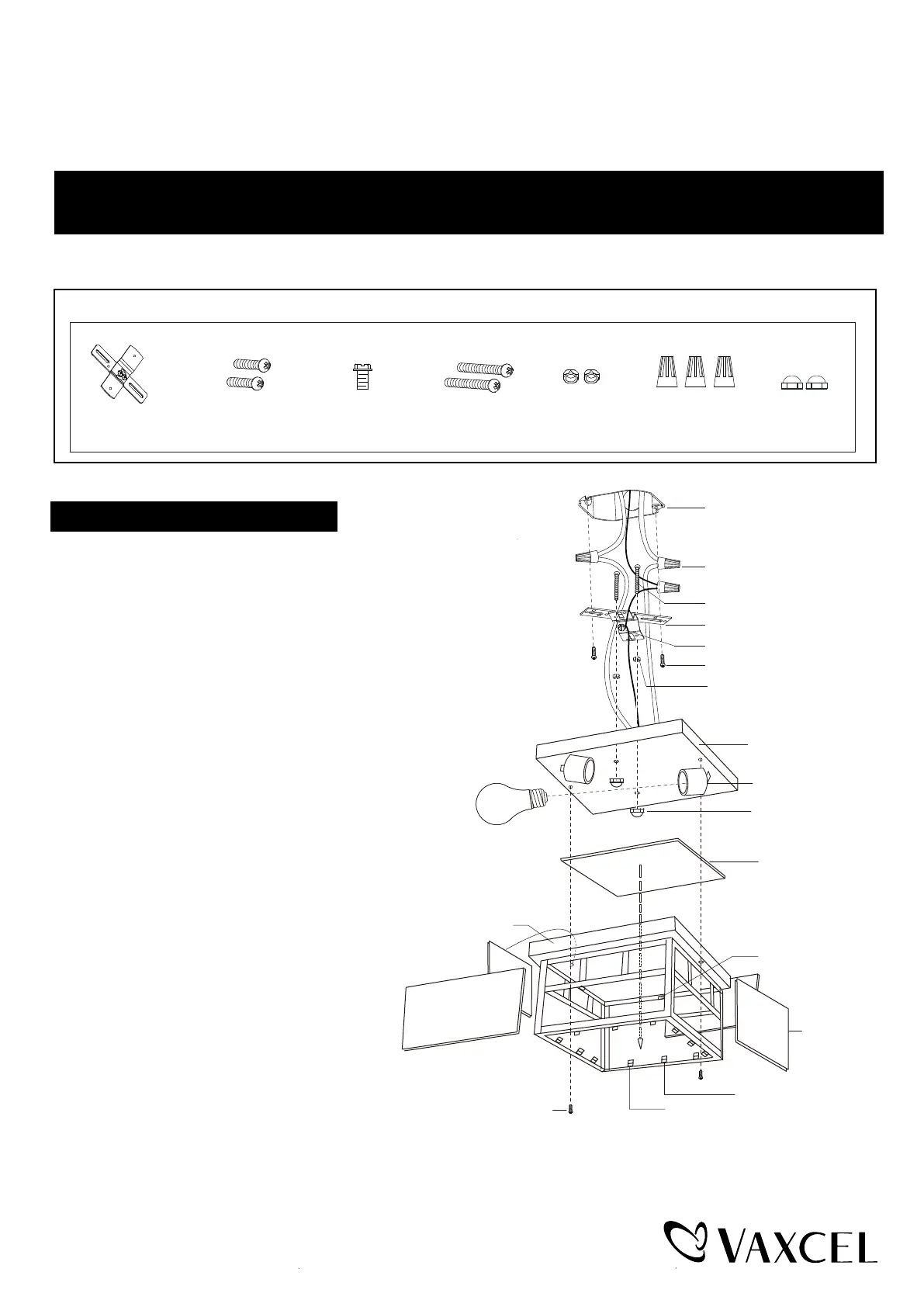

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

T0440

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Installation Steps

Turn off the power at fuse or circuit box

Page 1 / 2

240703

1. Thread two fixture mounting screws (D) through the

cross bar (A), then secure them with two lock nuts (E).

2. Attach the cross bar (A) to the outlet box by

using two mounting screws (B).

3. Unscrew set screw with the metal frame.

4. Pull out the outlet wires and housing grounding

wire from the outlet box. Make wire connections

using the wire connectors (F):

---The black wire from the fixture to the black wire

from the power source.

---The white wire from the fixture to the white wire

from the power source.

---Attach the fixture grounding wire to the cross

bar (A) with the green grounding screw (C).

Then connect it to the house grounding wire

with a wire connector (F).

Carefully tuck the wires back into the outlet box.

5. Attach the plate to the cross bar (A) by inserting

two fixture mounting screws (D), then secure it

with the two ball nuts (G).

6. Install bulbs (not included). See the relamping

label at socket area or packaging for maximum

allowed wattage.

7. Place the bottom glass into the metal frame,

then secure it with four middle clips which on

the bottom of the metal frame.

Hardware Package (Included):

Lock Nut (E)

Mounting Screw (B)

Wire Connector (F)

Ball Nut (G)

Cross Bar (A)

Green Grounding

Screw (C)

Fixture Mounting

Screw (D)

Plate

Lamp Holder

Ball Nut (G)

Outlet Box

Wire Connector (F)

Cross Bar (A)

Green Grounding Screw (C)

Mounting Screw (B)

Lock Nut (E)

Fixture Mounting Screw (D)

Bottom Glass

Clip

Side Glass

Middle Clip

Side Clip

Set Screw

Side Glass

Metal Frame

Bulb Type A

Max.60W

(not included)
