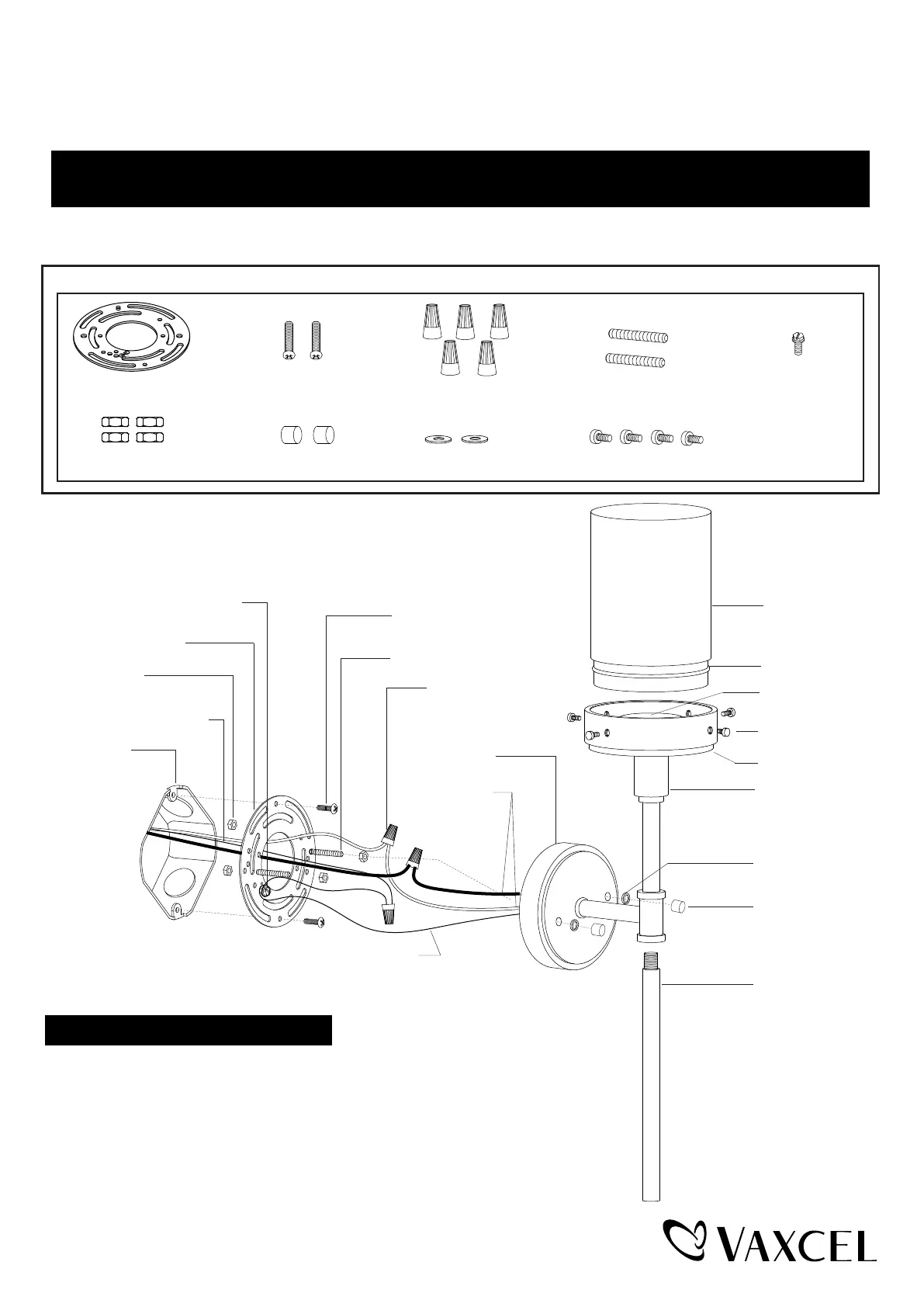

House Grounding Wire
Green Grounding Screw (E)
Fixture Grounding Wire
Wire Connector (C)
Back Plate
Ball Nut (G)
Fixture
Tube
Mounting Screw (B)
Mounting Plate (A)
Outlet Box
Fixture Wire
Lock Nut (F)
Headless Screw (D)
Rubber Pad(H)
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
T0390 / T0391 /T0392 / T0393
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
180129
Green Grounding
Screw (E)
Headless screw (D)
Mounting Screw (B)
Wire Connector (C)
Lock Nut (F)
Mounting plate (A)
Ball Nut (G)
LED
Glass Shade
Set Screw (I)
Rubber Pad (H)Set Screw (I)
1. Thread two headless screws through the mounting plate, then secure them with
four lock nuts (two on each side of the mounting plate). Adjust the length of the
headless screws if necessary.
Note: Make sure that the headless screws are lined up horizontally, to ensure that
the fixture will be level.
2. Attach the mounting plate to the outlet box by using two mounting screws.
3. Secure the tube to the fixture.
Turn off the power at fuse or circuit box
Installation Steps
Notch
Glass Bracket
