ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0347
Hardware Package (included):
IMPORTANT:
Turn off the power at fuse or circuit box
Installation Steps

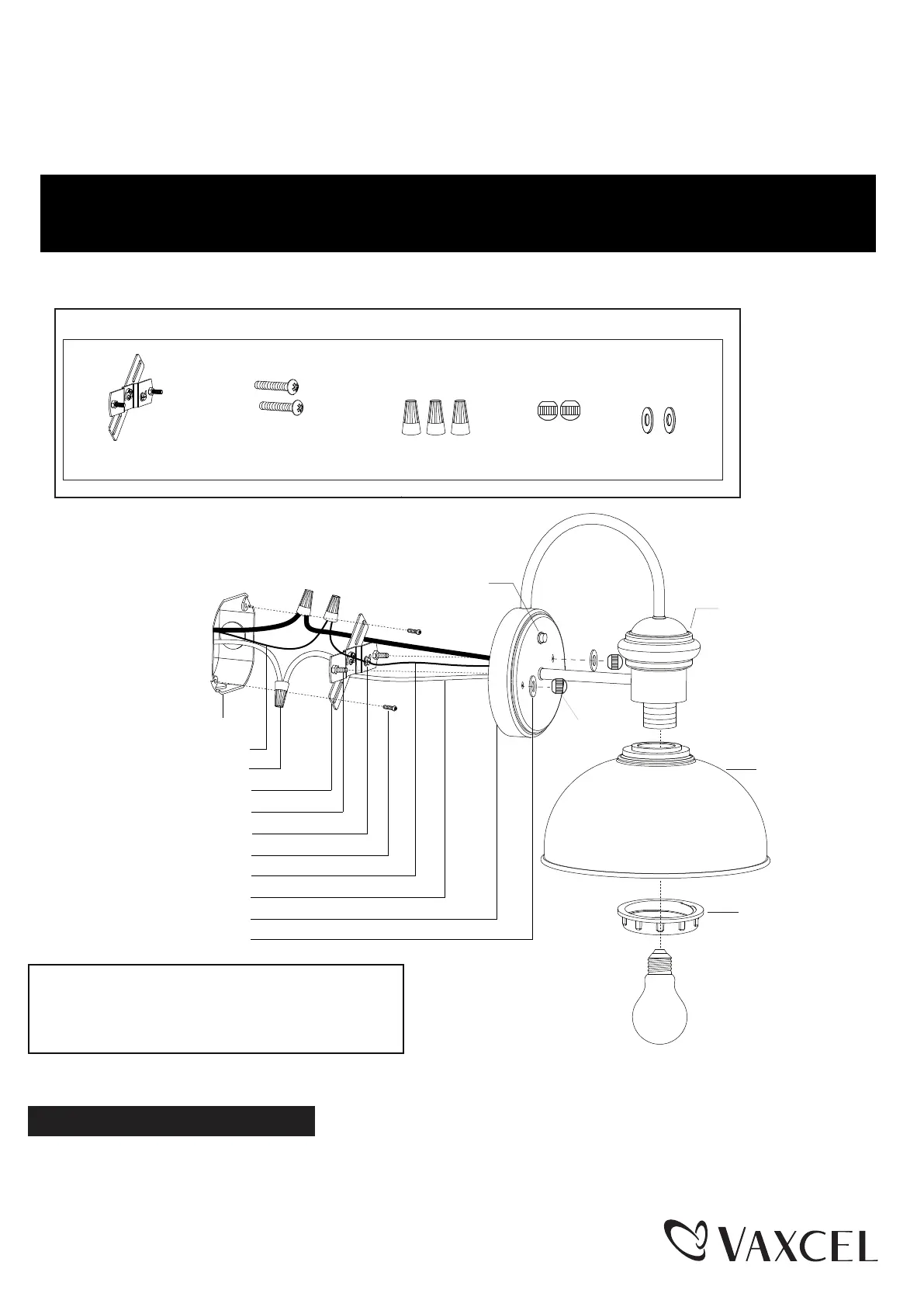

1. Attach the cross bar unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the preinstalled
fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined up horizontally to make the fixture level.
Mounting Screw (B)
Wire Connector (C)Bolt Nut (D)
Cross Bar Unit (A)
Rubber Pad (E)
Max.100W Type A Bulb
(not included)
Backplate
Photocell
Fixture
Shade
Socket Ring
Bolt Nut (D)
Rubber Pad (H)
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Fixture Mounting Screw
Green Ground Screw
Cross Bar Unit (A)
Fixture Wire
Fixture Ground Wire
The sensor has an excellent photocell function
to enable the light to turn on at dusk and off at
dawn automatically.
Page 1 / 3
230327
W
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ
AND SAVE THESE INSTRUCTIONS.
