ENGLISH

Table fan

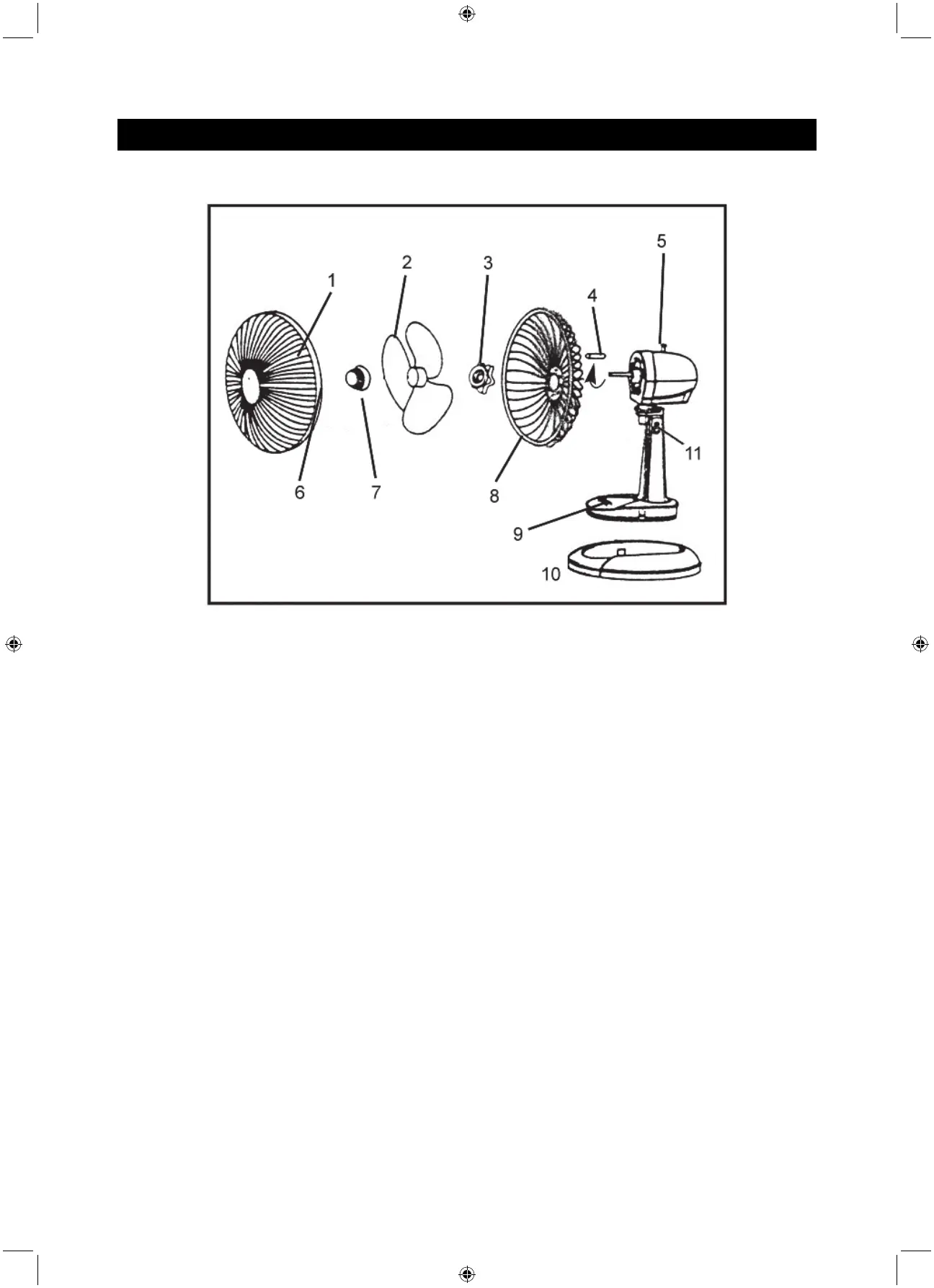

Figure 1 illustrates the parts of this fan. After removing fan from the package, check to make sure all of the

parts are present.

1. Front grill

2. Fan blade

3. Nut

4. Sleeve (discard)

5. Oscillation knob (on top of motor casing)

6. Latch

Blade cap VL-FN12,VL-FN16

8. Rear grill

9. 3 speed switches

10. Base

11. Retaining Pin

ASSEMBLY

1. Attach the fan base to the fan body using the four screws included.

2. Place the fan base on a firm, stable surface, such as a table or counter top.

3. Remove the plastic sleeve from the shaft.

4. Secure the rear grill to the motor casing with the plastic nut. The handle should be at the top. Turn it

clockwise to tighten.

5. Slide the blade onto the shaft pin, pushing until it is firmly in place.

6. Test the blade operation by rotating it with your hand. There should be no friction with the other parts. If

blade does not rotate freely, repeat steps 4-5.

Place the blade cap on shaft pin and turn counter-clock

wise until tight.VL-FN12,VL-FN16

8. Ensure that the latches on either side of the rear grill are open. Place the front and rear grills together and

close the side latches. If they do not fit securely together, repeat the procedure.

OPERATING INSTRUCTIONS

Place the fan on a safe flat surface where it cannot fall or be pulled by the cord. Plug the fan into a 220V/50Hz

outlet and follow the operating instructions:

This fan is equipped with three fan speeds to allow optimal air comfort.

0- Pressing this button will power the fan OFF.

1- Pressing this button will power the fan ON at a LOW speed setting.

Fig. 1
