VIP-148AL-IC InformaCast® Compliant

IP Talkback Horn

Installation

Mounting (Network Interface)

The Network Interface is designed for wall or

shelf mounting and must be within 300 feet of

the network switch.

Shelf: Provided with the Network Interface are

four rubber pads. Peel the pads from the carrier

backing and place at the four corners of the

bottom of the unit.

Wall: Using the hardware provided, secure the

Network Interface to the wall.

Mounting (Horn)

The horn should be mounted 15 to 20 feet

above the floor to allow for best sound

distribution. The unit can be mounted to a wall,

a beam or an electrical box.

NOTE: For ease of installation, the base can be

attached to the speaker before or after the base

is mounted.

Loosen position adjustment knob

Insert the ball of the base into the socket of

the speaker

Tighten the position adjustment knob

These horns should be mounted 15 to 20 feet

above the floor to allow for best sound

distribution. The units can be mounted to a wall,

a beam or an electrical box.

A “C” clamp is provided with the horns to allow

mounting to a beam. When using the “C” clamp

for mounting, remove the signal cable from the

ball mount. Reinstall an RJ45 connector on the

signal cable after mounting, using the T568B

pinout scheme. See Figure 1.

The base has holes punched for a

double-gang square box, but by punching

out additional knockout holes, the base can

be mounted to a single-gang or octagon

box See Figure 2.

Mount the base to wall studs using the two

holes provided. Knockout holes are

provided for punch out should additional

holes be desired. See Figure 3.

The horns may be rotated or moved up and

down to obtain the desired position by

loosening the position adjustment knob at

the bottom of the unit approximately one

turn. Make required adjustments, retighten

knob.

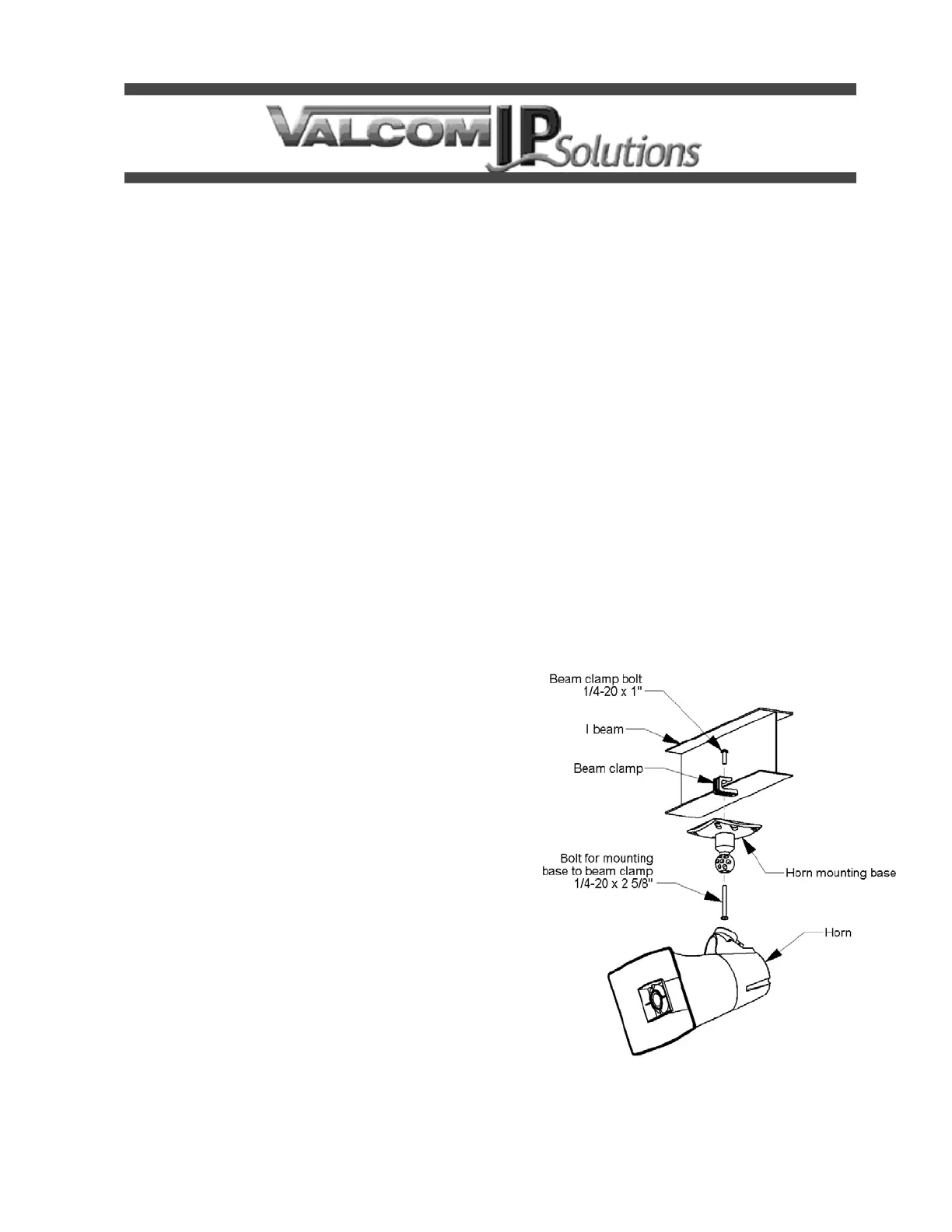

Figure 1. Mounting to a Beam with a “C” Clamp
