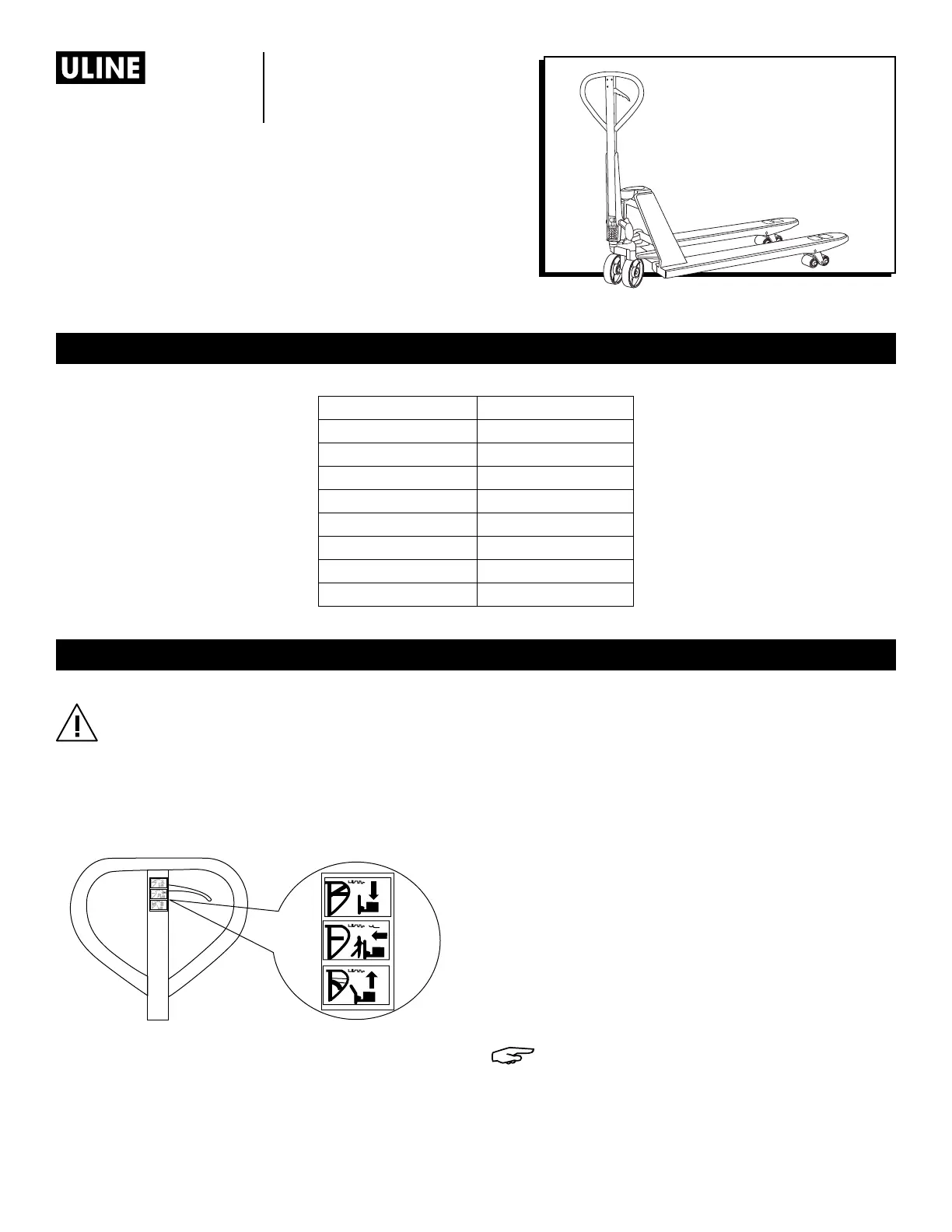

PAGE 1 OF 9 0325 IH-5484

HEAVY-DUTY

PALLET TRUCK

1-800-295-5510

uline.com

H-5484

OPERATION

TECHNICAL DATA

WARNING! Operator must read and understand

instructions here and on truck prior to use.

On the handle of the pallet truck, you will find the

control lever, which can be set in three positions.

(See Figure 1)

- DOWN = to lower the forks

- NEUTRAL = to move the load

- UP = to raise the forks

1. If the forks elevate while pumping in the NEUTRAL

position, turn the setting screw clockwise until

pumping the handle does not raise the forks and

the NEUTRAL position functions correctly.

2. If the forks descend while pumping in the NEUTRAL

position, turn the setting screw counterclockwise

until the forks do not lower.

3. If the forks do not descend when the control lever is

in the DOWN position, turn the setting screw clockwise

until raising the control lever lowers the forks. Then

check the NEUTRAL position as per steps 1 and 2.

4. If the forks do not lift while pumping in the UP

position, turn the setting screw counterclockwise until

the forks elevate while pumping in the UP position.

Then check the NEUTRAL and DOWN position as per

steps 1, 2 and 3.

NOTE: When viewing the truck from the handle

side, the setting screw is located on the right

side of the pump above the right wheel. The

truck will lower faster or slower depending on

how far in or out the screw is adjusted.

Figure 1

MODEL

H-5484

Capacity11,000 lbs.

Max. Fork Height7.5"

Min. Fork Height3"

Fork Length48"

Overall Fork Width27"

Fork Wheel Diameter3" Nylon

Steering Wheel Diameter7" Nylon

Net Weight270 lbs.

Para Español, vea páginas 4-6.

Pour le français, consulter les pages 7-9.
