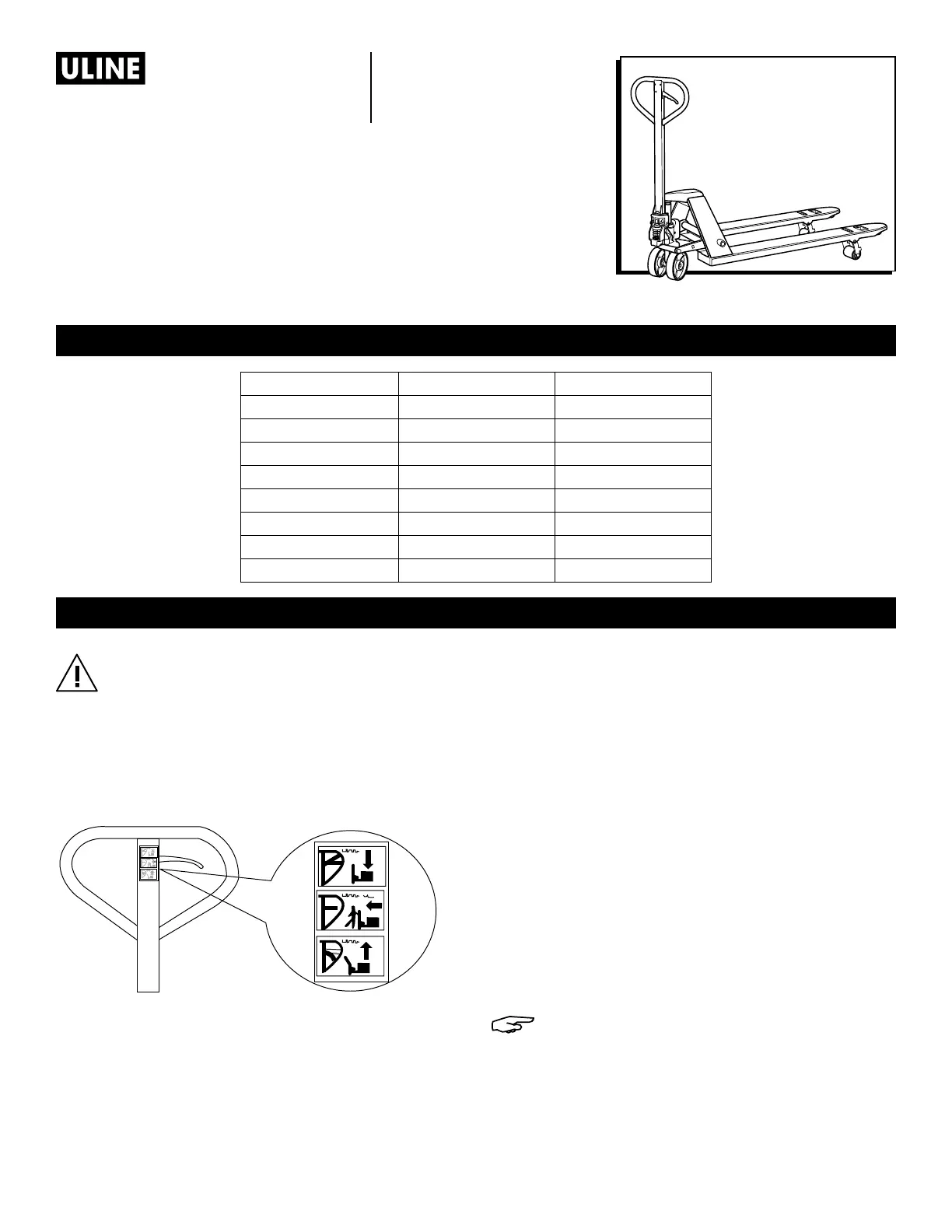

PAGE 1 OF 9 0325 IH-2185

1-800-295-5510

uline.com

CORROSION RESISTANT

PALLET TRUCK

H-2185, H-2186

OPERATION

TECHNICAL DATA

WARNING! Operator must read and understand

instructions here and on truck prior to use.

On the handle of the pallet truck, you will find the

control lever, which can be set in three positions.

(See Figure 1)

- LOWER = to lower the forks

- NEUTRAL = to move the load

- RAISE = to raise the forks

If the forks elevate while pumping in the NEUTRAL

position, turn the setting screw clockwise until pumping

the handle does not raise the forks and the NEUTRAL

position functions correctly.

1. If the forks descend while pumping in the NEUTRAL

position, turn the setting screw counterclockwise until

the forks do not lower.

2. If the forks do not descend when the control lever

is in the LOWER position, turn the setting screw

clockwise until raising the control lever lowers the

forks. Then check the NEUTRAL position as per step 1

and 2.

3. If the forks do not lift while pumping in the RAISE

position, turn the setting screw counterclockwise

until the forks elevate while pumping in the RAISED

position. Then check the NEUTRAL and LOWER

positions as per steps 1, 2 and 3.

NOTE: When viewing the truck from the handle

side, the setting screw is located on the right

side of the pump above the right wheel. The

truck will lower faster or slower depending on

how far in or out the screw is adjusted.

Figure 1

MODELH-2185H-2186

Capacity5,500 lbs.5,500 lbs.

Max. Fork Height7.5"7.5"

Min. Fork Height3"3"

Fork Length48"48"

Overall Fork Width27"27"

Fork Wheel Diameter3" Nylon3" Nylon

Steering Wheel Diameter7" Nylon7" Nylon

Net Weight173 lbs.157 lbs.

Para Español, vea páginas 4-6.

Pour le français, consulter les pages 7-9.
