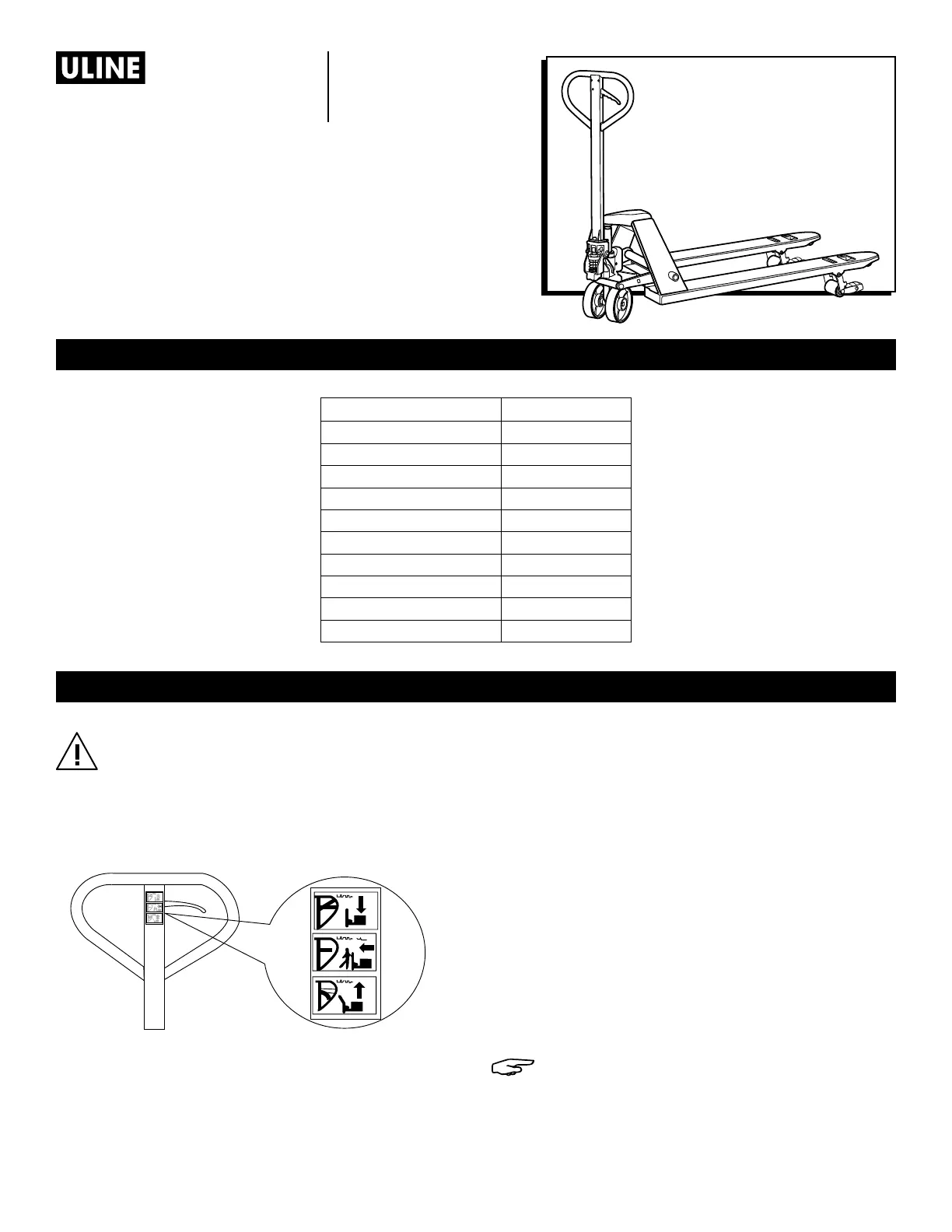

PAGE 1 OF 9 0325 IH-3029
MULTI-DIRECTIONAL
PALLET TRUCK
1-800-295-5510
uline.com
H-3029
MODELH-3029
Standard Capacity5,500 lbs.
Lateral Capacity3,300 lbs.
Max. Fork Height8"
Min. Fork Height3"
Fork Length48"
Overall Fork Width27"
Fork Wheel Diameter3" Polyurethane
Lateral Wheel Diameter2.5" Nylon
Steering Wheel DIameter7" Polyurethane
Net Weight160 lbs.
OPERATION
TECHNICAL DATA
WARNING! Operator must read and understand
instructions here and on truck prior to use.
On the handle of the pallet truck, you will find the control
lever, which can be set in three positions. (See Figure 1)
- DOWN = to lower the forks
- NEUTRAL = to move the load
- UP = to raise the forks
If the forks elevate while pumping in the NEUTRAL
position, turn the setting screw clockwise until pumping
the handle does not raise the forks and the NEUTRAL
position functions correctly.
1. If the forks descend while pumping in the NEUTRAL
position, turn the setting screw counter-clockwise
until the forks do not lower.
2. If the forks do not descend when the control lever is
in the DOWN position, turn the setting screw clockwise
until raising the control lever lowers the forks. Then
check the NEUTRAL position as per steps 1 and 2.
3. If the forks do not lift while pumping in the UP
position, turn the setting screw counter-clockwise
until the forks elevate while pumping in the UP
position. Then check the NEUTRAL and DOWN
position as per steps 1, 2 and 3.
NOTE: When viewing the truck from the handle
side, the setting screw is located on the right
side of the pump above the right wheel. The
truck will lower faster or slower depending on
how far in or out the screw is adjusted.
Figure 1
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
