PAGE 1 OF 60521 IH-4455
1-800-295-5510
uline.com
π H-4455
MOBILE BLUEPRINT RACK
1. Position Frame Extension with holes toward the floor.
Insert Frame Extension into the short end of the Side
Frame tubes. (See Figure 1)
2. Slide posts of Upper Rack into the long end of the
Side Frame tubes. (See Figure 1)
3. Insert Knobs into upper part of Side Frames and
adjust to desired height. Insert Set Screws into lower
part of Side Frames and adjust to desired depth. Use
Allen Wrench to lock in position. (See Figure 1)
4. Attach Lower Spreader Bar to Side Frames using two
Screws. Fully tighten screws to secure bar in position.
(See Figure 1)
5. Install Casters to underside of frame by carefully
screwing them in. Position both Locking Casters at
the front of the frame by inserting into the frame
extension. (See Figure 1)
6. Insert End Caps into the Upper Rack. (See Figure 1)
ASSEMBLY
PARTS
Allen Wrench (Included)11mm Wrench
TOOLS NEEDED
Upper Rack x 1Lower Spreader
Bar x 1
Side Frame x 2Frame
Extension x 1
Pivot Hanger x 12
Swivel
Caster x 2
Locking Swivel
Caster x 2
Set Screw x 2
Screw x 2
End Cap x 2
Knob x 2

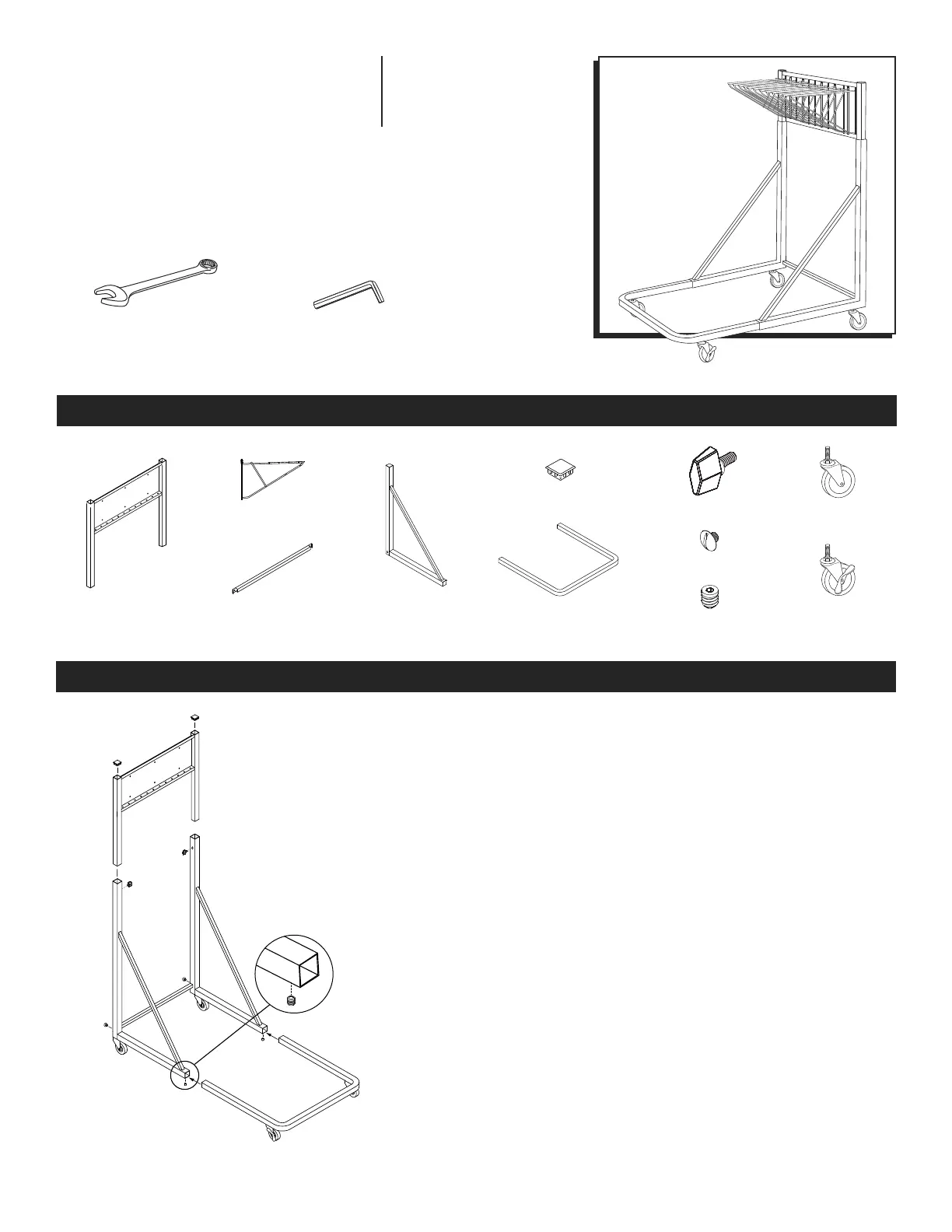

Figure 1
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
