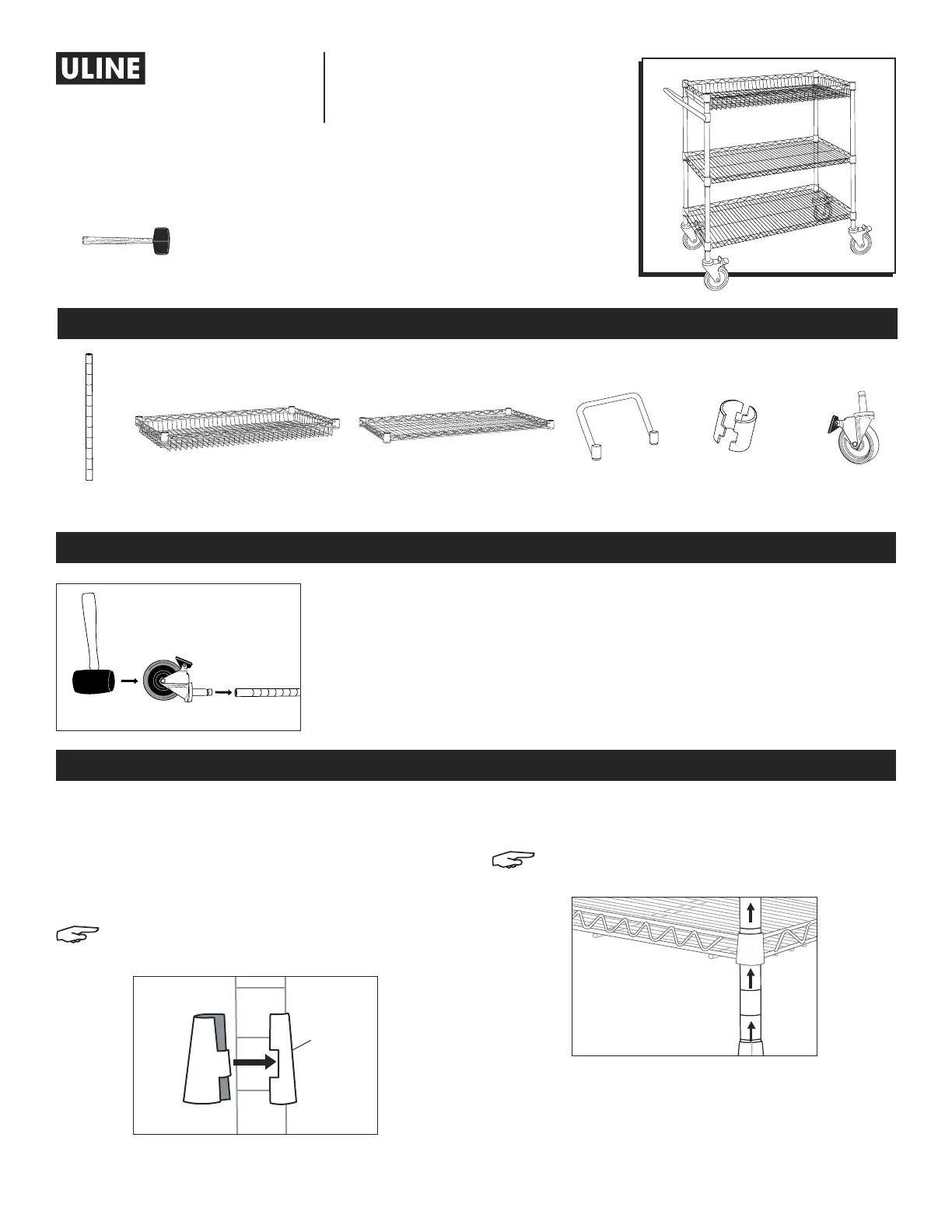

PAGE 1 OF 6 1122 IH-10385

WIRE BASKET CARTS

1-800-295-5510

uline.com

H-10385, H-10386

H-10387

1. Start with the lowest shelf. Snap the interlocking

pieces of a shelf support (wide end down) around

the post at the lowest groove where shelf is to be

located. Slide the support up or down until it snaps

onto the groove. Add a shelf support to the same

place on the remaining posts. (See Figure 2)

NOTE: NSF requires food service applications to

keep the lowest shelf at least 6" above the floor.

2. Slide post through underside of shelf until shelf slides

firmly over supports. (See Figure 3)

NOTE: Shelf should be placed so 1" lip faces

upward.

Handle x 1Basket x 1Shelf x 2

PARTS

Caster x 4Shelf Support

x 14 Sets

TOOL NEEDED

Rubber Mallet

CASTER INSTALLATION

ASSEMBLY

03

04

05

06

07

08

09

Figure 2

Figure 1

Figure 3

TO INSTALL CASTERS

1. Make sure post is positioned as shown. (See Figure 1)

2. Engage the wheel brakes to keep casters from rolling during assembly. Use

a rubber mallet to tap caster stems into posts. (See Figure 1)

Shelf

Support

Post x 4

Para Español, vea páginas 3-4.

Pour le français, consulter les pages 5-6.
