INSTRUCTION MANUAL

STANDARD MICROPHONE UNIT

LONG MICROPHONE UNIT

TS-923

TS-924

Thank you for purchasing TOA’s Standard microphone unit or Long microphone unit.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. GENERAL DESCRIPTION

TOA’s TS-923 and TS-924 Microphones are dedicated

components of the Infrared Conference System’s Chairman

Unit and Delegate Unit. Their mic heads are equipped with

illuminated display rings that allow the status of the units

in use to be monitored at a glance. Their goosenecks

have two exible parts, making it possible to adjust the

microphones to an optimal position for the user.

2. INSTALLATION

URL: https://www.toa.jp/

133-07-00135-01

Traceability Information for Europe

Manufacturer:

TOA Corporation

7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg, Germany

3. SPECIFICATIONS

Model No.TS-923TS-924

TypeElectret condenser microphone

DirectivityUnidirectional

Rated Impedance1.4 kΩ

Rated Sensitivity–37 dB (1 kHz, 0 dB = 1 V/Pa)

LED IndicatorSpeech indicator (ring type) Red

Frequency Response100 Hz – 13 kHz

Output ConnectorCombined type of XLR-4-32

Flexible Part2 parts

Operating Temperature0 ºC to 40 ºC (32 ºF to 104 ºF)

Operating Humidity90 %RH or less (no condensation)

FinishBody: Aluminum, black, semi-gloss, paint

Shaft: Copper alloy, black, semi-gloss, paint

Length470 mm (1.54 ft)620 mm (2.03 ft)

Weight130 g (0.29 lb)150 g (0.33 lb)

Applicable Unit (option)Chairman unit: TS-821, TS-921, TS-811, TS-911

Delegate unit: TS-822, TS-922, TS-812, TS-912

Note: The design and specications are subject to change without notice for improvement.

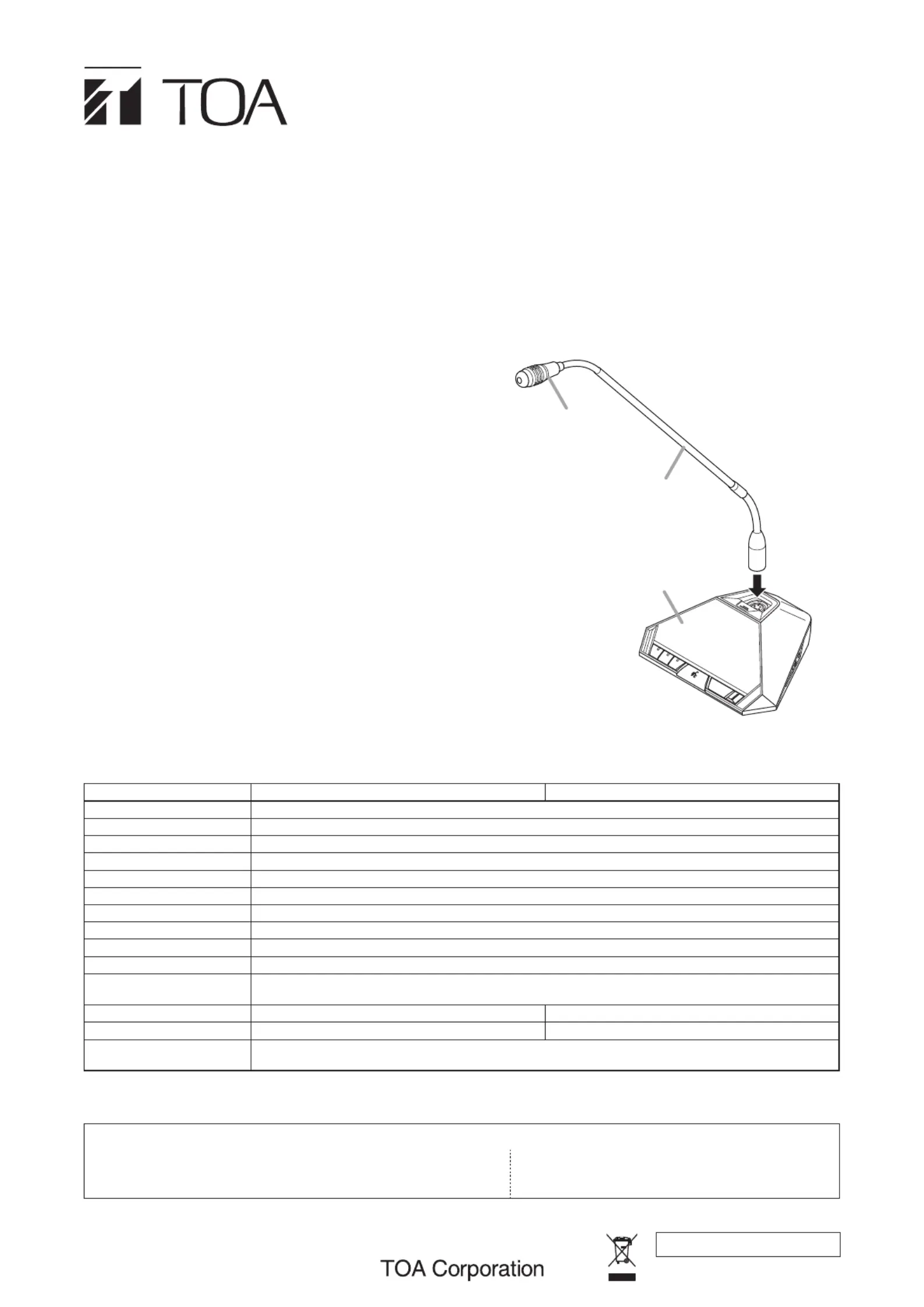

Chairman unit

(TS-821/921/811/911) or

Delegate unit

(TS-822/922/812/912)

Microphone

(TS-923/924)

Microphone

in-use indicator
