Toa RS-143 Handleiding
Pagina's 4 Intercomsysteem
Bekijk de handleiding van Toa RS-143 gratis online of download de PDF. 13 mensen vonden deze handleiding nuttig. Vraag over dit model? Stel een vraag
3P removable terminal plug
(supplied with the Substation
interface unit)
Substation interface unit
2-core shielded cable
2-core shielded cable
High-impedance speaker
(Impedance: 600 Ω or more)
Switch panel
(Figure shows the RS-140.)
Brown (A)
Red (B)
Orange (C)
Yellow (C+)
Green (B+)
Blue (A+)
Blue (COM)
Green (HOT)
N.C.
Purple (H)
Brown
Red
Orange
To the substation connection terminal
1. GENERAL DESCRIPTION
The RS-140, RS-143, and RS-144 are substations to be connected to the 2-Core Shielded Substation
Interface Unit. The RS-141, designed exclusively for indoor-use in combination with the RS-140, RS-143, or
RS-144, is an option handset to make handset conversations.
For operation of the units, refer to the N-8000 series instruction manual.
Warning
This is a class A product. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.

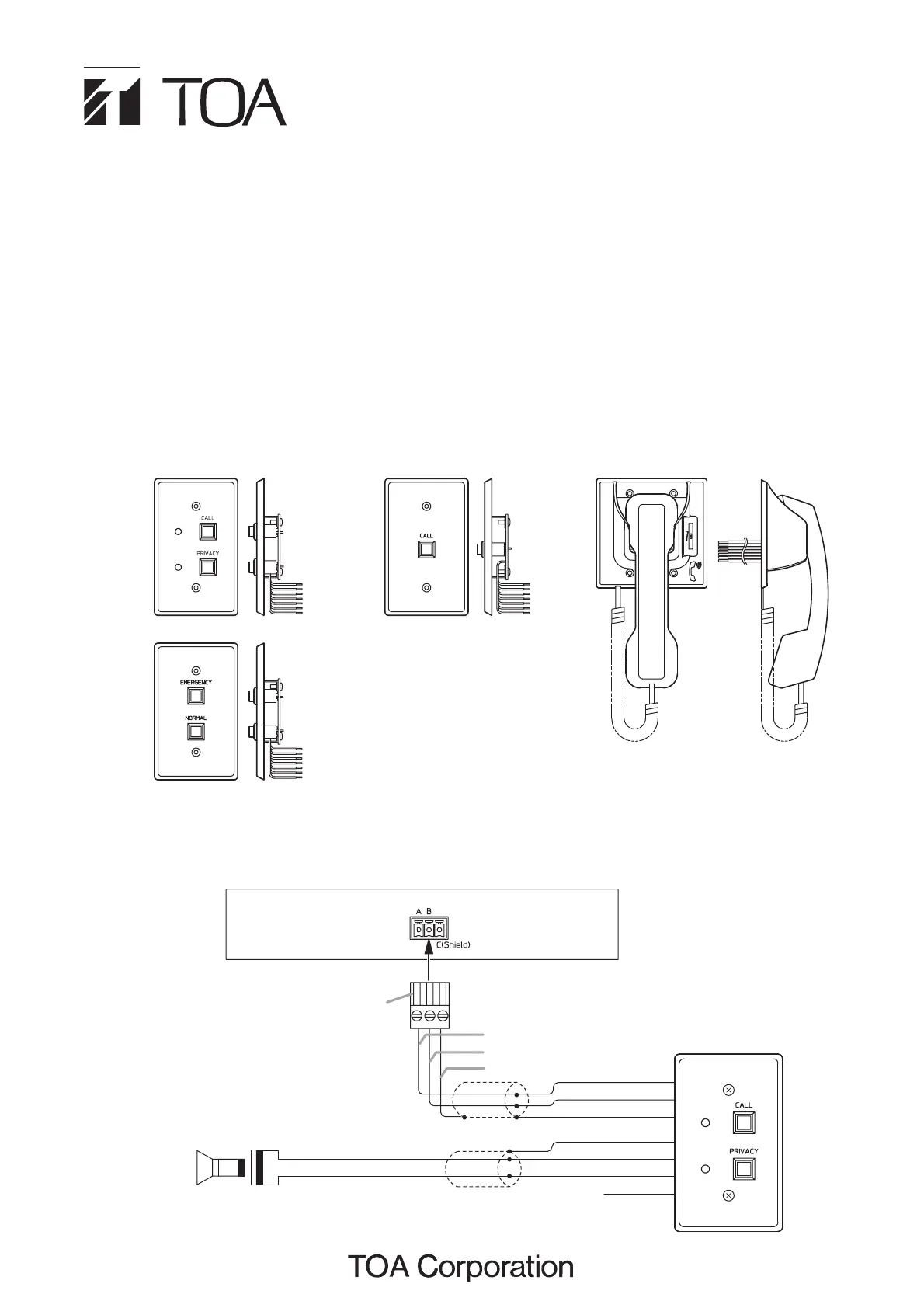

2. APPEARANCE
RS-140, RS-143, RS-144
RS-141
SWITCH PANELS
OPTIONHANDSET
INSTALLATION MANUAL
Note
Cut out the unused Wire (purple) to
avoid short-circuiting.
133-41-084-20
3. CONNECTIONS
3.1. Switch Panel Connections (When the Option Handset is not used)
]341-SR[]041-SR[
[RS-144]
[RS-141]
Product specificaties
| Merk: | Toa |
| Categorie: | Intercomsysteem |
| Model: | RS-143 |
| Kleur van het product: | Roestvrijstaal |
| Gewicht: | 80 g |
| Breedte: | 70 mm |
| Diepte: | 28.6 mm |
| Hoogte: | 115 mm |
| Aantal per verpakking: | 1 stuk(s) |
| Compatibiliteit: | N-8000RS, N-8010RS |
| Bedrijfstemperatuur (T-T): | 0 - 40 °C |
