3P removable terminal plug

(supplied with the Substation

interface unit)

Substation interface unit

2-core shielded cable

2-core shielded cable

High-impedance speaker

(Impedance: 600 Ω or more)

Switch panel

(Figure shows the RS-140.)

Brown (A)

Red (B)

Orange (C)

Yellow (C+)

Green (B+)

Blue (A+)

Blue (COM)

Green (HOT)

N.C.

Purple (H)

Brown

Red

Orange

To the substation connection terminal

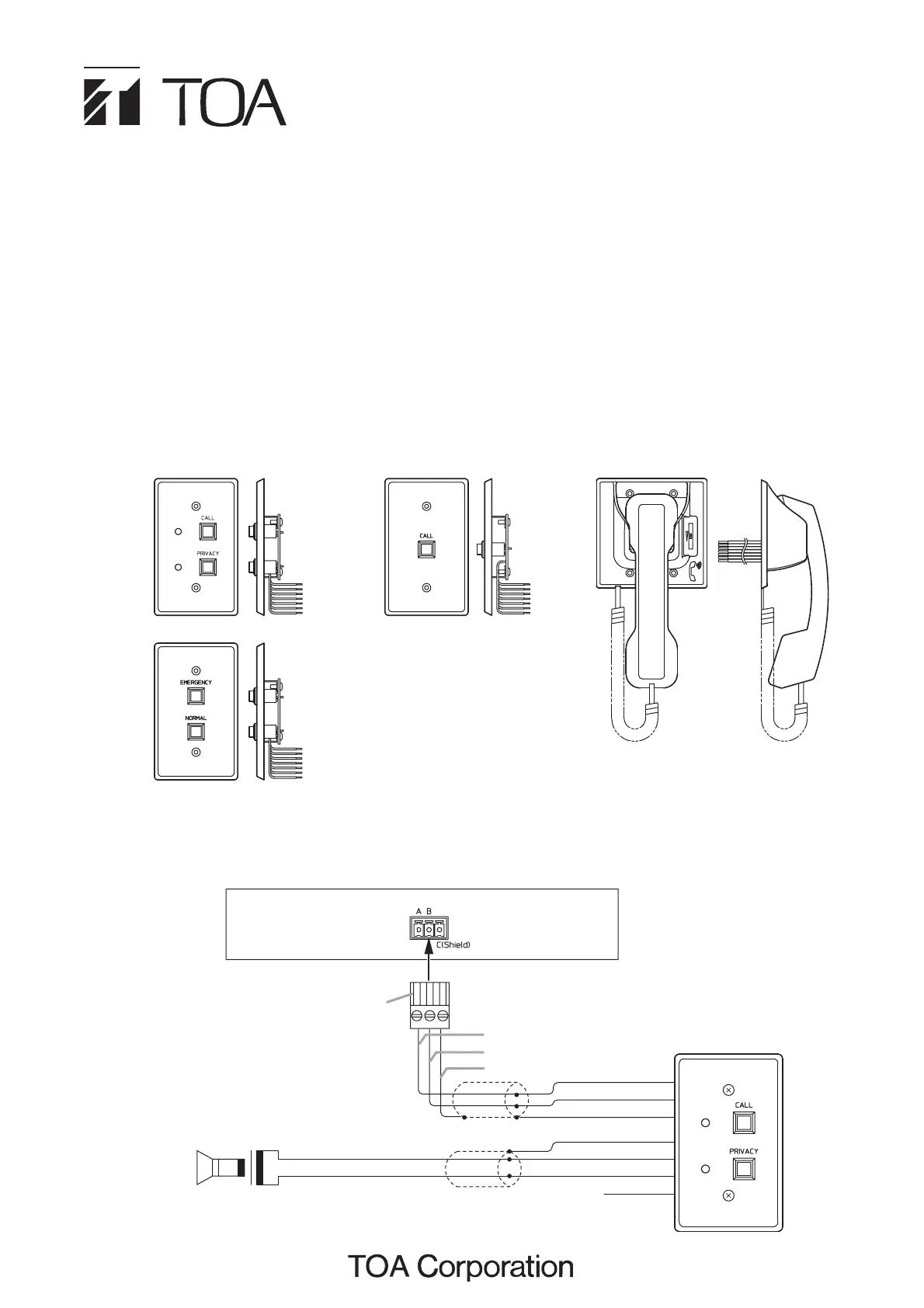

1. GENERAL DESCRIPTION

The RS-140, RS-143, and RS-144 are substations to be connected to the 2-Core Shielded Substation

Interface Unit. The RS-141, designed exclusively for indoor-use in combination with the RS-140, RS-143, or

RS-144, is an option handset to make handset conversations.

For operation of the units, refer to the N-8000 series instruction manual.

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case

the user may be required to take adequate measures.

2. APPEARANCE

RS-140, RS-143, RS-144

RS-141

SWITCH PANELS

OPTIONHANDSET

INSTALLATION MANUAL

Note

Cut out the unused Wire (purple) to

avoid short-circuiting.

133-41-084-20

3. CONNECTIONS

3.1. Switch Panel Connections (When the Option Handset is not used)

]341-SR[]041-SR[

[RS-144]

[RS-141]
