1

theben-eltimo 020 Astro top3

0200170

307610

08.02.2022

Digital plug-in

time switch

EN

1. Safety information

To rule out the risk of electrical shock or re,

protect the time switch from moisture and heat!

Prior to start-up and using the product, read and

observe all the operating instructions.

!

Use a single mains socket (230 V~, 50 Hz, earthed) for the

power supply.

!

Do not plug time switches into each other.

•

The time switches conform to EN 60669-2-1 if correctly

installed and type 1 BSTU in accordance with IEC/

EN 60730-2-7.

•

Power reserve (6 years) is reduced when Bluetooth

OBELISK top3 is connected (in battery mode).

2. Proper use

•

This digital plug-in astro time switch with weekly pro-

gram is suitable for indoor use (oor lamp, aquarium,

Christmas lights, etc.)

•

Astronomical switch function (automatic calculation of

sunrise/sunset times for the whole year)

•

Interface for Bluetooth OBELISK top3 (+ app)

•

For earthed sockets (plug type F)

•

Only use in dry, enclosed rooms

!

Do not use on safety devices, e.g. escape route doors, re

safety equipment, etc.

3. Installation and connection

Plug the time switch into a 230 V earthed wall socket and

plug the selected device into the socket (F) on the time

switch.

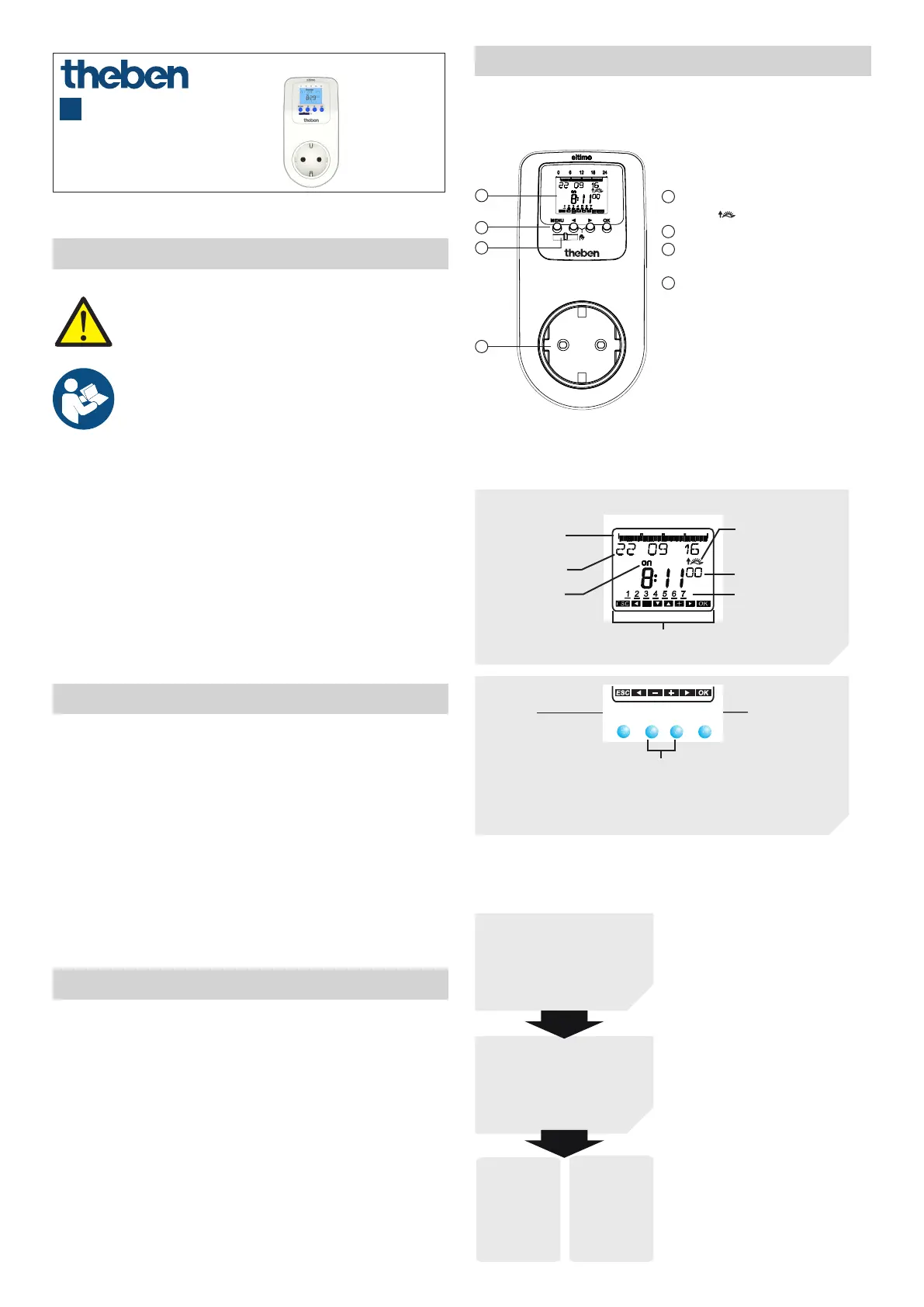

4. Device description

Digital plug-in time switch

1

2

3

4

1

Display with date, time, week days,

astro ( ) etc.

4 buttons to operate the device

Interface for OBELISK top3 memory

card (9070130)

Socket F (and plug on the rear)

2

3

4

Display and buttons





06

12

18

24

MENUOK





OKMENU

Programmed

switching times

Date display

Channel status

On, Off

Time display

Sunrise/sunset

display

Days of the week

from 1 to 7

Display of the active buttons

with the relevant function

– Activate display

– Open menu

– Cancel menu

– ESC

(leave menu)

– Save selection

– Confirm selection



Options

are displayed

Operating instructions

YES

Confirmation

Press

OK

NO

Modify/

Change

Press

t u

1. Read text line

text/symbol

represents query

2. Make a decision
