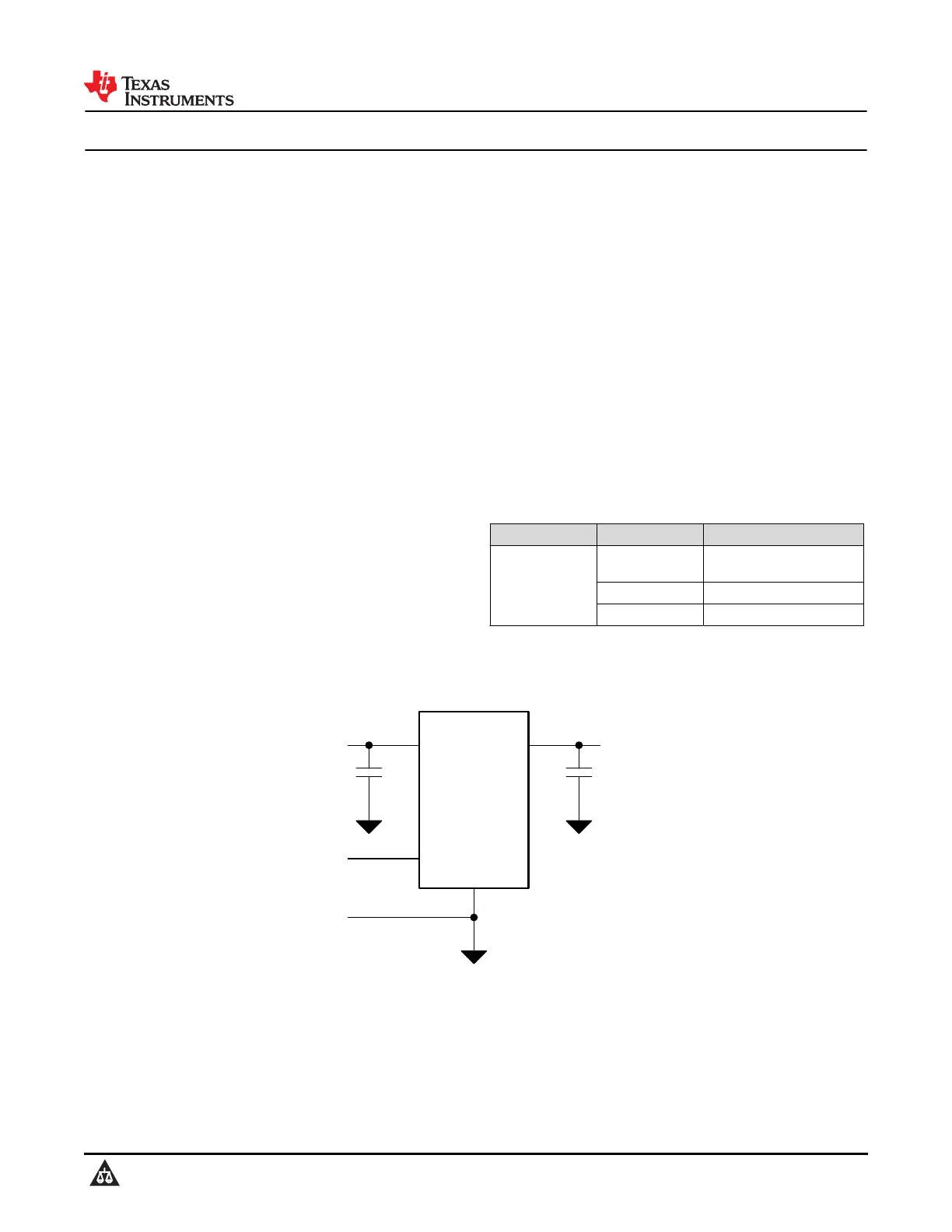

LP5907 250mA, Low-Noise, Low-I

Q

LDO

1 Features

•For a more updated portfolio device, see the

TPS7A20

•Input voltage range: 2.2V to 5.5V

•Output voltage range: 1.2V to 4.5V

•Stable with 1-µF ceramic input and output

capacitors

•No noise bypass capacitor required

•Remote output capacitor placement

•Thermal-overload and short-circuit protection

•Operating junction temperature: –40°C to 125°C

•Low output voltage noise: < 6.5µV

RMS

•PSRR: 82dB at 1kHz

•Output voltage tolerance: ±2%

•Very low I

Q

(enabled): 12μA

•Low dropout: 120mV (typical)

•Create a custom design using the LP5907 with the

WEBENCH

®

Power Designer

2 Applications

•Smartphones

•Tablets

•Communications equipment

•Digital still cameras

•Factory automation

3 Description

The LP5907 is a low-noise LDO that can supply

up to 250mA output current. Designed to meet the

requirements of RF and analog circuits, the LP5907

provides low noise, high PSRR, low quiescent current,

and low line or load transient response figures. Using

innovative design techniques, the LP5907 offers

class-leading noise performance without a noise

bypass capacitor and the ability for remote output

capacitor placement.

The device is designed to work with a 1µF input and

a 1µF output ceramic capacitor (no separate noise

bypass capacitor is required).

This device is available with fixed output voltages

from 1.2V to 4.5V in 25mV steps. Contact Texas

Instruments Sales for specific voltage option needs.

Package Information

PART NUMBERPACKAGE

(1)

PACKAGE SIZE

(2)

LP5907

YKE, YKG, YKM,

YCR (DSBGA, 4)

0.685mm × 0.685mm

DBV (SOT-23, 5)2.9mm × 2.8mm

DQN (X2SON, 4)1mm × 1mm

(1)For more information, see the Mechanical, Packaging, and

Orderable Information.

(2)The package size (length × width) is a nominal value and

includes pins, where applicable.

EN

INOUT

GND

INPUT

ENABLE

GND

OUTPUT

LP5907

1 F1 F

Simplified Schematic

LP5907

SNVS798Q – APRIL 2012 – REVISED JULY 2025

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
