LMV341-Q1, LMV344-Q1 Rail-to-Rail Output CMOS Operational Amplifiers

1 Features

•Qualified for Automotive Applications

•2.7V and 5V Performance

•Rail-to-Rail Output Swing

•Input Bias Current: 1pA typical

•Input Offset Voltage: 0.25mV typical

•Low Supply Current: 100μA typical

•Gain Bandwidth: 1MHz typical

•Slew Rate: 1V/μs typical

•Turn-On Time From Shutdown: 5μs typical

•Input Referred Voltage Noise (at 10kHz):

20nV/√Hz

2 Description

The LMV341 and LMV344 devices are single and

quad CMOS operational amplifiers, respectively, with

low voltage, low power, and rail-to-rail output swing

capabilities. The PMOS input stage offers an ultra-

low input bias current of 1pA (typical) and an

offset voltage of 0.25mV (typical). The single supply

amplifier is designed specifically for low-voltage (2.7V

to 5V) operation, with a wide common-mode input

voltage range that typically extends from –0.2Vto 0.8V

from the positive supply rail. Additional features are

a 20nV/√ Hz voltage noise at 10kHz, 1MHz unity-

gain bandwidth, 1V/μs slew rate, and 100μA current

consumption per channel.

An extended industrial temperature range from –40°C

to 125°C makes this device an excellent choice for

automotive applications.

V

+

V

O

−

+

V

I

−

+

C = 200 pF

V

+

Sample

Clock

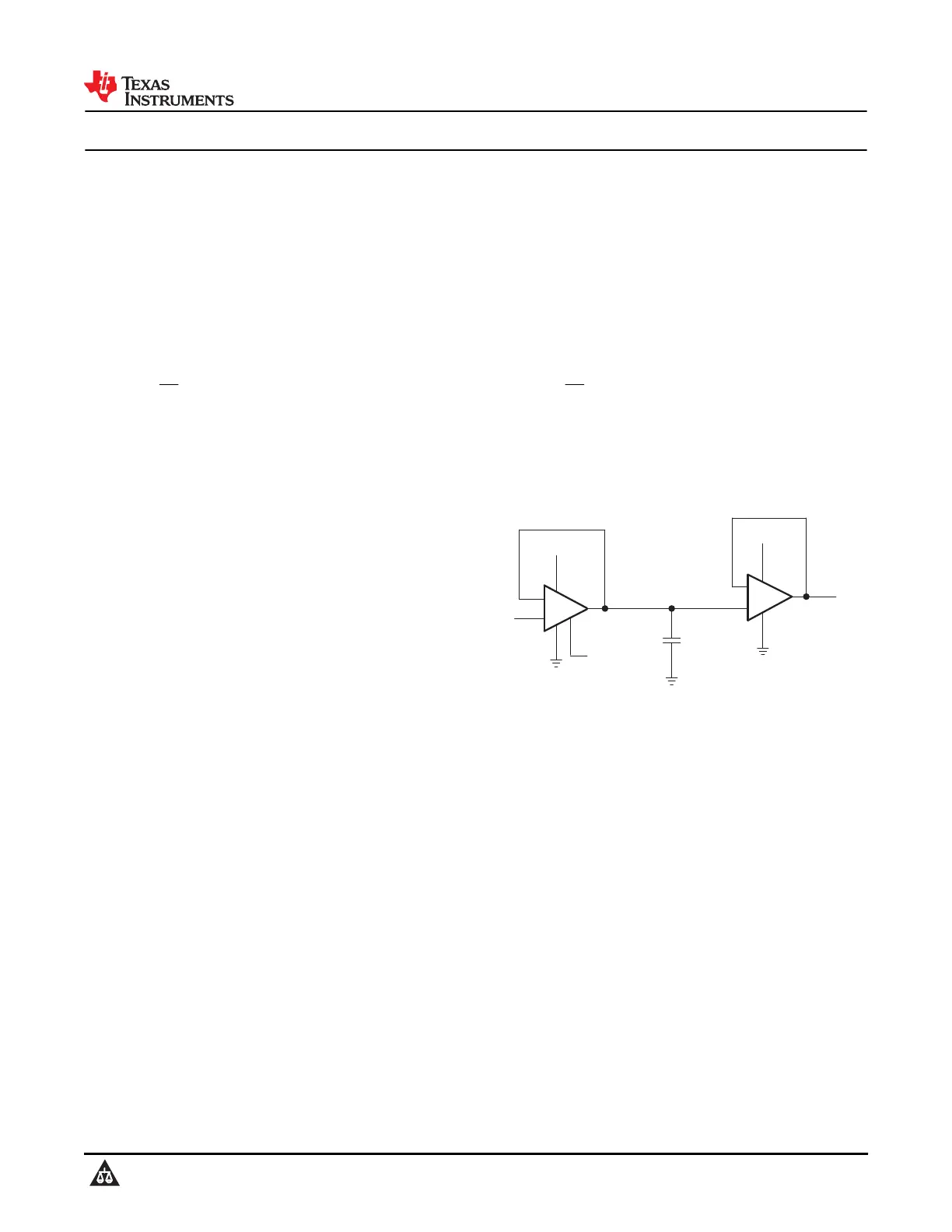

Application Circuit: Sample-and-Hold Circuit

LMV341-Q1, LMV344-Q1

SGLS342D – JULY 2006 – REVISED JULY 2025

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
