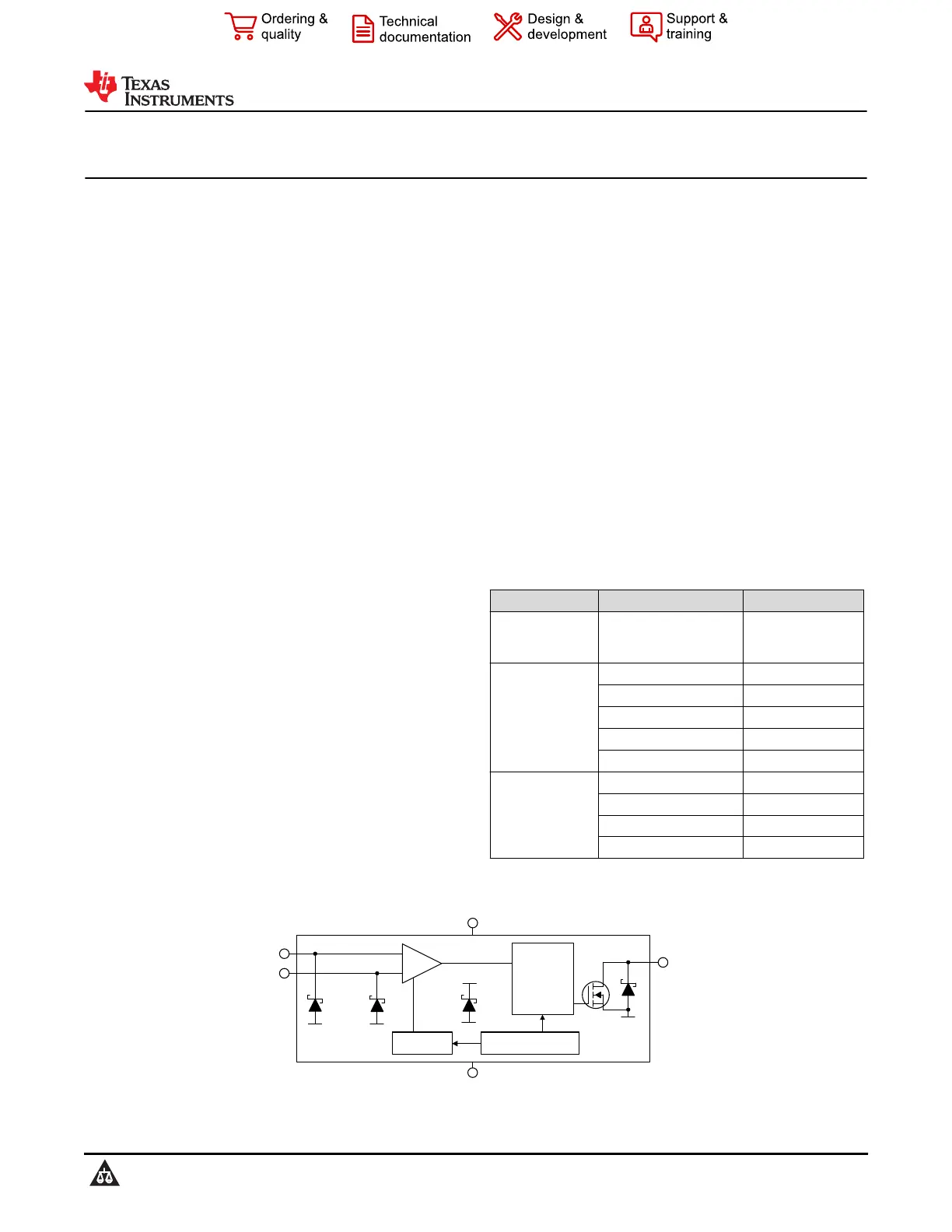

TL331LV-Q1, TL391LV-Q1, LM393LV-Q1 and LM339LV-Q1 Low Voltage Automotive

Rail to Rail Input Comparators

1 Features

•Qualified for automotive applications

•AEC-Q100 qualified with the following results:

–Device temperature grade 1: –40°C to 125°C

ambient operating temperature range

–Device HBM ESD classification level 2

–Device CDM ESD classification level C5

•1.65 V to 5.5 V supply range

•Rail-to-Rail input with Failsafe

•Low input offset voltage 400 μV typical

•600ns typical propagation delay

•Low quiescent current 25 µA/Ch typical

•Low input bias current 5 pA typical

•Open-drain output

•Full -40°C to +125°C temperature range

•Power-On-Reset (POR) for known start-up

•2 kV ESD protection

•Improved replacement for TL331-Q1, LM393-Q1 &

LM339-Q1 family for V

CC

≤ 5 V.

•Alternate pinout for single (TL391-Q1)

2 Applications

•Vacuum robot

•Single phase UPS

•Server PSU

•Cordless power tool

•Wireless infrastructure

•Appliances

•Building automation

•Factory automation & control

•Motor drives

•Infotainment & cluster

3 Description

The LV device family consists of single, dual and quad

independent voltage comparators that operate from a

wide supply voltage range. The LV devices can drop-

in replace the standard TL331-Q1, LM2xx, LM3xx and

LM290x-Q1 comparator family in low voltage (≤ 5

V) applications for improved performance and added

features.

The LV devices include a Power-On-Reset (POR)

feature to make sure the output is in a High-Z state

until the minimum supply voltage has been reached to

prevent output transients during power-up and power-

down. The family also feature Rail to Rail inputs that

can go up to 6 V without damage or phase inversion.

The LV devices are specified for the temperature

range of -40°C to +125°C, which covers the ranges

of the TL331-Q1, LM2xx-Q1, LM3xx and LM290x-Q1

comparator families.

Device Information

PART NUMBERPACKAGE

(1)

BODY SIZE (NOM)

TL331LV-Q1,

TL391LV-Q1

(Single)

SOT-23 (5)1.60 mm x 2.90 mm

LM393LV-Q1

(Dual)

SOIC (8)3.91 mm × 4.90 mm

TSSOP (8)3.00 mm × 4.40 mm

VSSOP (8)3.00 mm × 3.00 mm

WSON (8)2.00 mm × 2.00 mm

SOT-23 (8)1.60 mm × 2.90 mm

LM339LV-Q1

(Quad)

SOIC (14)3.91 mm × 8.65 mm

TSSOP (14)4.40 mm × 5.00 mm

SOT-23 (14)4.20 mm x 2.00 mm

WQFN (16) (Preview)3.00 mm × 3.00 mm

(1)For all available packages, see the orderable addendum at

the end of the data sheet.

OUT

+

-

IN+

IN-

BiasPower-On-Reset

V+

GND

SNAPBACK

ESD

CLAMPS

GND

GND

GND

Output

Control

GND

V+

SUPPLY

CLAMP

Block Diagram

TL331LV-Q1, TL391LV-Q1, LM393LV-Q1, LM339LV-Q1

SNOSDB3E – JUNE 2020 – REVISED NOVEMBER 2023

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. UNLESS OTHERWISE NOTED, this document contains PRODUCTION

DATA.
