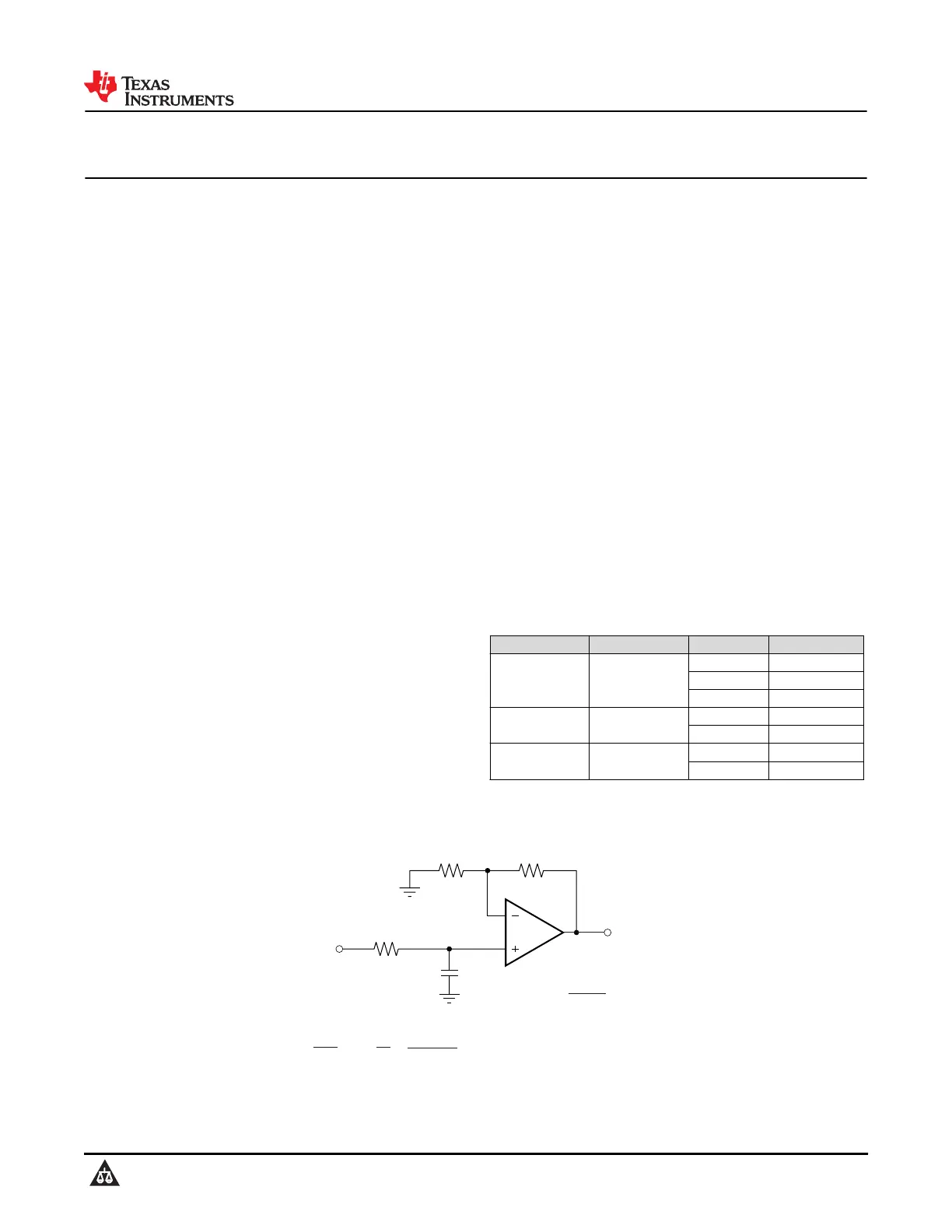

LM2902-Q1, LM2902B-Q1, and LM2902BA-Q1 Industry-Standard Quad Operational

Amplifiers for Automotive Applications

1 Features

•AEC Q-100 qualified for automotive applications

–Temperature grade 1: –40°C to +125°C

–Device HBM ESD classification 2

–Device CDM ESD classification C5

•Wide supply range of:

–3V to 36V (LM2902B-Q1 and LM2902BA-Q1)

–3V to 32V (LM2902KV and LM2902KAV)

–3V to 26V (all other products)

•Input offset voltage maximum at 25°C of:

–2mV (LM2902BA-Q1 and LM2902KAV)

–3mV (LM2902B-Q1)

–7mV (all other products)

•Internal RF and EMI filter (LM2902B-Q1 and

LM2902BA-Q1)

•Supply-current of 175µA per channel, typical

•Unity-gain bandwidth of 1.2MHz

•Common-mode input voltage range includes V–

•Differential input voltage range equal to maximum-

rated supply voltage

2 Applications

•Automotive lighting

•Body electronics

•Automotive head unit

•Telematics control unit

•Emergency call (eCall)

•Passive safety: brake system

•Electric vehicle / hybrid electric:

–Inverter and motor control

–On-board (OBC) and wireless charger

–Battery management system (BMS)

3 Description

The LM2902-Q1, LM2902B-Q1, and LM2902BA-Q1

are industry-standard operational amplifiers that have

been qualified for automotive use in accordance to

the AEC-Q100 specifications. The LM2902B-Q1 and

LM2902BA-Q1 are the next-generation versions of

the LM2902-Q1, which include four high-voltage (36V)

operational amplifiers (op amps). The LM2902B-Q1

and LM2902BA-Q1 provide outstanding value for

cost-sensitive applications, with features including

low offset (3mV and 2mV maximum, respectively),

common-mode input range to ground, and high

differential input voltage capability.

The LM2902B-Q1 and LM2902BA-Q1 simplify circuit

design with enhanced features such as unity-gain

stability, lower offset voltage of 0.3mV (typical), and

lower quiescent current of 240µA (typical). High ESD

(1kV, HBM) and integrated EMI and RF filters enable

the LM2902B-Q1 and LM2902BA-Q1 devices to be

used in the most rugged, environmentally challenging

applications for the automotive marketplace.

Device Information

PART NUMBER

(1)

CHANNEL COUNTPACKAGEPACKAGE SIZE

(2)

LM2902B-Q1Quad

D (SOIC, 14)8.65mm × 6mm

PW (TSSOP, 14)5mm × 6.4mm

RTE (WQFN, 16)3mm × 3mm

LM2902BA-Q1Quad

D (SOIC, 14)8.65mm × 6mm

PW (TSSOP, 14)5mm × 6.4mm

LM2902-Q1Quad

D (SOIC, 14)8.65mm × 6mm

PW (TSSOP, 14)5mm × 6.4mm

(1)For more information, see Section 11.

(2)The package size (length × width) is a nominal value and

includes pins, where applicable.

R

G

R

F

R

1

C

1

V

IN

V

OUT

= 1 +

V

V

OUT

IN

R

R

F

G

1

1 + sRC

11

((

((

1

2pRC

11

f=

-3dB

Single-Pole, Low-Pass Filter

LM2902-Q1, LM2902B-Q1, LM2902BA-Q1

SGLS178J – AUGUST 2003 – REVISED JANUARY 2026

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
