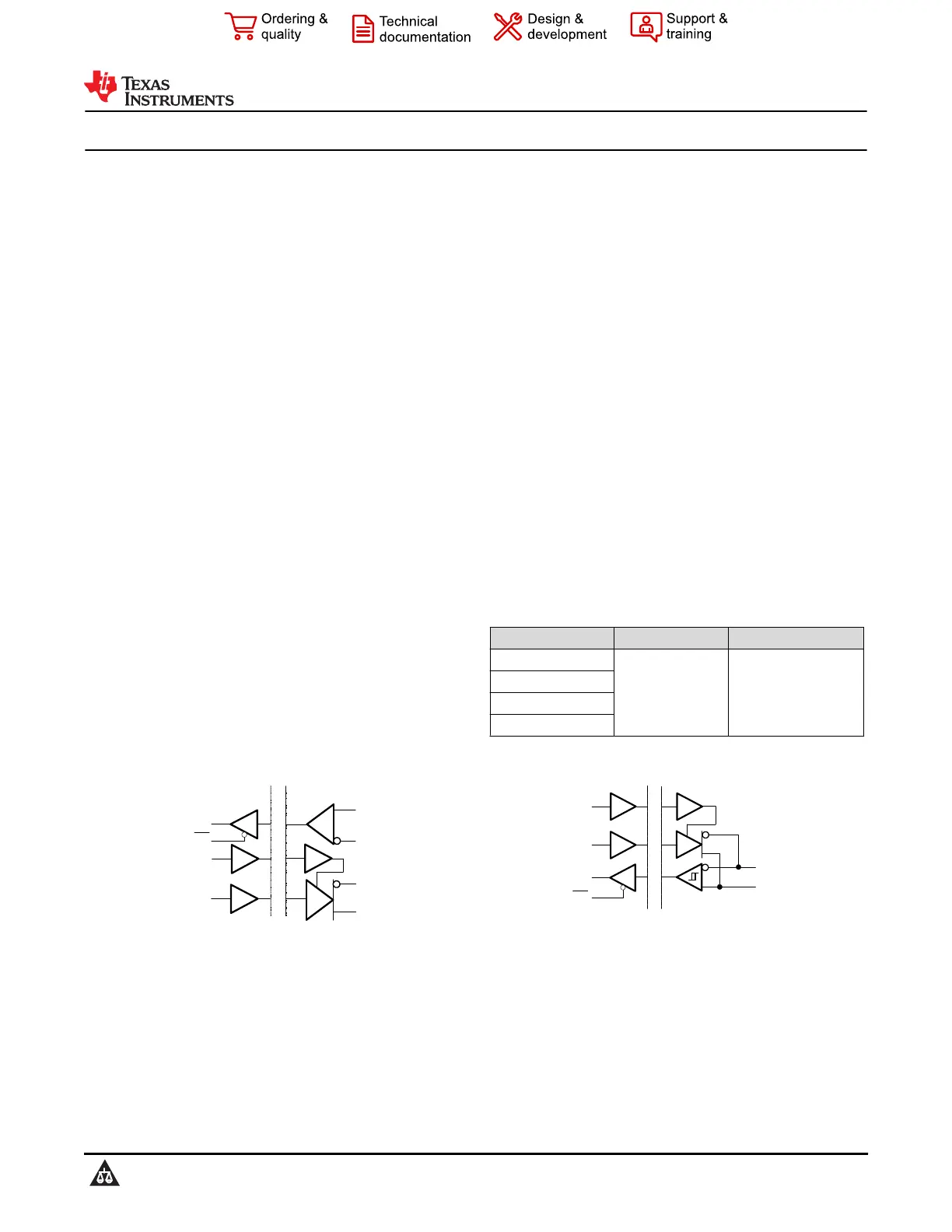

ISO308x Isolated 5-V Full- and Half-Duplex RS-485 Transceivers

1 Features

•Meets or exceeds TIA/EIA RS-485 requirements

•Signaling rates up to 20 Mbps

•1/8 unit load – up to 256 nodes on a bus

•Thermal shutdown protection

•Low bus capacitance – 16 pF (typical)

•50 kV/μs typical transient immunity

•Fail-safe receiver for bus open, short, idle

•3.3-V inputs are 5-V tolerant

•Bus-pin ESD protection

–12-kV HBM between bus pins and GND2

–6-kV HBM between bus pins and GND1

•Safety-related certifications:

–4000-V

PK

basic insulation, 560 V

PK

V

IORM

per

DIN EN IEC 60747-17 (VDE 0884-17)

–2500 V

RMS

isolation per UL 1577

–4000 V

PK

isolation per CSA 62368-1

2 Applications

•Security systems

•Chemical production

•Factory automation

•Motor and motion control

•HVAC and building automation networks

•Networked security stations

3 Description

The ISO3080 and ISO3086 devices are isolated full-

duplex differential line drivers and receivers while

the ISO3082 and ISO3088 devices are isolated

half-duplex differential line transceivers for TIA/EIA

485/422 applications.

These devices are ideal for long transmission lines

because the ground loop is broken to allow for a much

larger common-mode voltage range. The symmetrical

isolation barrier of the device is tested to provide 2500

V

RMS

of isolation for 60 s per UL 1577 between the

bus-line transceiver and the logic-level interface.

Any cabled I/O can be subjected to electrical

noise transients from various sources. These noise

transients can cause damage to the transceiver or

nearby sensitive circuitry if they are of sufficient

magnitude and duration. These isolated devices can

significantly increase protection and reduce the risk of

damage to expensive control circuits.

The ISO3080, ISO3082, ISO3086, and ISO3088

device are qualified for use from –40°C to +85°C.

Device Information

(1)

PART NUMBERPACKAGEBODY SIZE (NOM)

ISO3080

SOIC (16)10.30 mm × 7.50 mm

ISO3082

ISO3086

ISO3088

(1)For all available packages, see the orderable addendum at

the end of the data sheet.

DE

5

D

6

R

3

4

RE

Y

Z

B

A

14

11

12

13

N

GALVANICISOLATIO

ISO3080, IOS3086 Function Diagram

D

R

B

A

13

12

DE

6

5

3

4

RE

GALVANICISOLATION

ISO3082, IOS3088 Function Diagram

ISO3080, ISO3082, ISO3086, ISO3088

SLOS581J – MAY 2008 – REVISED AUGUST 2023

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
