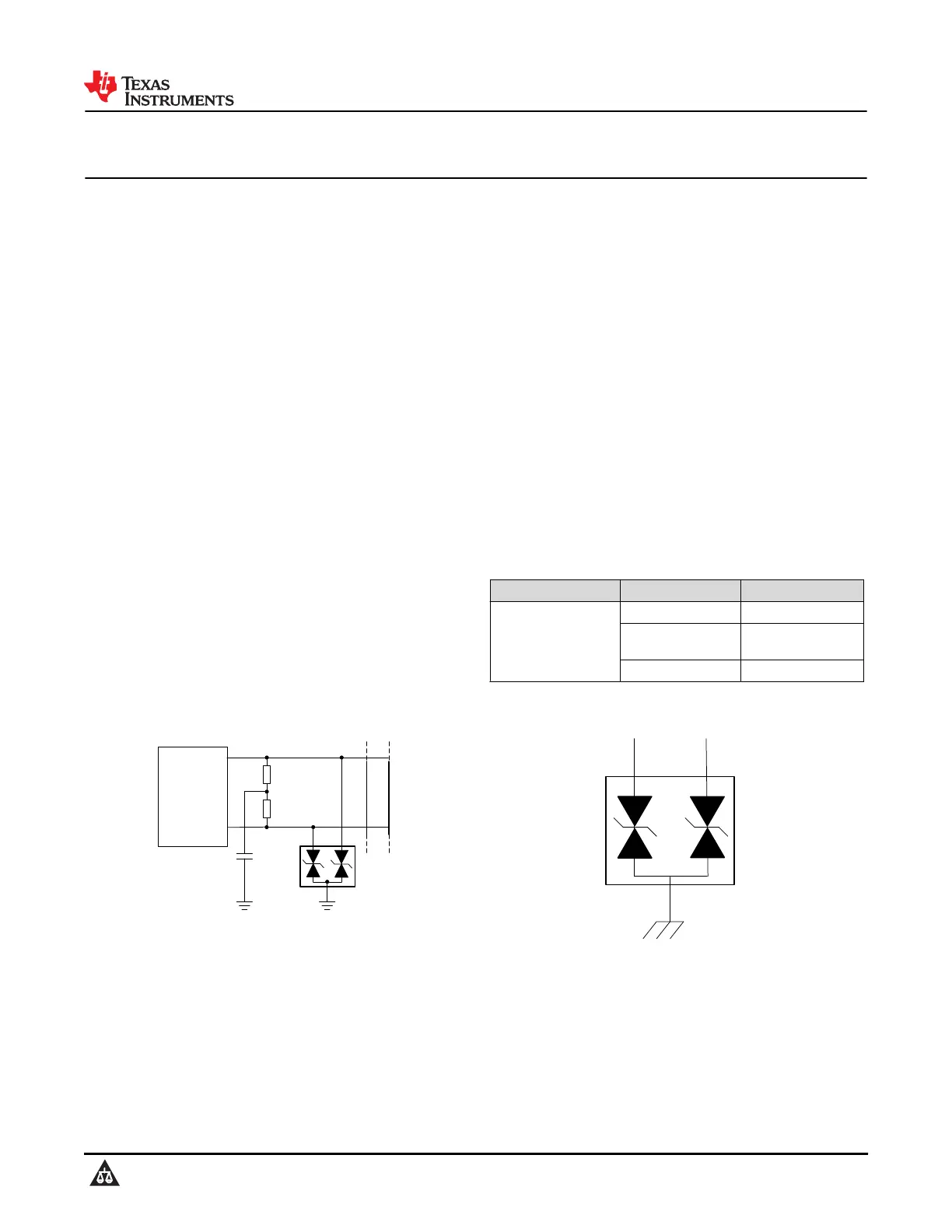

ESD752 24V, 2-Channel ESD Protection Diode in Multiple Industry Standard Packages

for In-Vehicle Networks

1 Features

•IEC 61000-4-2 level 4 ESD protection:

–±30kV contact discharge

–±30kV air-gap discharge

•Tested in compliance to IEC 61000-4-5

•24V working voltage

•Bidirectional ESD protection

•2-channel device provides complete ESD

protection with single component

•Low clamping voltage protects downstream

components

•I/O capacitance = 3pF (typical)

•SOT-23 (DBZ), SOT-SC70 (DCK), and DFN1110

(DXA) common packages available

2 Applications

•Industrial control networks:

–Smart distribution system (SDS)

–DeviceNet IEC 62026-3

–CANopen – CiA 301/302-2 and EN 50325-4

–4/20mA circuits

–PLC surge protection

–ADC surge protection

3 Description

ESD752 is a bidirectional ESD protection diode for

Controller Area Network (CAN) interface protection.

ESD752 is rated to dissipate contact ESD strikes

specified in the IEC 61000-4-2 standard. The low

dynamic resistance and low clamping voltage enables

system level protection against transient events. This

protection is key as industrial systems require a

high level of robustness and reliability for safety

applications.

This device features a low IO capacitance per

channel and a pin-out to suit two CAN bus lines

(CANH and CANL) from the damage caused by

ElectroStatic Discharge (ESD) and other transients.

Additionally, the 3pF (typical) line capacitance of

ESD752 is suitable for CAN, CANFD, CAN SiC, and

CAN-XL applications that can support data rates up to

20Mbps.

Package Information

PART NUMBERPACKAGE

(1)

BODY SIZE (NOM)

ESD752

DBZ (SOT-23, 3)2.92mm × 1.30mm

DCK (SOT SC-70,

3)

2.00mm × 1.25mm

DXA (DFN1110, 3)1.1mm × 1.0mm

(1)For all available packages, see the orderable addendum at

the end of the data sheet.

CAN

TRANSCEIVER

CANH

R

T/2

R

T/2

CANL

CAN

bus

ESD7x2

2

1

3

CG

ESD752 Typical Application

2

1

3

Functional Block Diagram

ESD752

SLVSJ54A – DECEMBER 2025 – REVISED DECEMBER 2025

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
