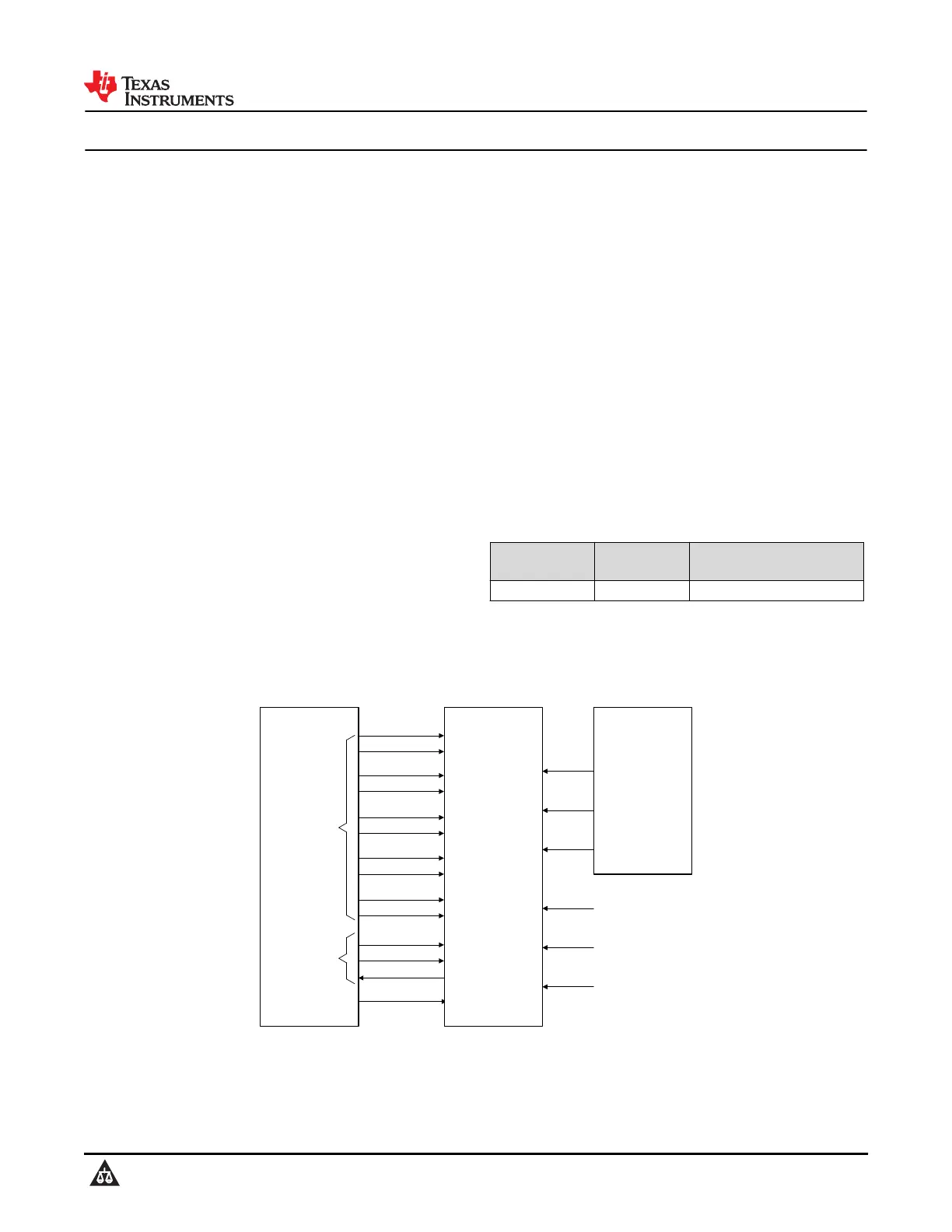

DLP160CP 0.16 HD and nHD Digital Micromirror Device

1 Features

•Ultra-compact 0.16-inch (3.965mm) diagonal

micromirror array

–nHD Configuration—Display 640x360

resolution on-screen

–HD Configuration—Display 1280x720

resolution on-screen

–5.4µm micromirror pitch

–17° micromirror tilt (relative to a flat surface)

–Side illumination for optimal efficiency and

optical engine size

–Polarization-independent aluminum micromirror

surface

•4-bit SubLVDS input data bus

•Dedicated DLPC3421 display controller and

DLPA2000, DLPA2005, or DLPA3000 PMIC/LED

driver for reliable operation

2 Applications

•Display:

–Ultra-mobile, ultra-low power pico projectors

–Phone, tablet and laptop

–Smart display

–Smart home

–Augmented reality glasses

–Informational display

3 Description

The DLP160CP digital micromirror device (DMD)

is a digitally controlled micro-opto-electromechanical

system (MOEMS) spatial light modulator (SLM).

When coupled to an appropriate optical system,

the DLP160CP DMD displays a crisp and high-

quality image or video. DLP160CP is part of

the chipset comprising the DLP160CP DMD and

DLPC3421 controller. This chipset is also supported

by the DLPA2000, DLPA2005, and DLPA3000 (HD

configuration only) PMIC/LED driver. The compact

physical size of the DLP160CP is well-suited for

portable equipment where a small form factor and

low power are important. The compact DLP160CP

DMD coupled with the controller and PMIC/LED driver

provides a complete system solution that enables a

small form factor, low power, and high image-quality

displays.

Device Information

PART NUMBERPACKAGE

(1)

PACKAGE

SIZE

DLP160CPFQT (35)13.39mm × 4.97mm × 3.18mm

(1)For more information, see the Mechanical, Packaging, and

Orderable addendum.

Simplified Application

D_P(0)

D_N(0)

D_P(1)

D_N(1)

DLPC3421

Display Controller

D_P(2)

D_N(2)

D_P(3)

D_N(3)

DCLK_P

DCLK_N

LS_WDATA

LS_CLK

LS_RDATA

600 MHz

SubLVDS

DDR

Interface

DMD_DEN_ARSTZ

DLP160CP DMD

DigitalMicromirrorDevice

VOFFSET

VBIAS

VRESET

VDDI

VDD

VSS

DLPA200x/

DLPA3000

Power Management

120 MHz

SDR

Interface

DLP160CP

DLPS228D – OCTOBER 2021 – REVISED OCTOBER 2024

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
