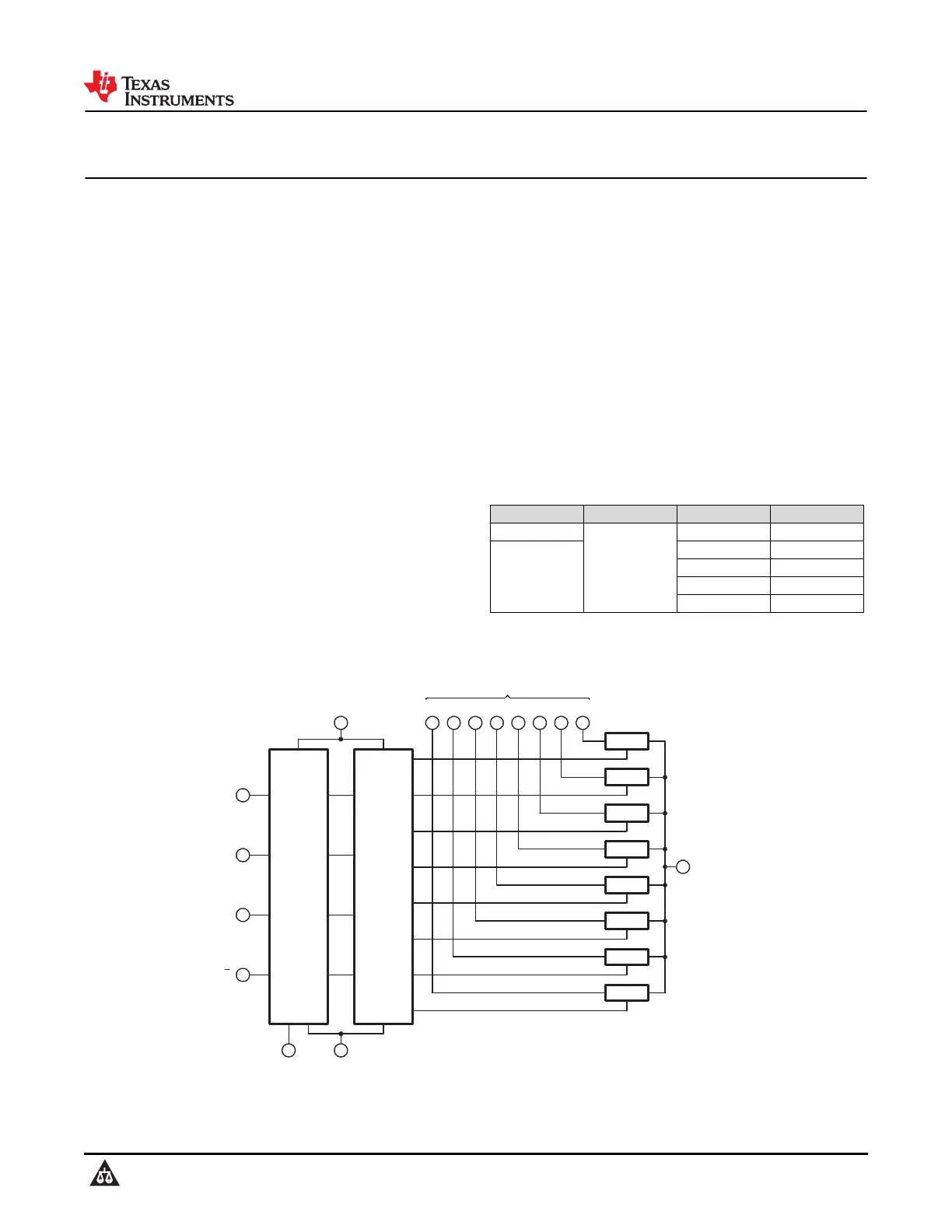

CDx4HC405x, CD4HCT405x High-Speed CMOS Logic Analog

Multiplexer and Demultiplexer

1 Features

•Wide analog input voltage range: ±5V maximum

•Low ON-resistance:

–70Ω typical (V

CC

– V

EE

= 4.5V)

–40Ω typical (V

CC

– V

EE

= 9V)

•Low crosstalk between switches

•Fast switching and propagation speeds

•Break-before-make switching

•Wide operating temperature range:

–40°C to +125°C

•Operation control voltage: 4.5V to 5.5V

•Switch voltage: 0V to 10V

•Direct LSTTL input logic compatibility

V

IL

= 0.8V maximum, V

IH

= 2V minimum

•CMOS input compatibility

I

I

≤ 1µA at V

OL

, V

OH

2 Applications

•Digital radio

•Signal gating

•Factory automation

•Televisions

•Appliances

•Programmable logic circuits

•Sensors

3 Description

The CDx4HC405x and CDx4HCT405x device is a

digitally controlled analog switch that uses silicon

gate CMOS technology to achieve operating speeds

similar to LSTTL with the low-power consumption of

standard CMOS integrated circuits.

This analog multiplexer and demultiplexer controls

analog voltages that may vary across the voltage

supply range (for example, V

CC

to V

EE

). It is a

bidirectional switch that allows any analog input to be

used as an output and vice versa. The switch has low

ON resistance and low OFF leakages. In addition, this

device has an enable control that, when high, disables

all switches to their OFF state.

Device Information

PART NUMBERT

A

PACKAGE

(1)

PACKAGE SIZE

(2)

CD54HCx405x

-55°C to 125°C

J (CDIP, 16)19.56mm × 6.92mm

CD74HCx405x

N (PDIP, 16)19.30mm × 6.35mm

D (SOIC, 16)9.9mm × 3.9mm

NS (SOP, 16)10.3mm × 5.3mm

PW (TSSOP, 16)5mm × 4.4mm

(1)For more information, see Section 11.

(2)The package size (length × width) is a nominal value and

includes pins, where applicable.

TG

TG

TG

TG

TG

TG

TG

3

A

COMMO

N

OUT/IN

BINARY

TO

1 OF 8

DECODER

WITH

ENABLE

11

10

9

6E

S

2

S

1

S

0

LOGIC

LEVEL

CONVERSION

87

GNDV

EE

16

V

CC

131415121524

AAAAAAAA

76543210

CHANNELIN/OUT

TG

Functional Diagram of HCT4051

CD54HC4051, CD74HC4051, CD54HCT4051, CD74HCT4051, CD54HC4052, CD74HC4052,

CD54HCT4052, CD74HCT4052, CD54HC4053, CD74HC4053, CD54HCT4053, CD74HCT4053

SCHS122O – NOVEMBER 1997 – REVISED JANUARY 2026

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
