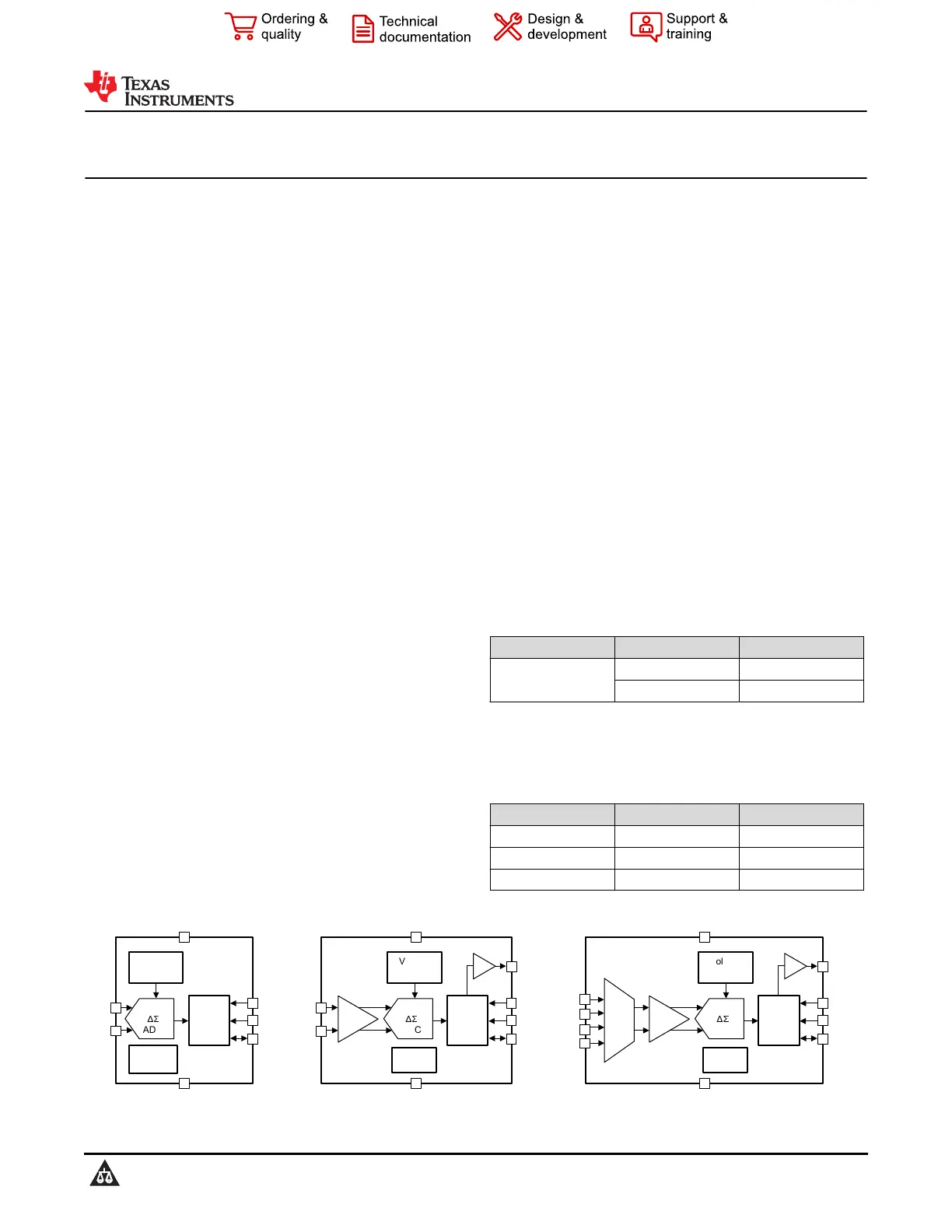

ADS101x-Q1 Automotive, Low-Power, I

2

C-Compatible, 3.3-kSPS, 12-Bit ADCs

With Internal Reference, Oscillator, and Programmable Comparator

1 Features

•AEC-Q100 qualified for automotive applications:

–Temperature grade 1: –40°C to +125°C, T

A

•Functional Safety-Capable

–Documentation available to aid functional safety

system design

•Noise-free resolution: 12 bit

•Wide supply range: 2.0 V to 5.5 V

•Low current consumption: 150 μA

(continuous-conversion mode)

•Programmable data rate:

128 SPS to 3.3 kSPS

•Single-cycle settling

•Internal low-drift voltage reference

•Internal oscillator

•I

2

C interface: Four pin-selectable addresses

•Family of devices:

–ADS1013-Q1: 1 single-ended (SE) or

differential input (DE)

–ADS1014-Q1: 1 single-ended or differential

input with comparator and PGA

–ADS1015-Q1: 4 single-ended or 2 differential

inputs with comparator and PGA

2 Applications

•Camera modules without processing

•Automotive center information displays

•Automotive cluster displays

•General-purpose voltage and current monitoring

3 Description

The ADS1013-Q1, ADS1014-Q1, and ADS1015-Q1

(ADS101x-Q1) are precision, low-power, 12-bit,

I

2

C-compatible, analog-to-digital converters (ADCs)

offered in VSSOP-10 and UQFN-10 packages. The

ADS101x-Q1 incorporate a low-drift voltage reference

and an oscillator. The ADS1014-Q1 and ADS1015-

Q1 also incorporate a programmable gain amplifier

(PGA) and a digital comparator. These features, along

with a wide operating supply range, are useful for

power- and space-constrained, sensor measurement

applications.

The ADS101x-Q1 perform conversions at data

rates up to 3300 samples per second (SPS).

The PGA offers input ranges from ±256 mV to

±6.144 V, allowing precise large- and small-signal

measurements. The ADS1015-Q1 features an input

multiplexer (MUX) that allows two differential or four

single-ended input measurements. Use the digital

comparator in the ADS1014-Q1 and ADS1015-Q1 for

under- and overvoltage detection.

Package Information

PART NUMBERPACKAGE

(1)

PACKAGE SIZE

(2)

ADS101x-Q1

DGS (VSSOP, 10)3 mm × 4.9 mm

NKS (UQFN, 10)2 mm × 1.6 mm

(1)For all available packages, see the package option

addendum at the end of the data sheet.

(2)The package size (length × width) is a nominal value and

includes pins, where applicable.

Device Information

PART NUMBERINPUT CHANNELSFEATURES

(1)

ADS1013-Q11 DE (1 SE)—

ADS1014-Q11 DE (1 SE)PGA, comparator

ADS1015-Q12 DE (4 SE)PGA, comparator

(1)See the Device Comparison Table for details.

Voltage

Reference

Oscillator

SCL

SDA

ADDR

ADS1013-Q1

AIN1

GND

AIN0

VDD

I

2

C

Interface

12-Bit



ADC

ADS1014-Q1

Oscillator

Comparator

ALERT/

RDY

PGA

ADS1015-Q1

AIN0

AIN1

AIN2

AIN3

AIN1

AIN0

MUX

SCL

SDA

ADDR

I

2

C

Interface

12-Bit



ADC

Voltage

Reference

Oscillator

Comparator

ALERT/

RDY

PGA

SCL

SDA

ADDR

I

2

C

Interface

12-Bit



ADC

Voltage

Reference

GND

VDD

GND

VDD

Simplified Block Diagrams

ADS1013-Q1, ADS1014-Q1, ADS1015-Q1

SBAS511E – JULY 2010 – REVISED JULY 2023

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
