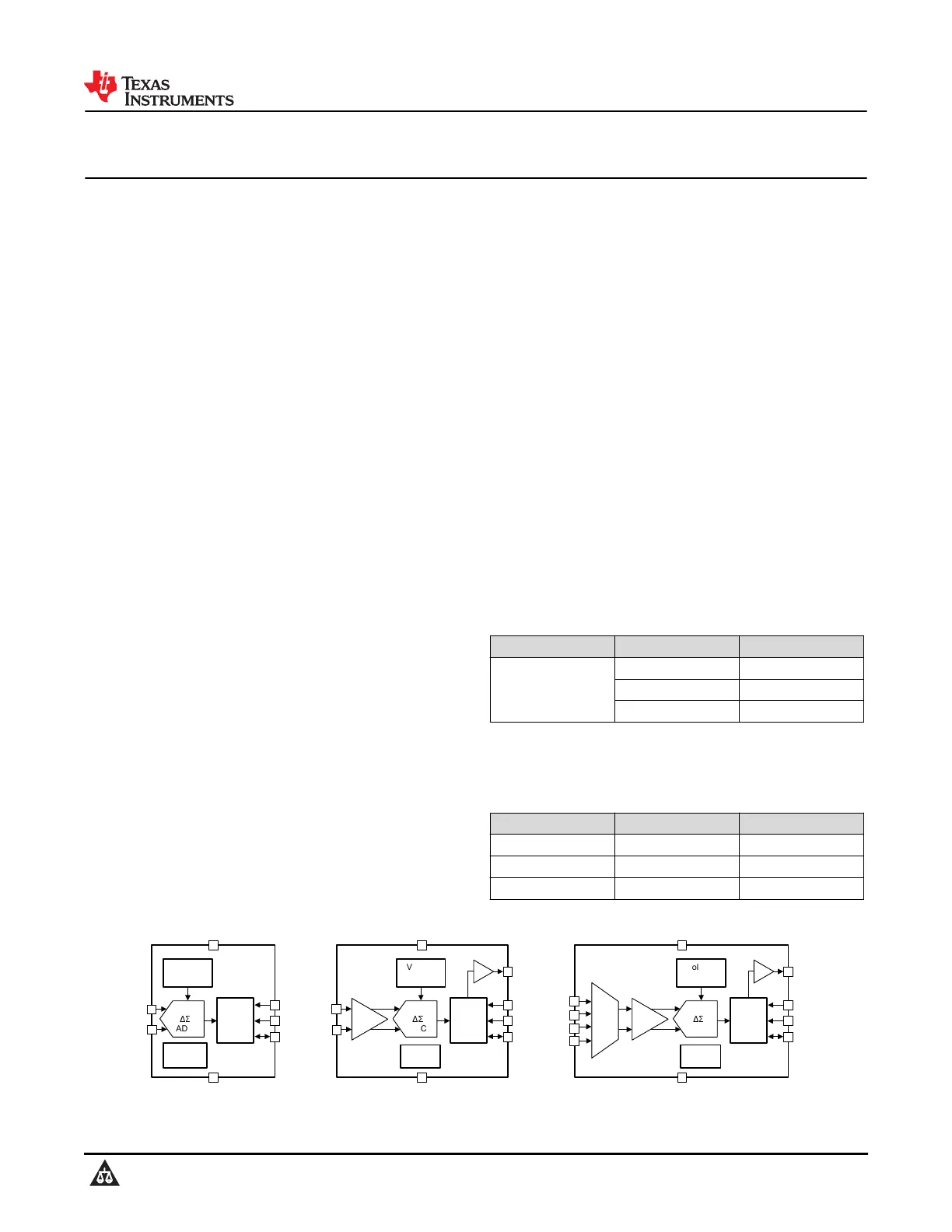

ADS101x Ultra-Small, Low-Power, I

2

C-Compatible, 3.3kSPS, 12-Bit ADCs

With Internal Reference, Oscillator, and Programmable Comparator

1 Features

•Ultra-small packages:

–X2QFN: 1.5mm × 2mm × 0.4mm

–SOT: 2.9mm × 2.8mm × 0.6mm

•Noise-free resolution: 12 bits

•Wide supply range: 2.0V to 5.5V

•Low current consumption: 150μA

(continuous-conversion mode)

•Programmable data rate:

128SPS to 3.3kSPS

•Single-cycle settling

•Internal low-drift voltage reference

•Internal oscillator

•I

2

C interface: Four pin-selectable addresses

•Operating temperature range:

–40°C to +125°C

•Family of devices:

–ADS1013: 1 single-ended (SE) or differential

(DE) input

–ADS1014: 1 single-ended or differential input

with comparator and PGA

–ADS1015: 4 single-ended or 2 differential

inputs with comparator and PGA

2 Applications

•Portable instrumentation

•Battery voltage and current monitoring

•Temperature measurement systems

•Consumer electronics

•Factory automation and process control

3 Description

The ADS1013, ADS1014, and ADS1015 (ADS101x)

are precision, low-power, 12-bit, I

2

C-compatible,

analog-to-digital converters (ADCs) offered in a

leadless X2QFN-10, a SOT-10, and a VSSOP-10

package. The ADS101x incorporates a low-drift

voltage reference and an oscillator. The ADS1014

and ADS1015 also incorporate a programmable gain

amplifier (PGA) and a digital comparator. These

features, along with a wide operating supply range,

are useful for power- and space-constrained, sensor

measurement applications.

The ADS101x perform conversions at data rates

up to 3300 samples per second (SPS). The PGA

offers input ranges from ±256mV to ±6.144V, allowing

precise large- and small-signal measurements. The

ADS1015 features an input multiplexer (MUX) that

allows two differential or four single-ended input

measurements. Use the digital comparator in the

ADS1014 and ADS1015 for under- and overvoltage

detection.

Package Information

PART NUMBERPACKAGE

(1)

PACKAGE SIZE

(2)

ADS101x

RUG (X2QFN, 10)1.5mm × 2mm

DYN (SOT, 10)2.9mm × 2.8mm

DGS (VSSOP, 10)3mm × 4.9mm

(1)For more information, see the Mechanical, Packaging, and

Orderable Information.

(2)The package size (length × width) is a nominal value and

includes pins, where applicable.

Device Information

PART NUMBERINPUT CHANNELSFEATURES

(1)

ADS10131 DE (1 SE)—

ADS10141 DE (1 SE)PGA, comparator

ADS10152 DE (4 SE)PGA, comparator

(1)See the Device Comparison Table for details.

Voltage

Reference

Oscillator

SCL

SDA

ADDR

ADS1013

AIN1

GND

AIN0

VDD

I

2

C

Interface

12-Bit



ADC

ADS1014

Oscillator

Comparator

ALERT/

RDY

PGA

ADS1015

AIN0

AIN1

AIN2

AIN3

AIN1

AIN0

MUX

SCL

SDA

ADDR

I

2

C

Interface

12-Bit



ADC

Voltage

Reference

Oscillator

Comparator

ALERT/

RDY

PGA

SCL

SDA

ADDR

I

2

C

Interface

12-Bit



ADC

Voltage

Reference

GND

VDD

GND

VDD

Simplified Block Diagrams

ADS1013, ADS1014, ADS1015

SBAS473F – MAY 2009 – REVISED JANUARY 2025

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
