Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 03/12/2014

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1x SDI to HDMI Adapter

• 1x Mounting bracket assembly (attached)

• 1x Universal Power Adapter (NA/UK/EU/)

• 1x Instruction manual

System Requirements

• SDI video source (Security camera, broadcasting equipment Etc.)

• HDMI Display Device (e.g. Projector/Television Etc.)

• M/M HDMI Video Cable

• Up to 2 SDI M/M Video Cables

SDI2HD

SDI to HDMI® Converter w/ 3G-SDI Support

Installation

1. Ensure your SDI source device and HDMI display device are

powered o.

2. Connect the SDI input on the SDI2HD to the SDI output port on

your SDI source device using an SDI video cable (not included).

3. Connect each of the HDMI output on the SDI2HD to HDMI input

on the HDMI Display device.

4. Power on the HDMI display device followed by your SDI

video source.

5. (optional) If you would like to run your SDI source to an additional

SDI device. Run an SDI cable from the SDI output on the SDI2HD

to your SDI device.

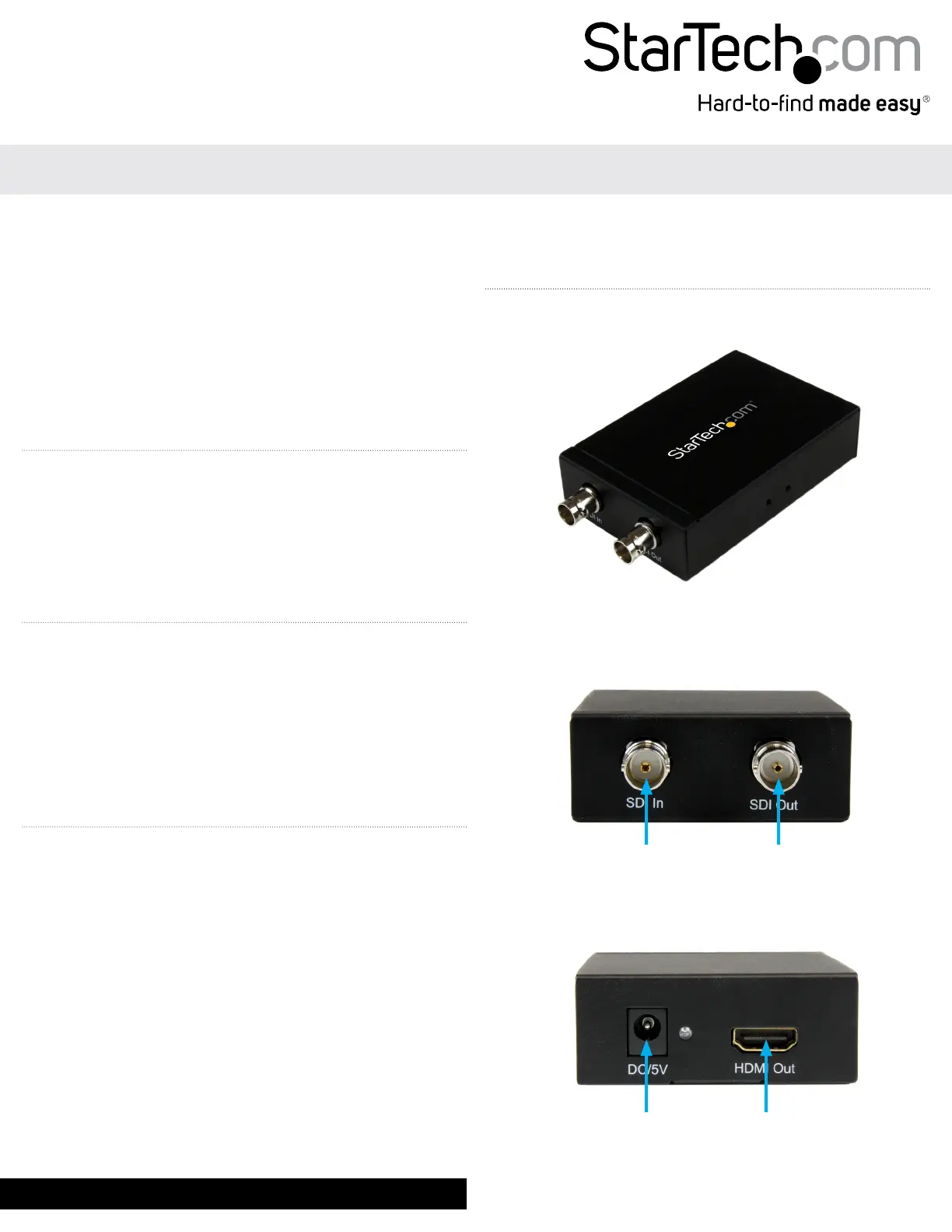

Product Overview

Front View

Side 1

Side 2

Power adapter

port

HDMI

output

SDI inputSDI output

Note: The SDI adapter will not work on devices with resolution

outputs 480p or lower, such as DVD players.

Product specificaties
