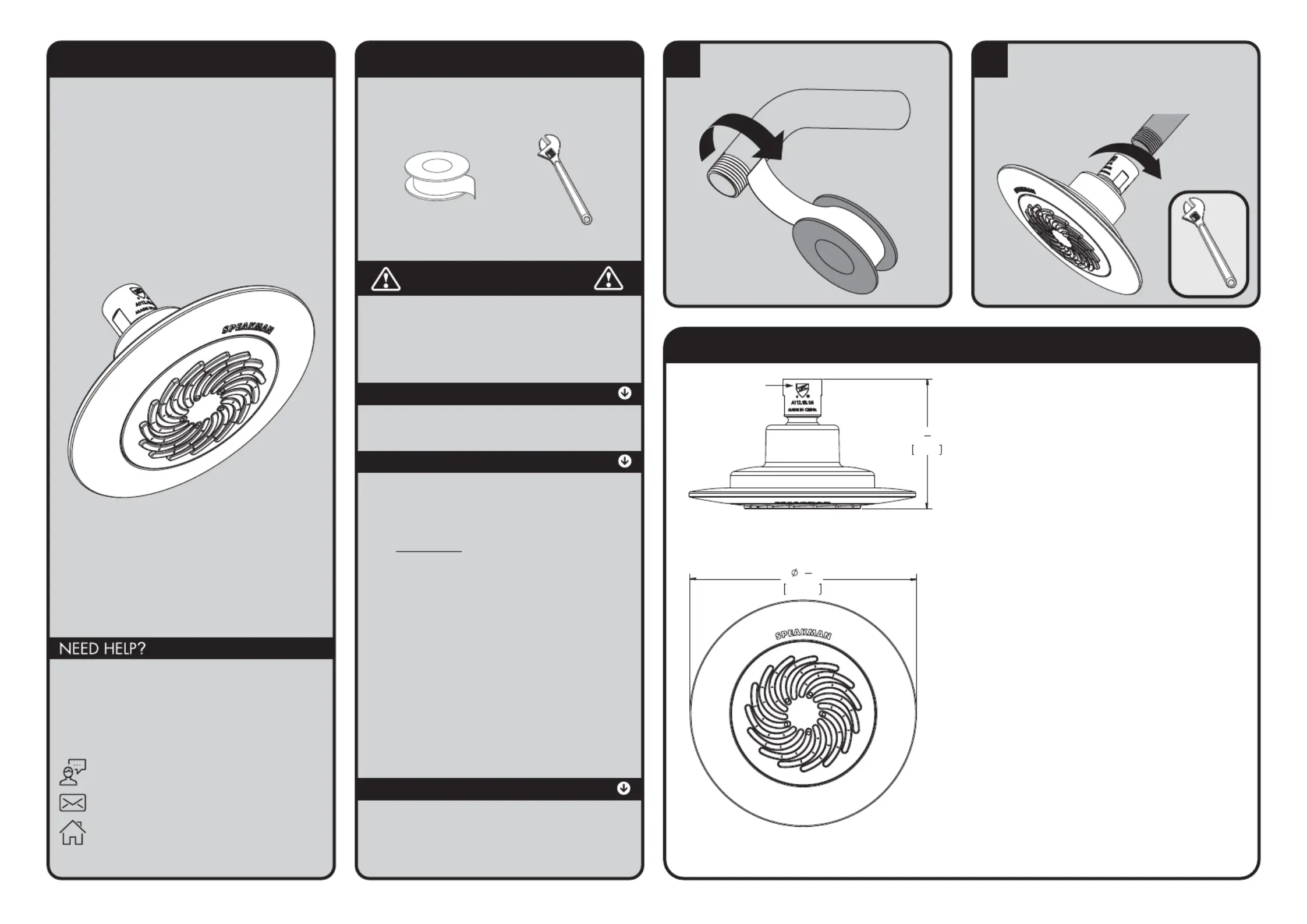

INSTRUCTIONS FOR MODELS

92-S-4000-04

For additional assistance or service please contact:

SPEAKMAN

®

Company

400 Anchor Mill Road

New Castle, DE 19720

800-537-2107

customerser[email protected]

www.speakman.com

S-4000 -E2 -E175 -E15

S-4001 -E2 -E175 -E15

S-4002 -E2 -E175 -E15

TOOLS AND SUPPLIES

IMPORTANT

SAFETY TIPS

Cover your drain to prevent loss of parts.

MAINTENANCE

WARRANTY

Additional warranty information can be found at:

www.speakman.com

Adjustable

Wrench

Be sure to read instructions thoroughly before

beginning installation. Do not overtighten any

connections or damage may occur.

Periodic cleaning using a mild soap and warm water

will help keep your Showerhead's appearance in its

original condition.

For best results, dry immediately with a soft, clean

cloth. DO NOT USE harsh and/or abrasive cleaners.

In certain water conditions, mineral deposits may

form. To remove these deposits, it is recommended

that you soak the shower head in a solution of 2 parts

vinegar to 1 part water for one hour. Rinse thoroughly

with fresh water. Brush off any remaining mineral

deposits from the spray channels.

Thread Seal

Tape

(INCLUDED)

1

Apply Thread Seal Tape to the outlet side

of shower arm in a clockwise direction.

2

Thread Showerhead onto shower arm by

turning it in a clockwise direction. Tighten

with adjustable wrench. Turn water supply

on and check for leaks.

ROUGH IN DIMENSIONS

2

5

1

"

140mm

3

1

8

"

80mm

DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.

Inlet:

½” NPT Female

Standard Model Flow Data:

Max Flow Rate: 2.5 gpm (9.5 L/min)

FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED

AT 7.6 L/MIN (2.0 GPM) OR LESS.

E2 Model Flow Data:

Max. Flow Rate: 2.0 gpm (7.6 L/min)

Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi

FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED

AT 6.6 L/MIN (1.75 GPM) OR LESS.

E175 Model Flow Data:

Max. Flow Rate: 1.75 gpm (6.6 L/min)

Min. Flow Rate: 1.3 gpm (4.9 L/min) @ 45psi

FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED

AT 5.7 L/MIN (1.5 GPM) OR LESS.

E15 Model Flow Data:

Max. Flow Rate: 1.5 gpm (5.7 L/min)

Min. Flow Rate: 1.1 gpm (4.2 L/min) @ 45psi

FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED

AT 5.2 L/MIN (1.37 GPM) OR LESS.
