System Type

4”, full-range, in-ceiling, raw frame, sealed (20 W transformer for

25/70.7/100 V or transformer bypass)

Impedance (Nominal)

1

8 Ω

Sensitivity dB @ 2.83 V / 1 M

88.5 dB

Sensitivity dB @ 1 W / 1 M

2

88.5 dB

Frequency Response (±3 dB)

3

155 Hz - 22 kHz

Frequency Response (±10 dB)

3

71 Hz - 22 kHz

Max. Program Power

4

40 W

Max. Continuous Power RMS

5

20 W

Max. Power SPL @ 1 M

6

101.5 dB

Coverage Angle (±6 dB @ 2 kHz)

145°

Coverage Angle (±6 dB @ 10 kHz)

53°

Coverage Angle (Avg. from 2-10 kHz)

110°

Directivity Factor (Q)

4.9 (averaged 100 Hz - 10 kHz) | 4.6 (2 kHz)

Directivity Index (DI)

5.7 dB (averaged 100 Hz - 10 kHz) | 6.6 dB (2 kHz)

Tap Selector

Five-position rotary switch with transformer bypass position

Transducer: Full-Range Driver

102 mm (4”) treated paper cone, cloth surround

Low-Frequency Voice Coil

20 mm | 0.79”

Enclosure Material

Injection molded ABS baffle, separate back can

Grille

White metal grille (AC-GRL-RF41)

Inputs

Spring terminals

Colors

White only

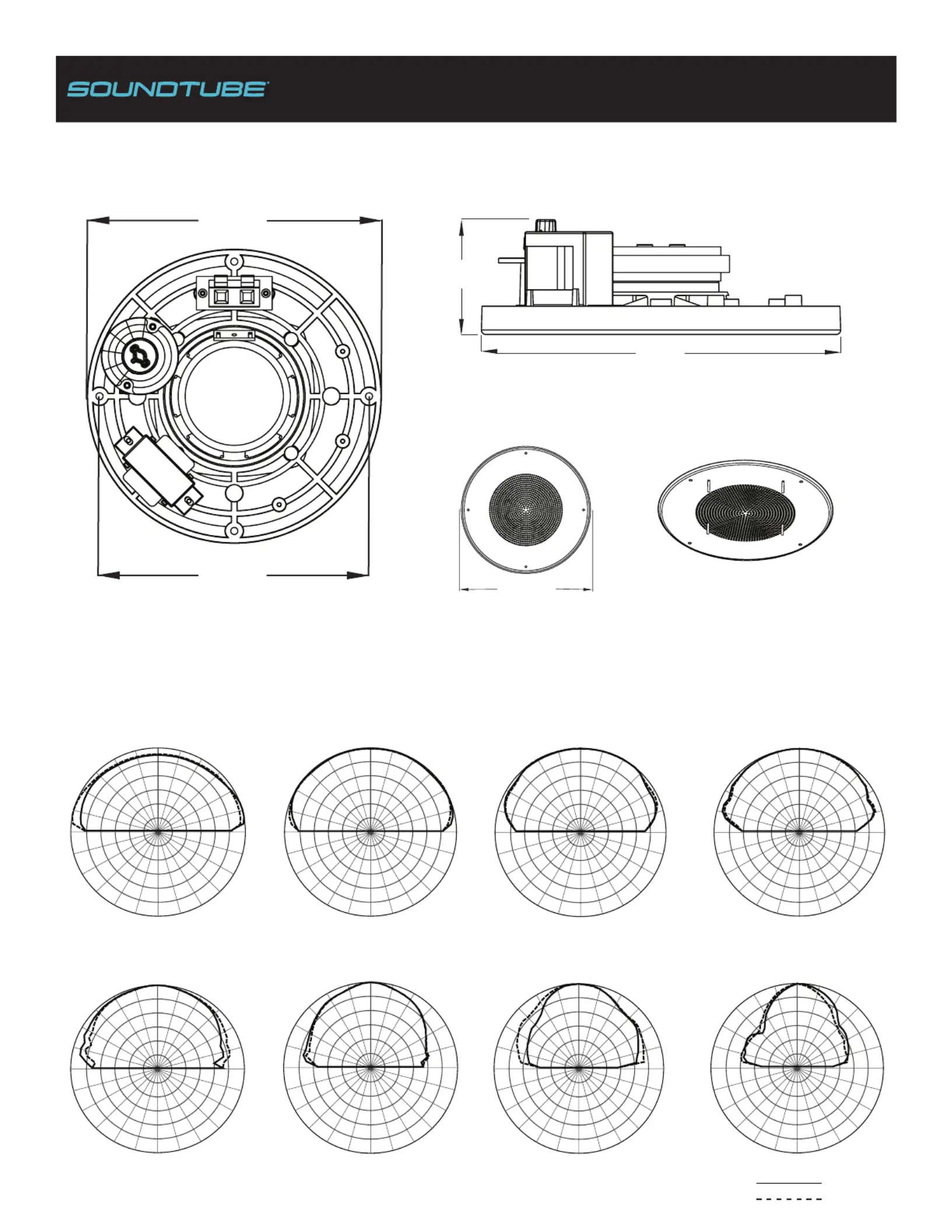

Diameter

209.8 mm | 8.3”

Overall Height

68.83 mm | 2.71”

Visible Diameter

320 mm | 12.6”

Visible Height

6.4 mm | 0.3”

Mounting Hole Diameter

192 mm | 7.56”

Weight

1.6 kg | 3.5 lbs

Optional Accessories

White metal grille (AC-GRL-RF41)

Packaging

One per box

Certications

CE, RoHS

Description

The RF41-20 is a 4”, full-range, blind-mount, in-

ceiling speaker which delivers true high-efciency

and performance across the operating bandwidth.

The full-range driver design delivers maximum

frequency response (71 Hz - 22 kHz, ±10 dB) in a

compact design. Mounting hardware is included and

features fast and easy retrot connections. For easy

ordering, stocking, and installation, the RF41-20

includes a ve-position tap switch for 25, 70.7, and

100 V applications with a transformer bypass position.

Grilles are optional and come in white only.

Features

• One full-range 4” (102 mm) treated ber woofer

with cloth surround.

• Easy-access ve-position tap switch for

25/70.7/100 V and transformer bypass position

plus spring terminals allow for rapid ordering,

stocking, and installation.

• Engineered for installation with limited plenum

space or retrot applications.

• Reduced amplication costs and maximum

efciency with 88.5 dB sensitivity and 8 Ω

impedance.

• Superior voice intelligibility with an average

coverage angle of 110° (2-10 kHz,

independently veried).

• Fits standard 8” back cans for retrots.

• High-quality white paint nish grille.

• Optional accessories: white metal grille (AC-GRL-

RF41) sold only in packs of 4.

1

Impedance listed per IEC 60268-5 with a minimum less than

80% the nominal impedance

2

1 W/1 M sensitivity determined using nominal impedance

3

Frequency response measured in half or full space as dictated

by speaker mounting conguration

4

Max program power is 3 dB above max continuous power

5

Continuous power rating, EIA-426-B test

6

Max output based on max continuous power

RF41-20 PRODUCT SPECIFICATIONS

RF41-20

Raw Frame Speaker
