System Type

2-way full range line array (Optional 120 W transformer for

25/70.7/100 V applications)

Impedance (Rated)

1

8 Ω

Sensitivity dB @ 2.83 V/ 1 m

92.0 dB

Sensitivity dB @ 1 W/ 1 m

2

92.0 dB

Frequency Response (±3 dB)

3

100 Hz - 20 kHz

Frequency Response (±10 dB)

3

65 Hz - 22 kHz

Max. Program Power

4

300 W

Max. Continuous Power

5

150 W

Max. SPL dB @ 1 m

6

114 dB

Coverage Angle (±6 dB @ 2 kHz)

174° horizontal | 25° vertical

Coverage Angle (±6 dB @ 10 kHz)

50° horizontal | 20° vertical

Coverage Angle (Avg. 2 to 10 kHz)

180° horizontal | 50° vertical (200-10k)

Tap Selector (Optional)

5-position rotary switch with transformer bypass position

Directivity Factor (Q)

9 (Average 100 Hz - 10 kHz) | 12.1 (2 kHz)

Directivity Index (DI)

12.8 dB (Average 100 Hz - 10 kHz) | 16.2 dB (2 kHz)

Low-Frequency Driver

8 - 76 mm (3”) woofer, polypropylene

High-Frequency Driver

8 - 25.4 mm (1”) titanium dome tweeters

Crossover Frequency

2.4 kHz

Network Type: Low-Pass

12 dB/OCT

Network Type: High-Pass

18 dB/OCT

Enclosure Material

Roto-molded polyethylene plastic

Grille

Painted coated stainless steel

Inputs

Weatherproof SpeakOn

Colors

Green, Black, or White

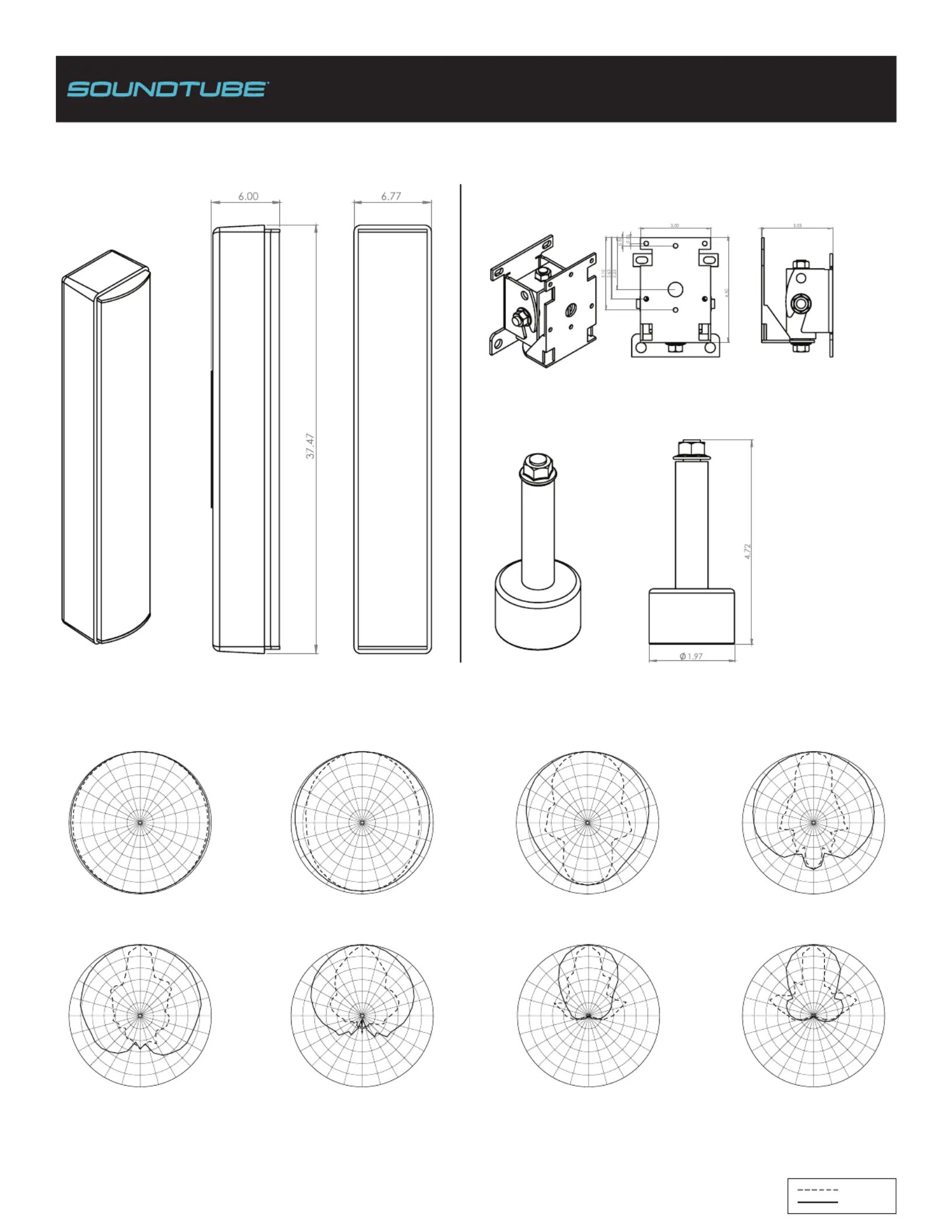

Height

949.3 mm | 37.37”

Width

172.7 mm | 6.8”

Depth

148.5 mm | 5.85”

Depth (Including Bracket)

223.5 mm | 8.8”

Weight

7.80 kg | 17.2 lbs

Shipping Weight

8.5 kg | 18.7 lbs

Included Accessories

Mounting plate and mounting bolts, SpeakOn connector and safety

cable

Optional Accessories

120 W transformer and tap switch

Packaging

1 per box

Certications

CE, RoHS

Description

The SoundTube XT-Spyke is not a typical line array

column loudspeaker. It is an advanced LAPS (Line

Array-Point Source) 2-way design that provides

a very short near-eld extent and robust far-eld

performance. Frequency tapering of low and high

frequency pass bands allows the XT-Spyke to

maintain a more consistent ratio of array height

to radiated wavelength, ensuring a stable vertical

beamwidth that out-performs many other single box

line arrays. Featuring eight 3” woofers and eight 1”

high frequency drivers for extremely smooth high

frequency response, the XT-Spyke achieves superb

coverage in an enclosure measuring only 37.6” x

6.80” x 5.50”.

Features

• Passive, xed length, column line array with 2-way

design.

• Eight 3” (76 mm) polypropylene woofers and eight

1” (25.4 mm) titanium dome tweeter.

• Optional 120 Watt transformer for 25/70.7/100

Volt applications

• Line Array - Point Source (LAPS) technology

provides short, near-eld extent and robust, far-

eld performance

• UV-, scratch-, chlorine- and weather-resistant with

professional-grade components for long-lasting

performance and durability.

• Painted stainless steel grille - custom paintable.

• Available in green, black or white nish.

• Flexible mounting options include surface-mount

and pole-mount.

• Weatherproof SpeakOn connectors allow for fast

connections and easy daisy chaining.

• Included accessories: Stainless steel mounting

plate, mounting bolts and safety cable.

1

Impedance listed per IEC 60268-5 with a minimum less than

80% the nominal impedance

2

1 W/1 M sensitivity determined using nominal impedance

3

Frequency response measured in half or full space as dictated

by speaker mounting conguration

4

Max program power is 3 dB above max continuous power

5

Continuous power rating, EIA-426-B test

6

Max output based on max continuous power

XT-SPYKE PRODUCT SPECIFICATIONS

XT-Spyke

Outdoor Line Array Speaker
