SkyRC S-WAVE's TX58025 FPV video transmitter (Tx) is used for sending video signals from a camera

mounted inside quadcopter to a 5.8GHz receiver (Rx) on the ground. The medium 25mW transmission

power means more pilots can fly together without overpowering each other on close frequencies.

TX58025 use single button, LEDs interface to select and display band/frequency. Five bands with a total

of 40 frequencies in the 5.8GHz spectrum can be selected by user. It also comes a clean pre-wired

harness. The Tx includes a 5V output to power FPV cameras and an on-board microphone to transmit

audio to your receiver.

Red

Black

Yellow

Green

Orange

ToBattery

ToCamera

Input Power Connection

Connect the red and black wire to the battery. Make sure

polarities match! Do NOT exceed the acceptable input

voltage range of 7.4 - 18 volts, which can be achieved

with a 2S-4S lithium-polymer(LiPo) battery.

Camera Connection

Connect the yellow, green and orange wire to the camera’s video signal output.

Yellow wire to video signal output

Green wire to ground

Orange wire to power input

INSTRUCTIONMANUAL

TX58025SK-600108-02

INTRODUCTION

CONNECT TO BATTERY AND CAMERA

Red

7-18V Input

Ground Input

Black

Yellow

Video Input

Ground Output

Green

5V Output

to Camera

Orange

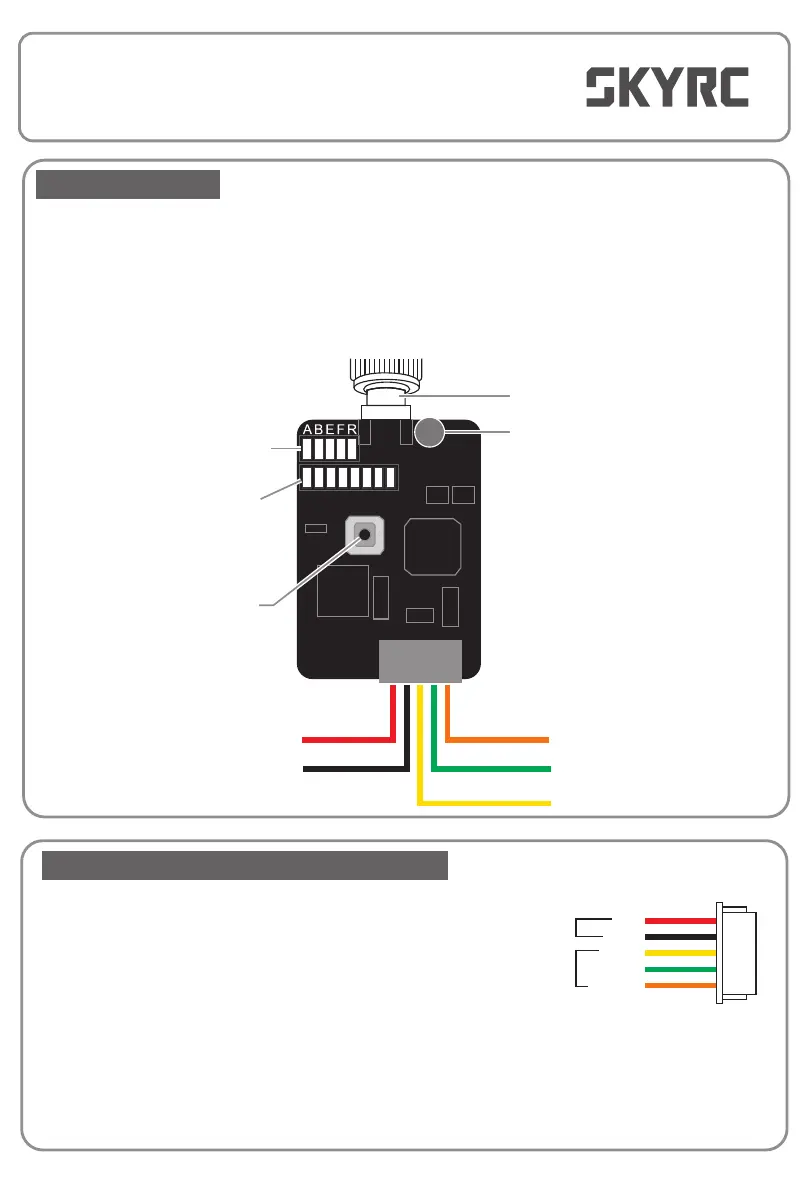

Microphone

SMA Connector

BAND/

CHANNEL

Button

BAND

LED Display

A,B,E,F,R

CHANNEL

LED Display

1,2,3,4,5,6,7,8
