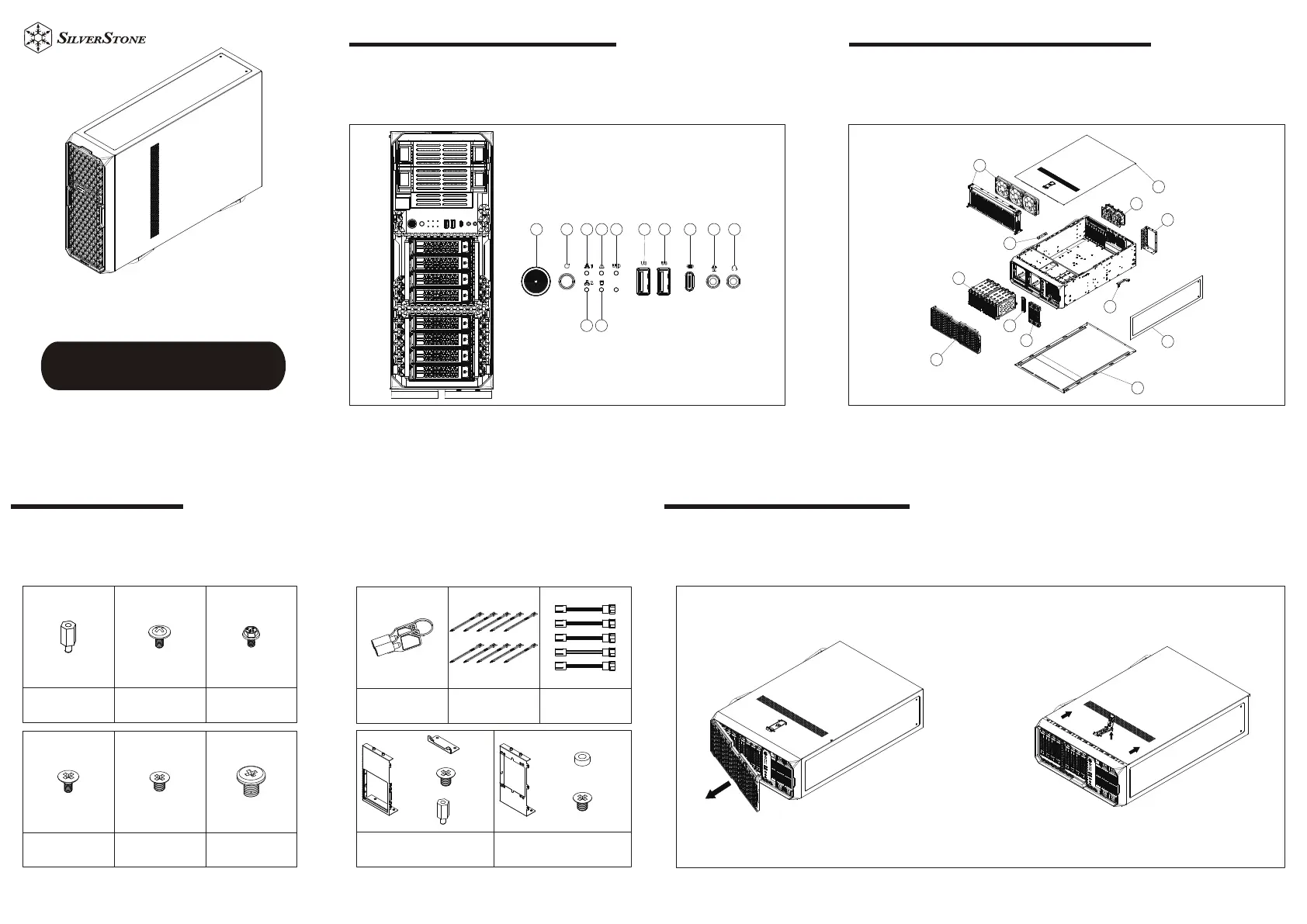

User manual

High-Expandability Professional

Workstation Chassis with 8 hot-swappable

trays & 360mm Radiator Support

WS380-E

FRONT I/O, INDICATORS

1.Power switch/Power LED

2.Reset switch

3.NIC1/NIC2 LED

4.Alarm LED

5.HDD LED

6.UID LED

7.USB3.0 Type-A

8.USB3.0 Type-C

9.Audio

1

234677899

3

5

DISASSEMBLE CHART

1.Front panel

2.Side panel

3.Top panel

4.5.25” bay cover

5.3.5” bay cover

1

2

3

4

2

5

6

7

8

9

10

10

6.Hot-swap 3.5” / 2.5” cage

7.Liquid cooling bracket / 120mm fans x3

8.80mm fans x2

9.ATX/PS2 power supply bracket

10.Graphics card holder bracket

Remove the front panel and detach the lower panel

Open the side panel latch, push backward, and remove the side panel

Front and Side Panel Panel RemovalAccessoriesContent

Motherboard standoffMounting for motherboardMounting for PSU

Mounting for 3.5" HDDMounting for 2.5" SSDMounting for 5.25" ODD

Front Panel KeyCable tiesFan Extension Cable

CRPS 1+1(2U) Power Bracket and

Mounting Screws

Silverstone 2U redundant power

bracket, insulation washers, bracket

screws
