User manual
1.TOP COVER
2.BOTTOM CHASSIS
3.OPTIONAL POWER SUPPLY
4.8CM FANS
5.4BAYS-3.5”/1BAY-2.5”DRIVE CAGE
6.2BAYS-2.5”DRIVE CAGE
7.FRONT PANEL IO AND INDICATORS
8.RACK HANDLES
1. USB 3 TYPE-A p1-x2 ports
2. POWER ON LED
3. HDD ACTIVITY LED
4. LAN1 LED
5. LAN2 LED
6. USB3 TYPE-C
1. Removing the top cover
Front panel
1. Release 2-screws of the top cover on each side
2. Push the top cover backward about 1” and lift it off the chassi
2. 4bays-3.5”/1bays-2.5” HDD cage and cooling fan assembly How to remove the drive cage :
RM45-360
1
1
2
3
4
6
5
7
8

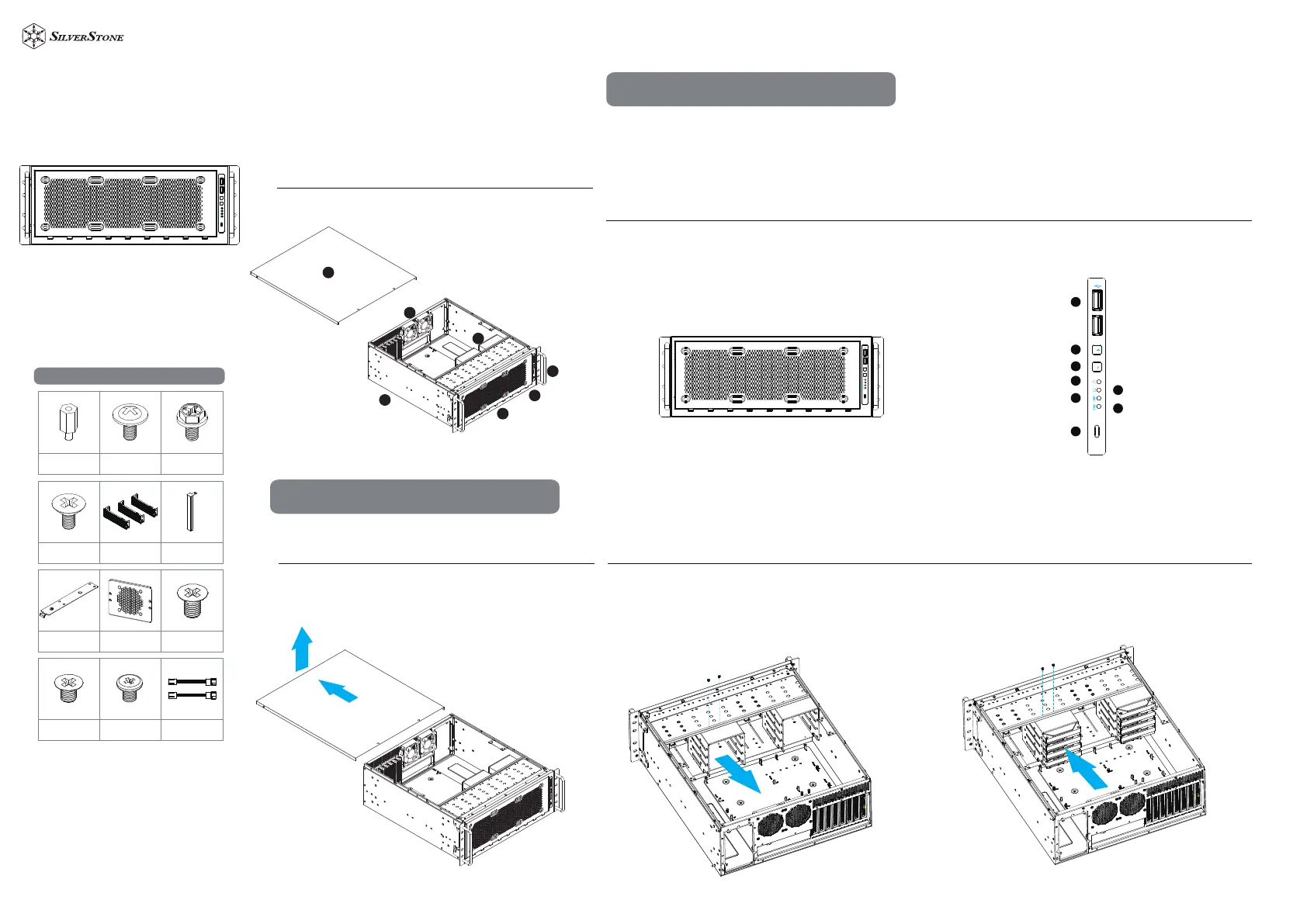

Installation Guide
1. Loose 2 screw and lift off the drive cage.
2. Once hard drive assembled, secure the drive cage back with the same 2-screws.
Motherboard
Standoff
Accessories Content
Motherboard /
5.25" Device Screw
5.25" Guide Rail
Screws
PSU Screw
5.25" Ventilation
Bezel
5.25" Bezel
5.25" Guide Rail x9CRPS Cover
3.5" HDD
2.5" SSD
5.25 VENTILATION
BEZEL
Fan Extension
Cable
4
5
2
6
3
7
1
