Introduction

The HDMI Over Gigabit IP Extender Kit with IR extends

HDMI signal over one Cat5/6 cable up to 330ft.

Features and Benefits

• Extend HDMI signals up to 100m over Cat5e/6

cabling

• Supports video high resolution Full HD 1080p, 1920

x 1080

• IR (Infrared Remote) pass-through enabled

• High Definition Audio (HD) Surround Sound

• Metal housing with mounting mechanism

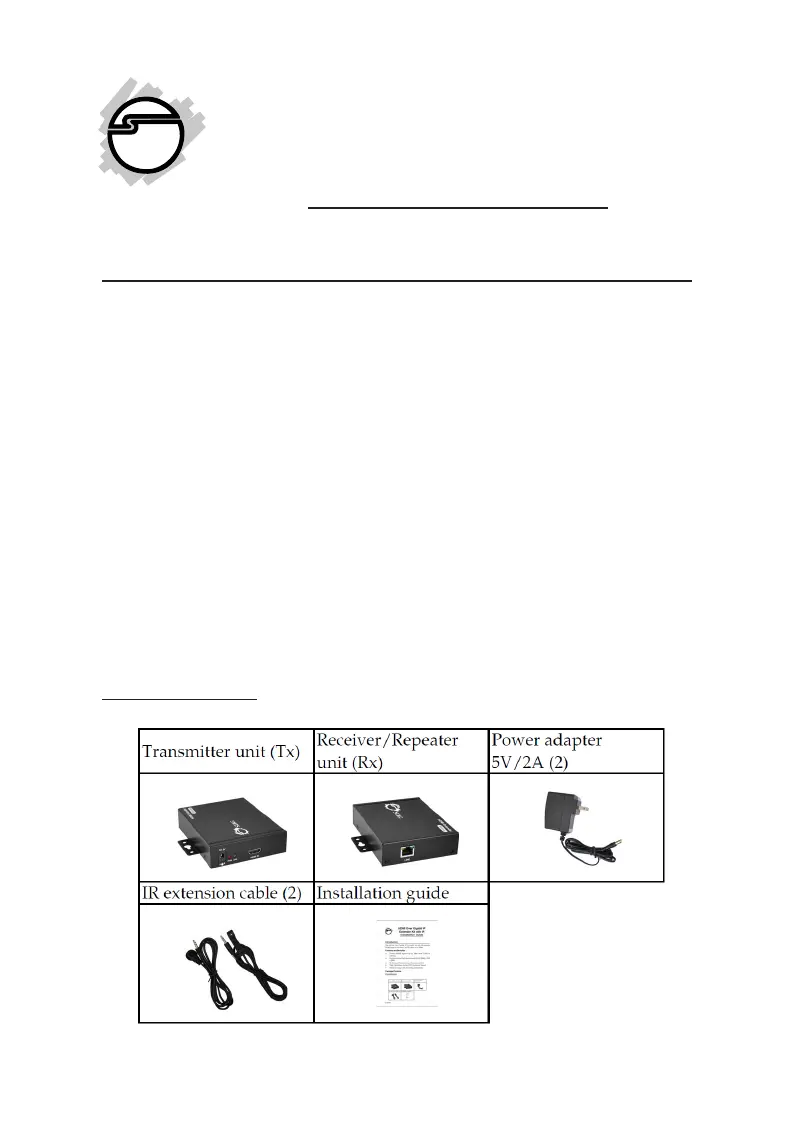

Package Contents

CE-H22811-S1

04-0958A

HDMI Over Gigabit IP

Extender Kit with IR

Installation Guide

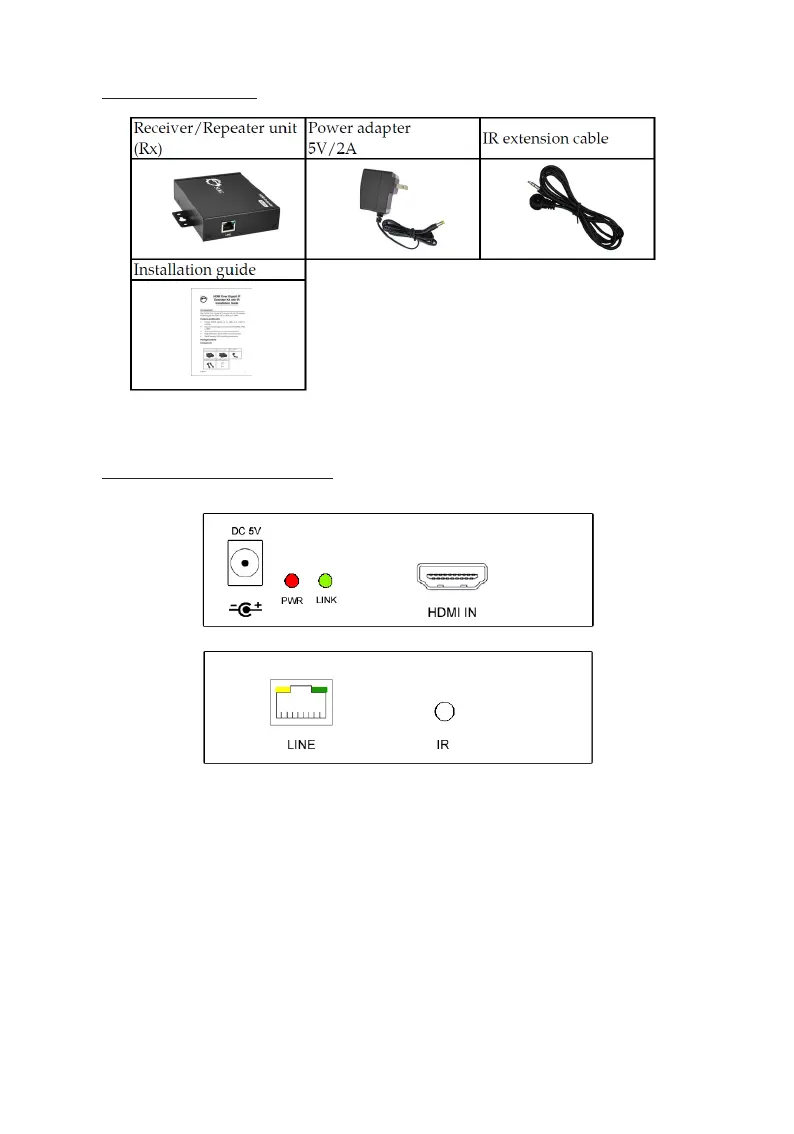

Layout

Transmitter Unit (Tx)

Figure 1: Transmitter side panel

•DC 5V: DC 5V power jack. Plug the included power

adapter here

•PWR: LED indicator for power status. On/Off when

the Transmitter is powered on/off

•LINK: LED indicator for link status. On when the

connection between the Transmitter and Receiver is

established

CE-H22911-S1

•HDMI IN: HDMI signal input port. Connect this

port to your HDMI source device by using an HDMI

cable (not included)

•LINE: Signal output port, connected with Receiver's

LINE port by using a CAT X cable (not included)

•IR: Connect to the included IR blaster cable

Receiver/Repeater Unit (Rx)

Figure 2: Receiver/Repeater side panel

•DC 5V: DC 5V power jack. Plug the included power

adapter here

•IR: Connect to the included IR receiver cable

•PWR: LED indicator for power status. On/Off when

the Receiver/Repeater is powered on/off

•LINK: LED indicator for link status. On when the

connection between Transmitter and Receiver is

established

•HDMI OUT: HDMI signal output port. Connect

this port to the remote HDMI display by using an

HDMI cable (not included)

•LINE: Signal input port, connected with Transmitter's

LINE port by using a CAT X cable (not included)

Product specificaties

Merk:	SIIG
Categorie:	AV extender
Model:	CE-H22811-S1
Kleur van het product:	Zwart
Soort:	AV-zender & ontvanger
LED-indicatoren:	Ja
Bluetooth:	Nee
Stroom:	2 A
Ondersteunde video-modi:	1080i, 1080p, 480p, 720p
Maximum resolutie:	1920 x 1080 Pixels
Inclusief AC-adapter:	Ja
Certificering:	FCC, CE
Aansluiting voor netstroomadapter:	Ja
Duurzaamheidscertificaten:	RoHS
Temperatuur bij opslag:	-20 - 60 °C
Video-ingang:	1
Externe adapter:	Ja
Compatibele producten:	SIIG CE-DP0611-S1 / CE-DP0811-S1/ CE-H22711-S1 / CE-H22911-S1
HDMI in:	1
RJ-45 uitgang ports:	1
Video uit:	1
Aantal HDMI-uitgangen:	1
Receiver afmetingen (B x D x H):	115 x 27.9 x 90.9 mm
RJ-45 invoer ports:	1
Operating voltage:	5 V
Maximaal bereik:	100 m
Wifi:	Nee
AC-ingangsspanning:	100-240 V
AC-ingangsfrequentie:	50 - 60 Hz
Bedrijfstemperatuur (T-T):	0 - 50 °C
Receiver gewicht:	340 g
Transmitter afmetingen (WxDxH):	115 x 27.9 x 90.9 mm
Transmitter gewicht:	350 g
Ondersteundende kabel types:	Cat5e, Cat6
Aansluiting type:	19-pin HDMI, 3.5mm Jack (IR)
