For additional self-service support options and community forums, please visit: www.StarTech.com/support
Revision: January 5, 2026

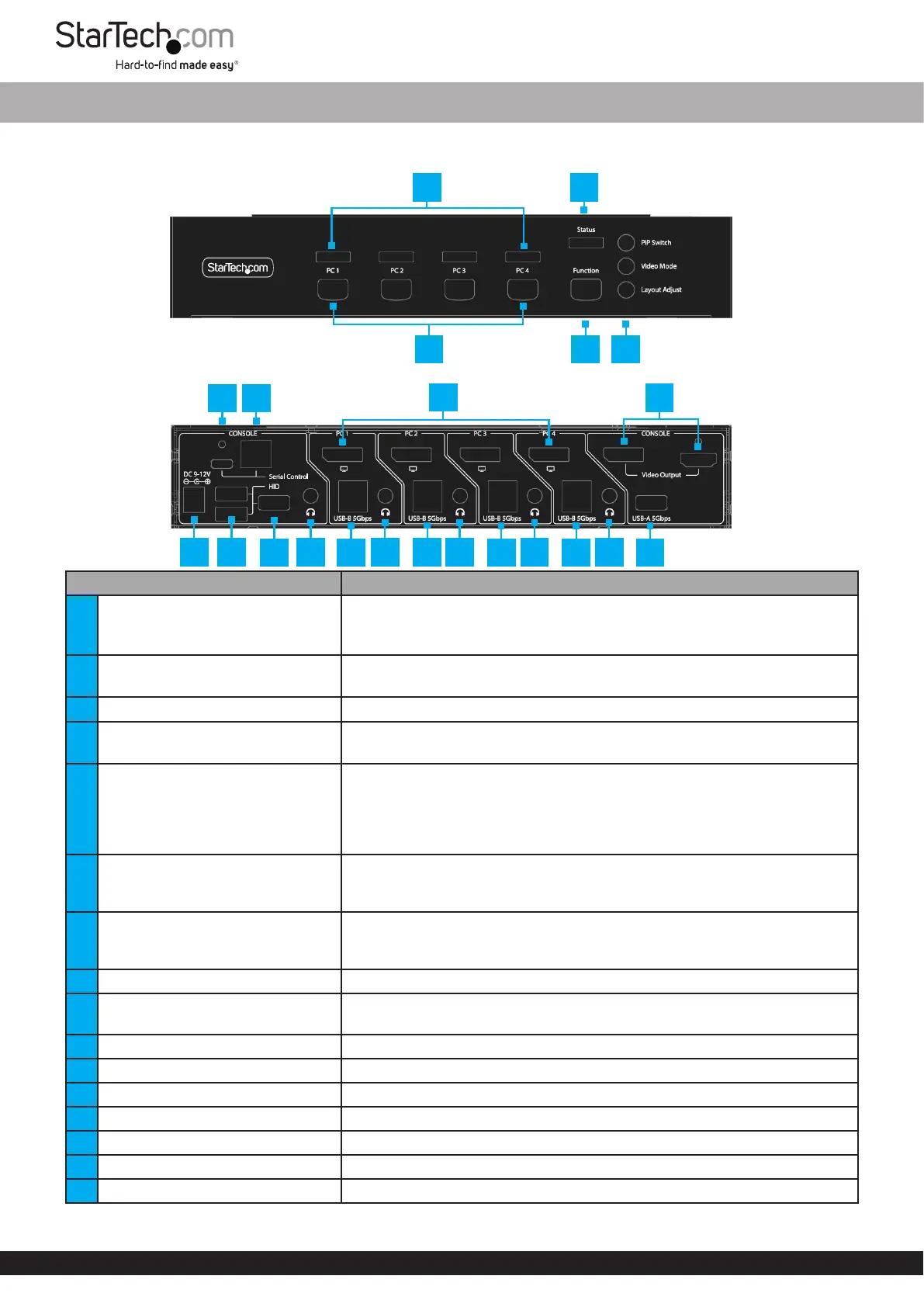

Quick-Start Guide
Product ID
P4AD122M-KVM-SWITCH
Front
Rear
ComponentFunction
1LED Indicators
• Green: Indicates a Host Connection is detected
• Red: Indicates when the PC Port selected for Console View
• Blue: Indicates the PC Port is selected for Picture-in-Picture (PiP) View
2Status LED
• Solid Green: KVM Switch is powered on
• O: KVM Switch is not receiving power
3Push Button Selectors• Press the Button to switch to the corresponding PC Port
4Function Button
• Used for Command Input
• Refer to the Full Manual for more information
5Video Buttons
• PiP Switch: Swap between Console and PiP View
• Video Mode: Press to swap between Full-screen to PiP, or Full-screen to
Quad-View
• Layout Adjust: Press to swap between 1+3 Mode and 3+1 viewing modes,
or change the location of PiP window
6USB Type-C Conguration Port
• Connect to a Host’s USB-A or USB-C Port to control the KVM Switch via
Serial Commands
• Cable not included
7RJ11 Serial Conguration Port
• Connect to a Host’s RS-232 Serial Port to control the KVM Switch via Serial
Commands
• Adapter not included
8DisplayPort Inputs PC 1 - 4• Connect to a DisplayPort Output Port on PC 1 - 4
9Console DisplayPort/HDMI Outputs
• Connect to a DisplayPort or HDMI Monitor
• If two displays are connected at the same time, the output is mirrored
10DC Power Input Port• Connect the supplied Universal Power Adapter to power the KVM Switch
11USB HID Port• Connect a Keyboard and Mouse
12Number Pad Port• Connect a USB Number Pad
13Console Audio Port• Green: Connect an Audio Device (e.g. Speakers or Headphones)
14PC 1 - 4 USB Host Connection• Connect to a USB 5Gbps Port on PCs 1 - 4
15PC 1 - 4 Audio Port• Connect to an Audio Output Port on PC 1 - 4
16USB 5Gbps Hub Port• Connect a USB 5Gbps Peripheral
4-Port DisplayPort KVM with Mouse Roaming and Picture-in-Picture - 4K 60Hz
3
45
1
2
8
76
9
10
13
15
15
1515
14
14
1414
16
11
12
