Rocstor Y10G006-B1 Handleiding

Bekijk gratis de handleiding van Rocstor Y10G006-B1 (2 pagina’s), behorend tot de categorie AV extender. Deze gids werd als nuttig beoordeeld door 9 mensen en kreeg gemiddeld 5.0 sterren uit 3 reviews. Heb je een vraag over Rocstor Y10G006-B1 of wil je andere gebruikers van dit product iets vragen? Stel een vraag

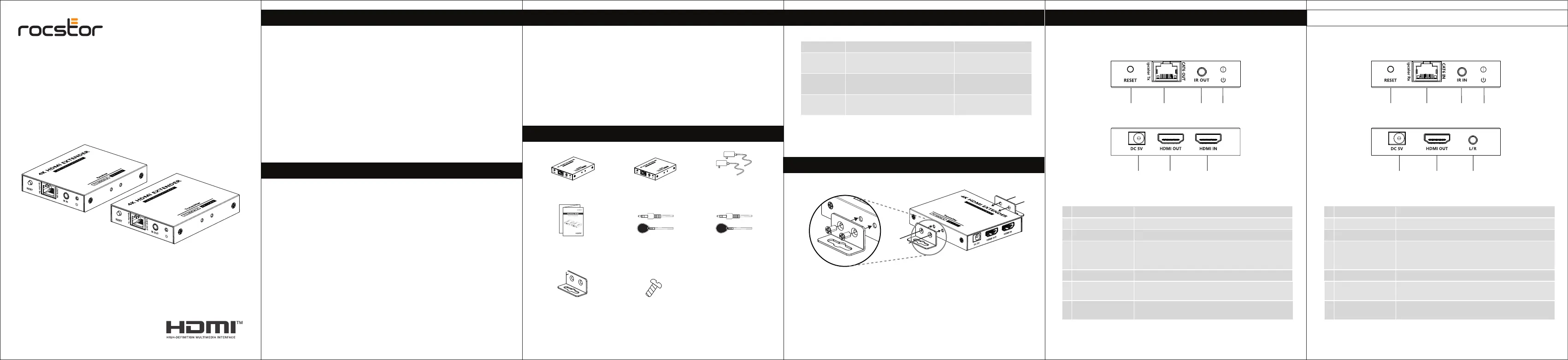

①②③

⑤⑥

Mounting ear x4

Transmitter x1Receiver x1

User manual x1

Screw x10

IR receiver extension

cable x1

IR blaster extension

cable x1

DC5V/1A x2

ItemDescription

Devices with HDMI port

(PC, DVD, NVR, etc.)

Requirement

Signal

source

HDMI cable ≤5m

CAT6/6A/7，following

standard IEEE-568B

TVs, projectors, etc. with

HDMI port

Cable

Display

device

CAT6/6A/7≤70m

HDMI cable ≤5m

DC5V

When there is power and no HDMI signal, the

indicator will flash, when there is HDMI signal,

the indicator will light solid

⑤

⑦

⑥

Power indicator

①

②

RJ45 output

Reset buttonPress to restart the device

Connect with CAT6/6A/7 network cable

③

IR out

Connect with IR blaster extension cable

④

Connect with DC 5V/1A power adapter

HDMI input

HDMI

output

Connect with HDMI source device with

HDMI cable

Connect with local HDMI display device with

HDMI cable

DC5V

When there is power and no HDMI signal, the

indicator will flash, when there is HDMI signal,

the indicator will light solid

⑤

⑦

⑥

Power indicator

①

②

RJ45 input

Reset buttonPress to restart the device

Connect with CAT6/6A/7 network cable

③

IR in

Connect with IR receiver extension cable

④

Connect with DC 5V/1A power adapter

HDMI output

3.5mm stereo

output

Connect with HDMI display device with

HDMI cable

Connect with earphone or speaker

④

⑦

①②③

⑤⑥

④

⑦

13425

Important Safety Instructions:

Introduction

Package Contents

1. To prevent electric shock, please ensure that all apparatus is properly grounded.

2. Do not place this device near or over a radiator or heat register, or

where it is exposed to direct sunlight.

3. Place the device in a well-ventilated area, do not block any ventilation openings.

4. Do not expose this device to rain or place it near water. Any liquid

that goes into the device may cause a failure, re, or electric shock.

5. Do not place the device on an uneven or unstable surface. The device may fall

resulting in a malfunction.

6. Never insert anything metallic into the open parts of this Device. This may

cause a danger of electric shock.

7. If a three-party power supply is used, please ensure that the power supply

specications meet the product requirements.

This is an HDMI point-to-point extender kit, it has zero-latency transmission. The

4K@60Hz HDMI signal can be extended by 230ft (70m)vccccc through CAT6/6A/7

network cable. It supports HDMI loop out, IR passthrough, 3.5mm audio output, etc.

This kit is a reliable, ultra-high-denition video transmission solution, which is widely

used in security monitoring, home theater, broadcasting, training and other elds.

Features

1. Zero-latency transmission.

2. Extend 4K@60Hz HDMI signal up to 70m/230ft over Cat6/6A/7 cable.

3. The receiver supports 3.5mm stereo output.

4. Support HDR10.

5. Support EDID passthrough and auto downscaling.

6. The transmitter supports HDMI loop out.

7. Support IR passthrough.

8. Lightning protection, surge protection, ESD protection.

Install the mounting ears on the unit according to the diagram, and select the wall

mounting position to x it.

Installation RequirementsPanel DescriptionPanel Description

Wall Mounting

Transmitter

®

User Manual

Y10G001-B1

HDMI EXTENDER

Point to Point Extenter

™

TrueReach

Receiver
