106

12

******

SAUTER

CS 25-3P125 kg/250 N

CS 50-3P1

50 kg/500 N

CS 100-3P1

100 kg/1 kN

CS 150-3P1

150 kg/1,5 kN

CS 250-3P1250 kg/2,5 kN

CS 500-3P1

500 kg/5 kN

CS 600-3P1

600 kg/6 kN

CS 750-3P1750 kg/7,5 kN

CS 1000-3P11 t/10 kN

CS 1500-3P1

1.5 t/15 kN

CS 2000-3P1

2 t/20 kN

CS 2500-3P12.5 t/25 kN

CS 5000-3P15 t/50 kN

CS 7500-3P1

7.5 t/75 kN

CS 10000-3P1

10 t/100 kN

CS 15000-3P115 t/150 kN

CS 20000-3P120 t/200 kN

CS 30000-3P1

30 t/300 kN

SAUTER

CS 50-3Q150 kg/500 N

CS 100-3Q1

100 kg/1 kN

CS 150-3Q1

150 kg/1,5 kN

CS 200-3Q1

200 kg/2 kN

CS 300-3Q1300 kg/3 kN

CS 500-3Q1

500 kg/5 kN

CS 750-3Q1

750 kg/7,5 kN

CS 1000-3Q1

1 t/10 kN

CS 1500-3Q11.5 t/15 kN

CS 2000-3Q1

2 t/20 kN

CS 3000-3Q1

3 t/30 kN

CS 5000-3Q15 t/50 kN

CS 6000-3Q16 t/60 kN

CS P2 0,5–7,5 t

CS P2 50–250 kg

*

SAUTER

CS 50-3P250 kg/500 N

CS 100-3P2

100 kg/1 kN

CS 250-3P2

250 kg/2,5 kN

CS 500-3P2

500 kg/5 kN

CS 1000-3P21 t /10 kN

CS 2000-3P2

2 t/20 kN

CS 5000-3P2

5 t/50 kN

CS 7500-3P27.5 t/75 kN

www.sauter.eu · Order Hotline +49 7433 9933 - 0Load Cells

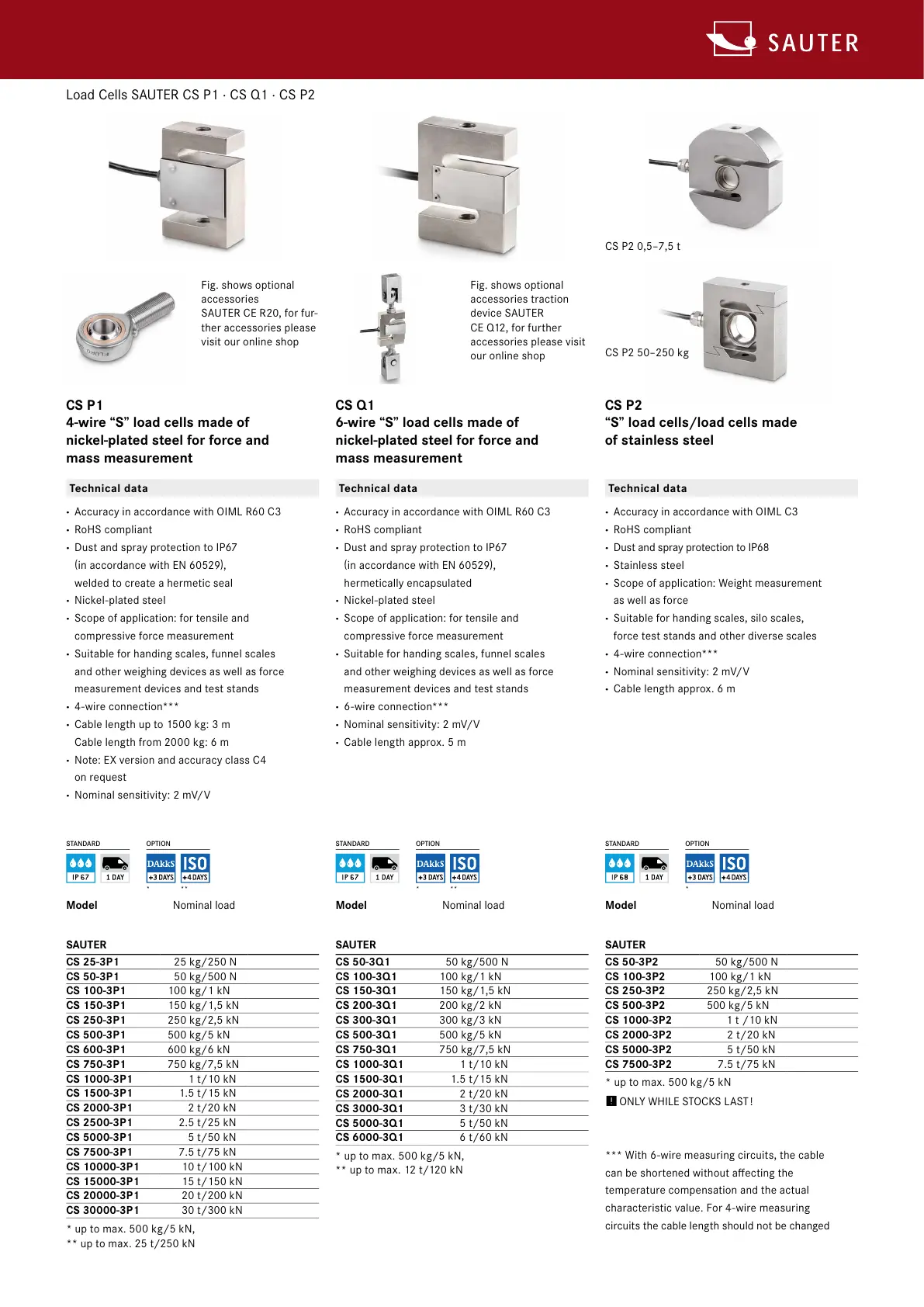

Load Cells SAUTER CS P1 · CS Q1 · CS P2

Model

Nominal load

Model

Nominal load

Technical data

·Accuracy in accordance with OIMLR60C3

·RoHS compliant

·Dust and spray protection to IP67

(

in accordance with EN 60529

)

,

welded to create a hermetic seal

·Nickel-plated steel

·Scope of application: for tensile and

compressive force measurement

·Suitable for handing scales, funnel scales

and other weighing devices as well as force

measurement devices and test stands

·4-wire connection***

·Cable length up to 1500 kg: 3 m

Cable length from 2000 kg: 6 m

·Note: EX version and accuracy class C4

on request

·Nominal sensitivity: 2 mV/V

Technical data

·Accuracy in accordance with OIMLR60C3

·RoHS compliant

·Dust and spray protection to IP67

(

in accordance with EN 60529

)

,

hermetically encapsulated

·Nickel-plated steel

·Scope of application: for tensile and

compressive force measurement

·Suitable for handing scales, funnel scales

and other weighing devices as well as force

measurement devices and test stands

·6-wire connection***

·Nominal sensitivity: 2 mV/V

·Cable length approx. 5 m

CS P1

4-wire “S” load cells made of

nickel-plated steel for force and

mass measurement

CS Q1

6-wire “S” load cells made of

nickel-plated steel for force and

mass measurement

Fig. shows optional

accessories

SAUTER CE R20, for fur-

ther accessories please

visit our online shop

Fig. shows optional

accessories traction

device SAUTER

CE Q12, for further

accessories please visit

our online shop

STANDARDOPTIONSTANDARDOPTION

* up to max. 500 kg/5 kN,

** up to max. 25 t/250 kN

* up to max. 500 kg/5 kN,

** up to max. 12 t/120 kN

*** With 6-wire measuring circuits, the cable

can be shortened without affecting the

temperature compensation and the actual

characteristic value. For 4-wire measuring

circuits the cable length should not be changed

ModelNominal load

Technical data

·Accuracy in accordance with OIML C3

·RoHS compliant

·Dust and spray protection to IP68

·Stainless steel

·Scope of application: Weight measurement

as well as force

·Suitable for handing scales, silo scales,

force test stands and other diverse scales

·4-wire connection***

·Nominal sensitivity: 2 mV/V

·Cable length approx. 6 m

CS P2

“S” load cells/load cells made

of stainless steel

STANDARDOPTION

* up to max. 500 kg/5 kN

ONLY WHILE STOCKS LAST !

Order Hotline: Go to back page of catalogue

SAUTER GmbH · c/o KERN & SOHN GmbH · Ziegelei 1 · 72336 Balingen · Germany · Tel. +49 7433 9933 - 0 · info@sauter.eu · www.sauter.eu

MEASURING TECHNOLOGY & TEST SERVICE 2024
